• Model NO.：OURS-20-12
• Power：50-60Hz
• Voltage：220-380V
• Size：Customized
• Certifcation：ISO9001,ISO14001
• Warranty：1 Year
• After-Sales Service Provided：Engineers Available to Service Overseas
• Transport Package：Carton or Wooden Cases
• Specification：CE
• Trademark：jsours
• Origin：Yangzhou, Jiangsu Province
• HS Code：8424200000
• Production Capacity：100sets,Year

Basic Info.

Model NO. OURS-20-12 Power 50-60Hz Voltage 220-380V Size Customized Certifcation ISO9001,ISO14001 Warranty 1 Year After-Sales Service Provided Engineers Available to Service Overseas Transport Package Carton or Wooden Cases Specification CE Trademark jsours Origin Yangzhou, Jiangsu Province HS Code 8424200000 Production Capacity 100sets/Year

Product Description

Powder Coating Line With Metal Surface Pretreatment Dipping Tank



Size: as per design
Material: SUS304
Features: Quality metal pretreatment systems prepare metal parts for painting, Bath immersion pretreatment, Surface pre-treatment for spray or immersion; Continuous and Stationary Ovens supplier
Price: negotiable
Applications: metal finishing
Clients: supplier / manufacturer / company / factory / distributor / agent / final user
Mini Quantity: 1 set
Supply Ability: 100 sets per year
Port: Shanghai or Yangzhou
Payment Terms: TT, LC, PAYPAL, western union, alipay
Marketing Area: all countries
Products Description:
Chemical cleaning includes removal of dirt, oil and grease, and the oxidation products present on the surface by means of chemicals. The chemicals may be applied by wiping, spraying or dipping. The type of surface preparation depends upon the object shape and base metal.

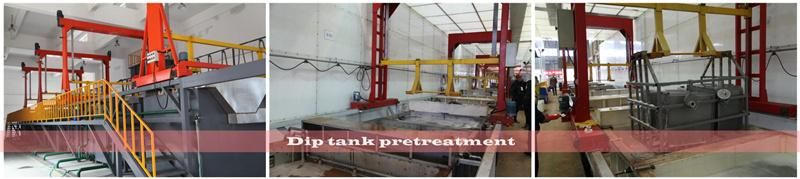

Dip Tank Pretreatment Systems, also called immersion pretreatment are generally used for long & heavy components or lots of small parts in one basket.
Technical parameters:

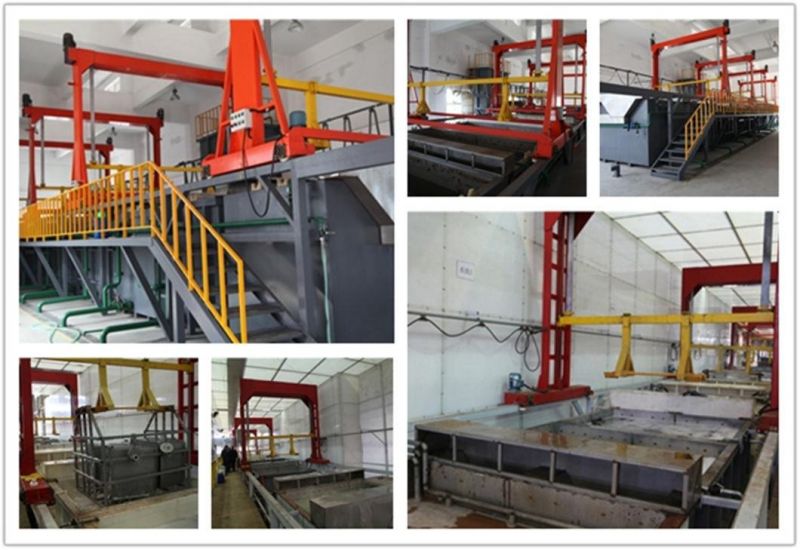

Full Dip Pretreatment System in the picture consists of:
1) Pre-degreasing tank, degreasing tank; a total of 2 tanks
Dimensions: L4000 × W1900 × H2000mm
Material: SUS304 δ3.0mm
2) Rinsing tank (except rinsing after acid washing), neutralization tank, surface conditioning tank, a total of 6 tanks
Dimensions: L4000 × W1900 × H2000mm
Material: SUS304 δ3.0
3) Pickling tank
Dimensions: L4000 × W1900 × H2000mm
Material: PP board δ20mm
4) Phosphate tank
Dimensions: L4000 × W1900 × H2000mm
Material: SUS304 δ3.0
5) Reverse cascade system
Also called back flushing device consists of pickling tank, acid pumps, piping, valves and other components.
6) Hot water rinse tank
Dimensions: L5500 × W1900 × H2000mm
Material: SUS304 δ3.0
7) Oil remover
8) Automatic conveyor system on tank sides
9) Acid mist waste gas treatment equipment

Our company:
OURSCOATING is the expert manufacturer you can never miss.OURSCOATING quantifies the production of standard coating equipment and one-to-one service is our important and special sale method. For special requirements of different customers from different countries, we will design based on workshop size, workpiece size and weight, types of paint, budget, etc. and will solve all the problems from your point of view.
Advantages:
1. More than 10 years' experience in this field
2. Expert technical team composed of experienced engineers and technicians
3. High productivity and less consumption
4. Reasonable price
5. Overall after-sale service

Our service:

1. Purchase Service Ours coating has a specialized and efficiency working team. If you are new on the coating, some pictures or drawings of your products and workshop could be show to us will be appreciated, we will give you specialized suggestion of whole work.

2. Shipping Service Ours coating has a specialized and independent department which just for shipping the buyer's goods. The workers know T/T, L/C Items well. All Exported documents could be made perfectly. Our company cooperates with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.

3. Installation Service Installation Service is available with all our machines. Ours coating will dispatches technician to the Buyer's factory to install and trial operate the equipment.

4. Clients' Training Service Our Company can accept the buyer send their own technician to our factory to learn how to operate machines. Also, training in the installation period is better acceptable.

5. After Sales Service We provide one year of warranty period. Many spare parts will be prepared in the tool box together with machines.
