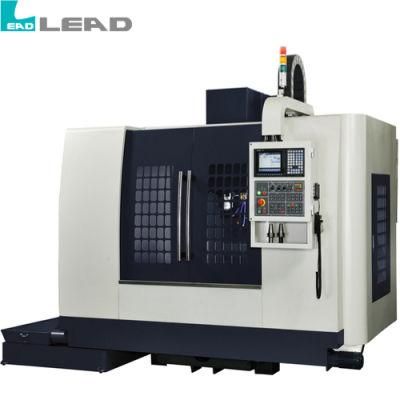

• Model NO.：CMV-850
• X Axis Travel：850
• Y Axis Travel：550
• Z Axis Travel：580
• Max Load of Table：1000kg
• T-Slot：*5*18*100
• Spindle：8000rpm Standard
• Power Consumption：20kVA
• Floor Space：2420*2280*2520
• Machine Weight：6500
• Transport Package：Wooden Case
• Specification：CE,SGS,ISO9001
• Trademark：LEAD
• Origin：China
• Production Capacity：25 Sets, Month

CMV-850TRAVEL
BOX WAYX axis travelmm850Y axis travelmm550Z axis travelmm550Distance from table surface to spindle nosemm120-670TABLE

table areamm900 x 530Max. load of tablekgs1000T-slotmm5 x 18 x 100SPINDLE
8000 RPM StandardSpindle taper
BT-40Spindle speedrpm8000(10000/12000)Spindle drive
Belt typeSpindle motorkw7.5kwSpindle cooling
Oil coolerFEED RATE

Rapid traverse(X,Y)m/min15Rapid traverse(Z)m/min12Cutting feed ratemm/min1-80003 Axes motor output(X,Y,Z)kw2.0kwA.T.C.

Magazine typetypeCarouselArmTool magazine capacitypcs16(20)24Max. tool diametermm10080/150Max. tool lengthmm300300Max. tool weightmm67Tool selectionkgsFixed typeRandomOTHER

Power consumptionKVA20Floor space(LxWxH)mm2420 x 2280 x 2520Machine weightkgs6500
