Innovative Products for Sell Machine Center Supplier Online
Creator Industry (Suzhou) Co., Ltd.- Table Travel (X Axis)：1020mm
- Table Travel (Y Axis)：550mm
- Table Travel (Z Axis)：580mm
- Distance From Table Surface to Spindle N：120-700mm
- Transport Package：Wooden Case
- Specification：CE and SGS
Base Info

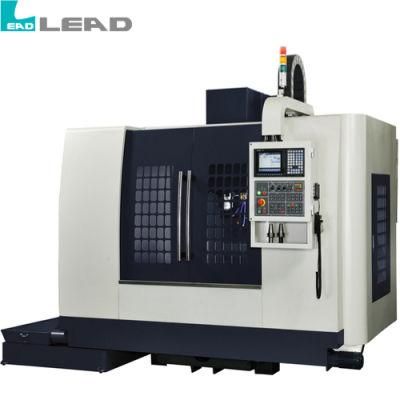

- Model NO.：CHV1020
- Trademark：LEAD
- Origin：China
- Production Capacity：20 Sets, Month
Description
CHV10203AXES TRAVEL
LINEAR GUIDWAY SERIES TABLE TRAVEL (X AXIS) mm 1020 TABLE TRAVEL (Y AXIS) mm 550 TABLE TRAVEL (Z AXIS) mm 580 DISTANCE FROM TABLE SURFACE TO SPINDLE NOSE mm 120-700 WORK TABLE
L*W mm 1200*550 MAX. LOAD OF TABLE kgs 800 T-solt mm 4*18*125 SPINDLE
TYPE type BT-40 BT-40 SPEED rpm 8000/10000 10000/12000 15000 DRIVE type BELT TYPE DIRECT DRIVE MOTOR kw 7.5/11 7.5/11 COOLER type OIL COOLER FEED RATE
RAPID MOVE(X,Y axes) m/min 30 RAPID MOVE(Z axes) m/min 20 CUTTING FEED RATE mm/min 1-10000 3 AXES MOTOR OUTPUT kw 1.8/1.8/2.5 A.T.C.
MAGAZINE TYPE type CAROUSEL ARM TOOL MAGAZINE CAPACITY pcs 16(20) 24 MAX. TOOL DIAMETER mm 100/150 80/150 MAX.TOOL LENGTH mm 250 250 MAX. TOOL WEIGHT kgs 7 7 TOOL SELECTION type FIXED RANDOM OTHERS
POWER CONSUMPTION kva 20 FLOOR SPACE (L*W*H) mm 2940*2180*2350 MACHINE WEIGHT kgs 6800
