Steel / Aluminum / Galvanized Fine Drawing Machine for Copper Wire with Annealing
Hangzhou Suntech Machinery Co., Ltd.- Type：LT Water Tank Type Metal Drawing Machine
- Usage：Wire, Rope Wire, Prestressed Steel Wire
- Metal Material：Copper
- Outlet Diameter：1.5
- Max.Inlet Wire Dia.：8mm
- Block Dia.：450mm
Base Info
- Model NO.：18
- Max. Number of Block：13
- Certification：REACH, RoHS, ISO, Ce
- Condition：New
- Transport Package：Seaworthy Packing
- Trademark：SUNTECH
- Origin：China
- HS Code：8463300000
- Production Capacity：200 Sets,Year
Description
No.
Item
Unit
Specification
1
Inlet diameter
mm
8.0
2
Outlet diameter
mm
1.35-3.00
3
Max. drawing times
13
4
Max. drawing speed
m/s
8
5
Speed adjust wheel diameter
mm
D450
6
Drawing capstan
Tungsten carbide coating
7
Motor power
KW
160KW
8
Power of take-up
KW
11KWX2
9
Spool size
D500
10
Max. annealing voltage
V
70
11
Max. annealing current
A
6000
12
Contacting wheel diameter
mm
230
13
Annealing length
mm
2000
14
Steam protection pressure
MPa
1.5
15
Compressed air pressure
MPa
1.5
16
Cooling passing length
mm
5000
17
Transmission type
Gear box
18
Tension adjust type
Pneumatic
19
Power source
3Phase/380V/50HZ
20
Overall dimension
mm
18000X5000X4550

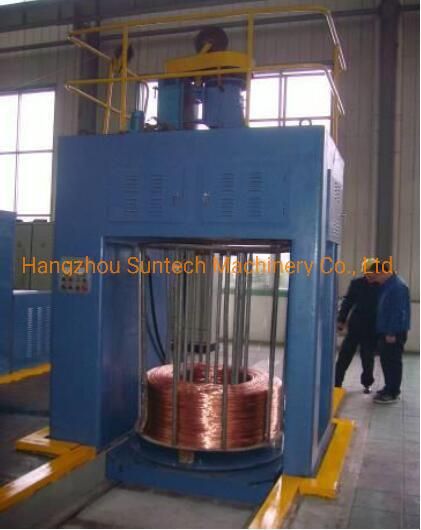

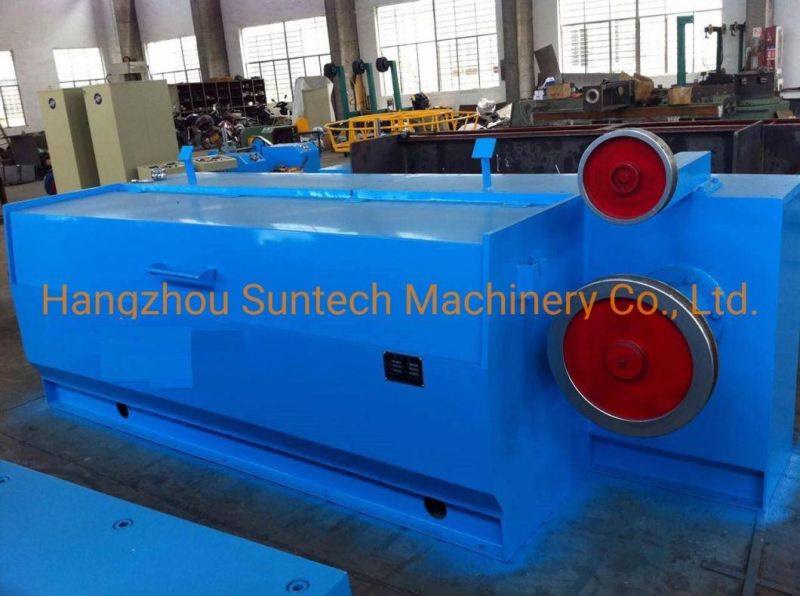

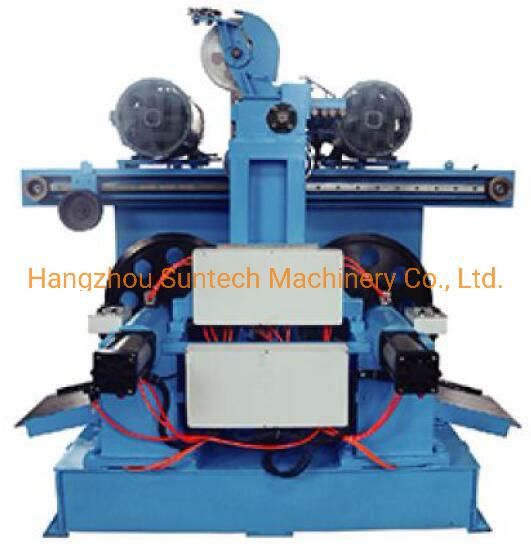

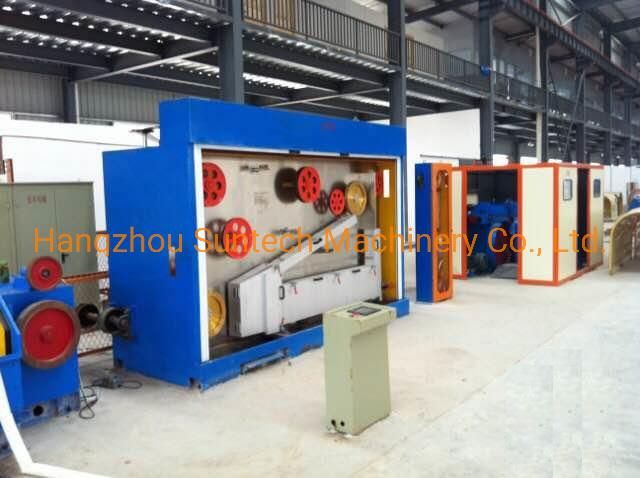

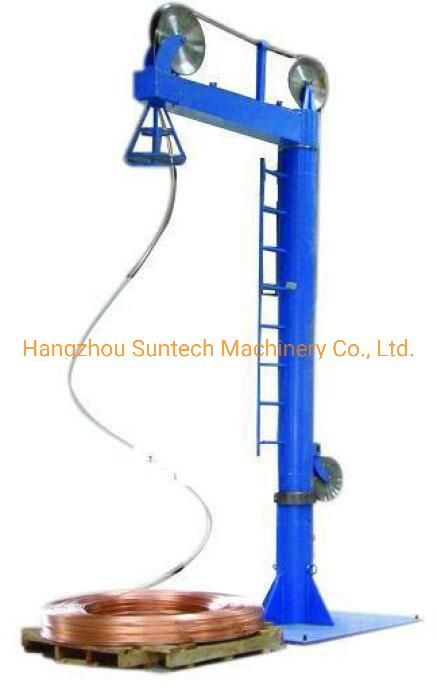

III. Details of machine for reference:
