• Model NO.：According to Customer′s Drawings
• Material：Alloy
• Application：Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery
• Designing：Available
• OEM：Available
• Surface Processes：Multi-Option
• Transport Package：Carton and Vacuum
• Specification：According to Customer′s Drawings
• Trademark：According to Customer′s Brand
• Origin：Wuhan, China
• HS Code：8515900000
• Production Capacity：5000 Pieces , Year

Basic Info.

Model NO. According to Customer′s Drawings Material Alloy Application Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery Designing Available OEM Available Surface Processes Multi-Option Transport Package Carton and Vacuum Specification According to Customer′s Drawings Trademark According to Customer′s Brand Origin Wuhan, China HS Code 8515900000 Production Capacity 5000 Pieces / Year

Product Description

Note: This product is just a sample part we once machined according to a customer's drawing, and the price shown on this page is NOT the real price.

Our procedure for customizing parts for you is as follows:

1. Customer provides 2D or 3D drawings;
2. We quote the prices according to your drawings(we can also design the parts according to your specific requirements);
3. Orders are confirmed by both parties;
4. We start to put your parts into machining;
5. We package and deliver the parts the customer;

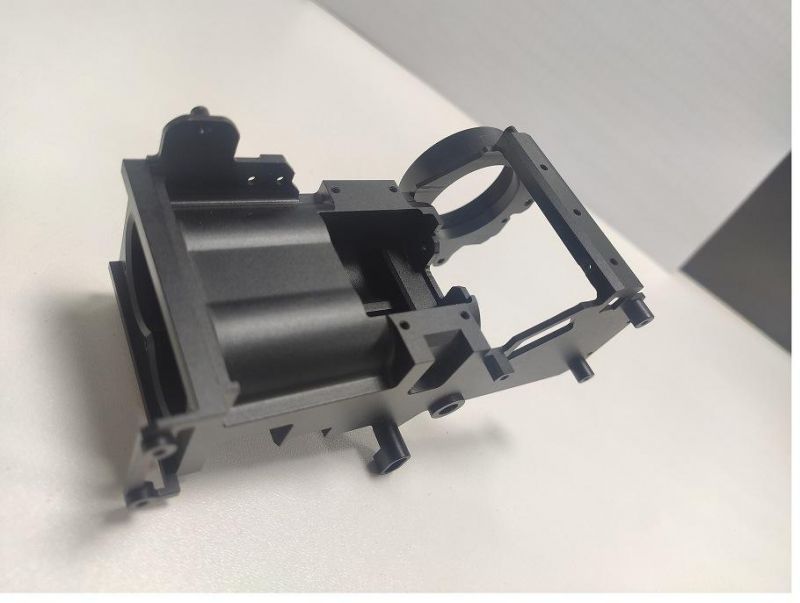

Description of This Part

Materials:
6061-T6, ROHS10-compliant

Technical Requirements:
 The machining accuracy of this workpiece is relatively high. Where the dimensional tolerance is as tight as 0.02mm, the perpendicularity is 0.03mm and the flatness is 0.02mm

Machining characteristics:
 1.3-axis and 5-axis machining centers are used for rough machining, and stock is left on one side.
 2.Aging treatment can fully remove the cutting stress in the workpiece.
 3.3-axis machining center finishes the inner frame to ensure the flatness of the machined surface.
 4.Machining center of 4+1 axes cooperates with the fixture to finish milling the remaining five surfaces, so that they can be formed at one time to ensure their flatness and perpendicularity. In particular, the wall thickness at the opening is relatively thin and has large chattering during machining, make sure that accuracy will be ensured.

Surface Treatment:
Black-dyed anodizing, meeting environmental-protection requirements

Inspection Requirements:
The places where accuracy is required meet the requirements of drawing, and the flatness and perpendicularity are within 0.02mm, and it is tested with CMM, and finished product reports from CMM are generated.
