• Model NO.：GJH 1225
• Condition：New
• Control System：Nc Studio, Syntec
• Guild Rail：Hiwin
• Ball Screw：Tbi
• Transport Package：Standard Exported Plywood Case
• Specification：CE
• Trademark：GJH
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. GJH 1225 Condition New Control System Nc Studio, Syntec Guild Rail Hiwin Ball Screw Tbi Transport Package Standard Exported Plywood Case Specification CE Trademark GJH Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

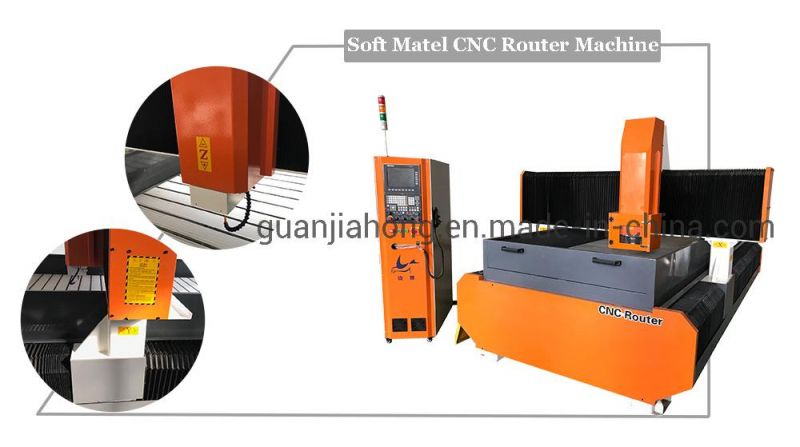

Product Description

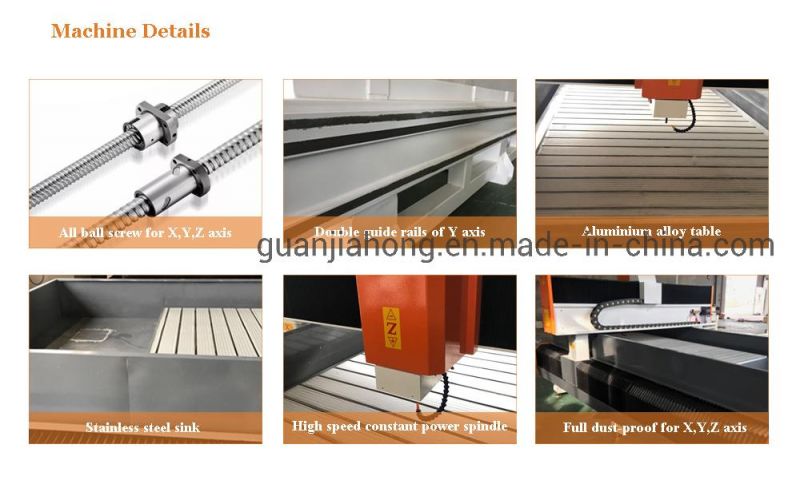

1.  All TBI 3232 ball screw for X, Y, Z axis, 2 screws for Y axis.
2.  Hiwin 25 guie rail, 3 for X axis, 2 for Y axis. Stable operation and improved accuracy.
3.  Aluminium alloy table, integrated stainless steeel sink, convenient use and long service life.
4.  Heavy body of 2 tons, whole machine of 3 tons, increasing stability and improving accuracy.

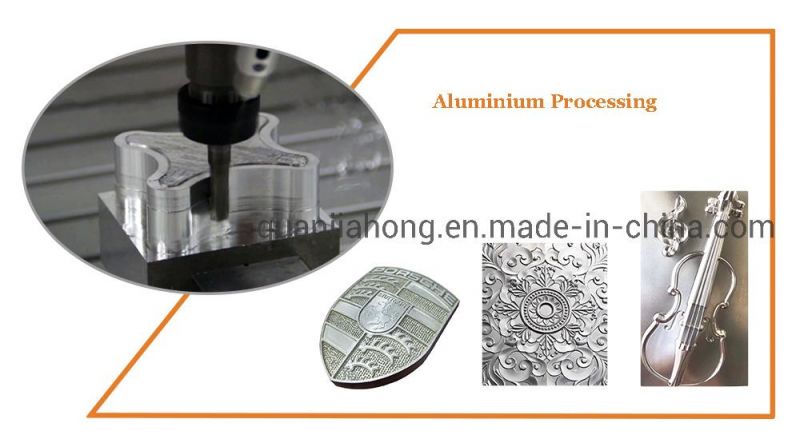

5.  Nc Studio NK300 control system, for processing copper, aluminium and other soft metal, which is good stability for improving accuracy.
6.  All dust-proof for X, Y, Z axis, extend service life.
7. 7.5kw water cooling high speed constant power spindle.

NO	Performance	Performance	Parameter
1	Working area	X axis	1200mm
		Y axis	2500mm
		Z axis	300mm
2	Table size		1250mm*2550mm
3	Accuracy	Working accuracy	0.008mm
		Re-positioning accuracy	0.005mm
4	Drive	X axis	Ball screw
		Y axis	Ball screw
		Z axis	Ball screw
5	Speed	Max travel speed	5000mm/min
		Max engraving speed	1000mm/min
6	Spindle(water-cooling)	Spindle power	5.5KW (as your require)
		Spindle speed	36000_40000r/min
7	Running mode		servo
8	Working voltage		AC220V/50HZ
9	Command code		G code
10	Operating system		NC studio NK300
11	Table		Cast iron T slot
12	Guild rail		Hiwin
13	Auto lubrication		YES
14	Dustproof		X Y Z axis

If you have any specific requirements for soft metal cnc router, customization is available.
