• Model NO.：LXP1530
• Table Type：Knife Table (Teeth Table and Water Table )
• Transmission System：Rack Pinion and Hiwin Linear Rails for X,Y
• Driving System：Stepper Motor and Drivers(Servp Motor Is Optiona)
• Working Voltage：380V,3pH(220V,3pH Is Optional)
• Plasma Generator：Huayuan China and USA Power as Your Requirements
• Arc Mode：Non-Contact Arc, Arc Pressure Adjuster
• Max. Cutting Thickness：8,15,20,25,30,35mm
• Working Material：Steel, Aluminum, Galvanized Sheet, Titanium Plate
• Operating System：Starfire Controller,Start Controller
• Transport Package：Standard Export Packaging
• Specification：86*36*65CM
• Trademark：LXSHOW
• Origin：China Shandong Jinan

Basic Info.

Model NO. LXP1530 Table Type Knife Table (Teeth Table and Water Table ) Transmission System Rack Pinion and Hiwin Linear Rails for X/Y Driving System Stepper Motor and Drivers(Servp Motor Is Optiona) Working Voltage 380V/3pH(220V/3pH Is Optional) Plasma Generator Huayuan China and USA Power as Your Requirements Arc Mode Non-Contact Arc, Arc Pressure Adjuster Max. Cutting Thickness 8/15/20/25/30/35mm Working Material Steel, Aluminum, Galvanized Sheet, Titanium Plate Operating System Starfire Controller/Start Controller Transport Package Standard Export Packaging Specification 86*36*65CM Trademark LXSHOW Origin China Shandong Jinan

Product Description

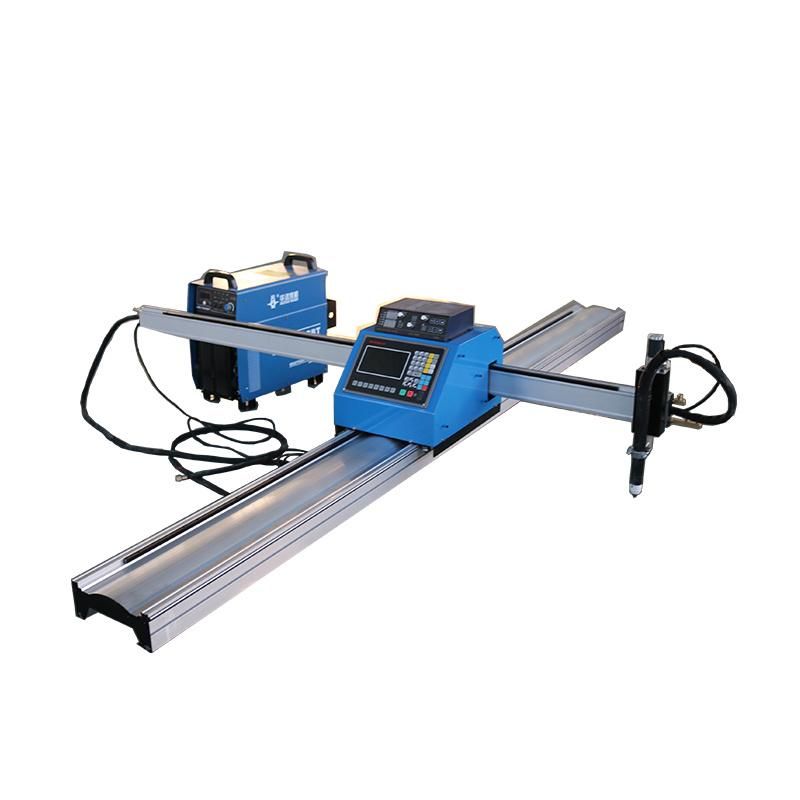

1325/1525/1530 saw table cnc plasma cutting machine /small water jet portable cnc plasma cutter




Features Of Plasma Cutting Machine:

1). Low Noise And High Running Accuracy.

2). Occupies A Small Place.

3). Operates With High Efficiency.

4). Cuts Automatically With High Precision And Uses Materials Effectively.

5). It Is Of Compacted Design, Light Weight And Is Small In Size.

6). It Is Easy To Move, Suitable For The Site Indoor Or Outdoor.

7). The Control System Is Independently Designed And Developed With Optimized Programming,Easy To Learn And Operate.

8). The Operation Interface, Simple And Clear, Can Store Over 80 Programs.

9). LCD Screen Of Dynamic And Static Display Of Graphics Can Convert The CAD File To The Programmed One In The Computer And Transmit,It To The Machine Via A USB Flash Disk Before Automatic Cutting Performance Which Can Also.Be Made By Inputting The Simple Instruction In The Machine For Programming Cutting.




Application Of  Plasma Cutting Machine:

1).Applicable Industries

Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building,Military Industrial,Wind Power,Structural Steel,Boiler Containers,Agriculture Machinery,Chassis Electrical Cabinets,Elevator Manufacturers,Textile Machinery,Environmental Protection
Equipment,Ect.

2).Applicable Materials

Aluminum,Copper,Titanium,Nickel,Iron,Galvanized Sheet,White Steel,Titanium Plate,Carbon Steel,Stainless Steel,Alloy Steel,Composite Metal

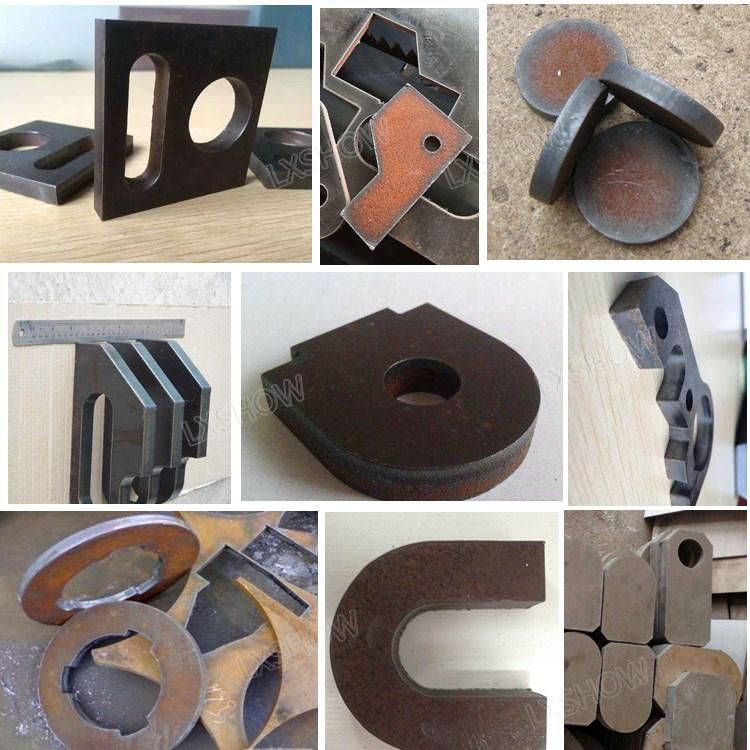

Samples:




Technology Parameter:


1	Model	LXP1530 CNC Plasma cutting machine (Other models are optional)
2	Working size	1500*3000mm (4.3x8.2ft)   (Other working sizes are optional)
3	Three axes repeat positioning accuracy	±0.05mm
4	Process precision	±0.35mm
5	Transmission system	X,Y: Taiwan Hiwin high-precision,zero clearance increased linear guide+ rack Z: the arc voltage control
6	Max. cutting speed	15000mm/min
7	Working voltage	AC220/50HZ
8	Control system	STARFire plasma cutting system Standard high sensitivity arc voltage device
9	Software support	FASTCAM,AutoCAD,etc
10	Instruction format	G code
11	Drive system	Stepper motor
12	Plasma power supply	China Huayuan 63/100/160/200A(Optional Hypertherm --45A,65A,85A,105A,125A,200A)



Company Information:

FAQ

Q1 :How about warranty?

A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.



Q2:2 I don't know which one is suitable for me ?

A2:Please tell me your

1) Max work size:choose most suitable model.

2) Materials and Cutting thickness::choose most suitable power.



Q3:Payment terms?

A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.



Q4:Do you have CE document and other documents for customs clearance?

A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.



Q5:I don't know how to use after i receive Or i have problem during use,how to do?

A5:

1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.

2) If have any problem during use,you need our technician to judge

The problem elsewhere will be solved by us. We can provide team viewer

/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.



Q6:Delivery time

A5:General configuration:7 days. Customized:7-10 working days.
