• Model NO.：ET-6090
• Warranty：12 Months
• Customized：Customized
• Condition：New
• Precision：0.1mm
• Control System：DSP Control System
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Square Linear Rail：Tbi
• Working Area：600*900*300mm
• Drive Motor：Syntec Servo System
• X/Y/Z Structure：Xy Axis Rack,Z Axis Screw
• Working Power：220V
• Electrical Parts：France Schneider
• Moter：Step Moter
• Guiding System：Square Guide Rail
• Driving System：Stepper Driver and Motor
• Spindle Power：3kw Water Cooling Spindle
• 3kw Water Cooling Spindle：600kg
• Transport Package：Wooden Case
• Specification：600*900*1100mm
• Trademark：ET
• Origin：China, Shandong, Weifang
• HS Code：8461500090
• Production Capacity：10000

Basic Info.

Model NO. ET-6090 Warranty 12 Months Customized Customized Condition New Precision 0.1mm Control System DSP Control System After-Sales Service Provided Engineers Available to Service Machinery Overseas Square Linear Rail Tbi Working Area 600*900*300mm Drive Motor Syntec Servo System X/Y/Z Structure Xy Axis Rack,Z Axis Screw Working Power 220V Electrical Parts France Schneider Moter Step Moter Guiding System Square Guide Rail Driving System Stepper Driver and Motor Spindle Power 3kw Water Cooling Spindle 3kw Water Cooling Spindle 600kg Transport Package Wooden Case Specification 600*900*1100mm Trademark ET Origin China, Shandong, Weifang HS Code 8461500090 Production Capacity 10000

Product Description

ET-6090 Factory supply cnc router for metal

Machine features:

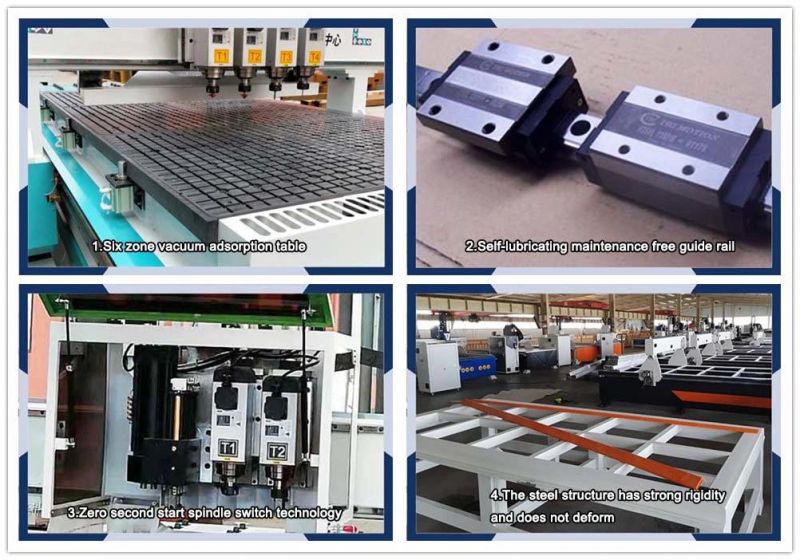

1. The whole machine is processed by a CNC gantry milling machine, and the key parts are cast iron quenched.
2. Adopt zero-second start spindle switching technology and introduce advanced fast drilling technology.
3. It can be equipped with HQD / HSD spindle in Italy, and all series of precision bevel gears imported from Germany are standard.
4. Use Taiwan's light preloaded lubrication-free and maintenance-free guide rails, double-row and four-row ball sliders.
5. The digital control system adopts unique intelligent budget rules to realize high-speed processing, curve synchronization and perfect curve.
6. Good software compatibility, compatible with Type3 / actcam / castmate / Wentai and other cabinet design and production software.
7. The six-zone vacuum adsorption table and the double-layer cavity adsorption structure can effectively adsorb boards of different sizes.
8. The Y-axis is driven by dual motors, making it run at a high speed at an idling speed of up to 70m/min.
9. Free stand-alone segmentation software, support automatic positioning, automatic push, secondary dust removal, intelligent information switching functions, and achieve a higher degree of automation.

Model	CX-1325
Lathe bed	Self designed industrial design bed
Guide	Vertical rail
Effective machining stroke of X axis	1300mm
Effective machining stroke of Y axis	2500mm
Z axis stroke	220mm
Bed structure	Thick wall square pipe welding
Platform size	2400*3400mm
Maximum operating speed	50m/min
Maximum carving speed	30m/min(based on material and carving depth)
Repeated positioning accuracy	±0.05mm
Carving instruction	G code
Working voltage	380V/50HZ
Spindle speed	0-24000rpm/min
Plate fixing method	Vacuum adsorption double deck
Transmission mode	X / Y-axis high precision helical gear transmission, z-axis lead screw
Guide	Taiwan 25 straight track
Operation mode	Gemicom high precision servo
Frequency converter	Zhongchen frequency converter
Reducer	Taiwan high precision reducer
Driving system	Gemicom servo
Control system	Shanlong industrial control system
Principal axis	HQD6.0KW*2,4.5KW*2(optional)
Tool magazine capacity	4
Maximum tool holding handle diameter	12.7mm
Automatic location	Standard automatic positioning function
Vacuum pump	Water type 7.5kw
Accessory accessories	Tool wrench, etc
Pusher device	Automatic pushing + secondary dedusting

1.Q: Are you a manufacturer or trading company?
      A: We are a manufacturer, We are dedicated to pipe processing equipment manufacturing.

2.Q: Where is the nearest airport and port from your factory?
      A: The nearest airport and port is Qingdao.

3.Q: What is the spare parts about the machines?
      A:Pipe bender is seal components and valves.
      B:Pipe cutter is seal components and saw blades.

4.Q: How about the training and installment after we buy your machines?
     A: Our factory can send our engineer to the customer's factory install,commission and training freely. The customer provide the  double trip tickets,food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
