Factory Price Screw Nail Collator, Coil Nail Production Line
Xuchang Huarui Machinery Co., Ltd.- Warranty:2 Years
- Product Name:Coil Nail Collator
- Model No.:Hrj-3.5 Coil Nail Collator
- Nail Diameter:Below 4.5mm
- Nail Length:Below 130mm
- Motor Power:15kw
Base Info
- Model NO.:Coil Nail Production Line
- Certification:CE
- Machine Color:White,Blue,Gray,Customized
- Transport Package:Standard Sea Shipping
- Specification:Making coil nails
- Trademark:Huarui
- Origin:China(Mainland)
- HS Code:8479819000
- Production Capacity:200 Sets,Month
Description
Basic Info.
Model NO. Coil Nail Production Line Certification CE Machine Color White/Blue/Gray/Customized Transport Package Standard Sea Shipping Specification Making coil nails Trademark Huarui Origin China(Mainland) HS Code 8479819000 Production Capacity 200 Sets/MonthProduct Description
Factory Price Screw Coil Nail Production Line

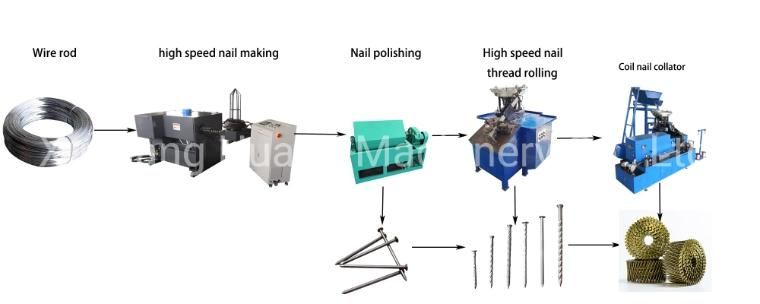

Process flow: Wire rod -- HD90 high speed nail making -- Nail polishing -- Finished common nails -- Nail thread rolling -- Finished screw/twisted nails -- Coil nail welding machine -- Finished coil nails
Specification of each machine

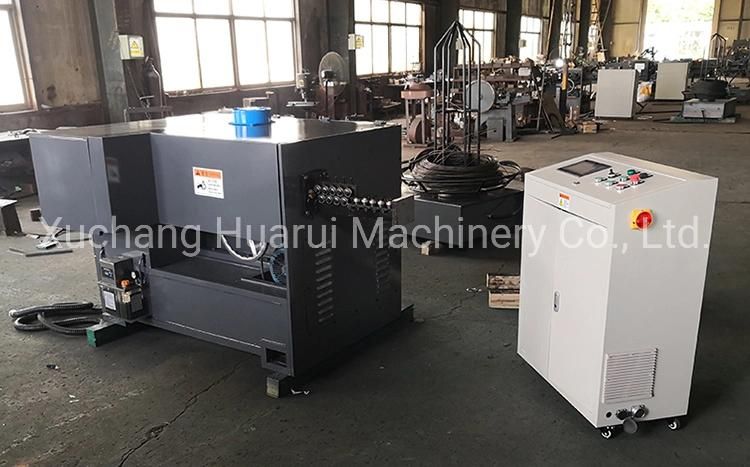

1. HD-90 full automatic high speed wire nail making machine
Function: this machine is high speed nail machines, which can make common wire nails with max speed 760pcs/min. Automatic oiling , few lubrication points, much less than traditional machines and other nail making machines on marke
Technical Parameters:
Model | HD-90 full automatic high speed nail making machine |
Nail diameter | 2.0-3.8mm / 1.8-3.5mm |
Nail length | 38-90mm / 25-82mm |
Nail making speed | 760pcs/min |
Motor power | 5.5KW+1.5KW (inverter control) |
Machine weight | 3500KG |
Dimension | 2200*1500*1200mm |

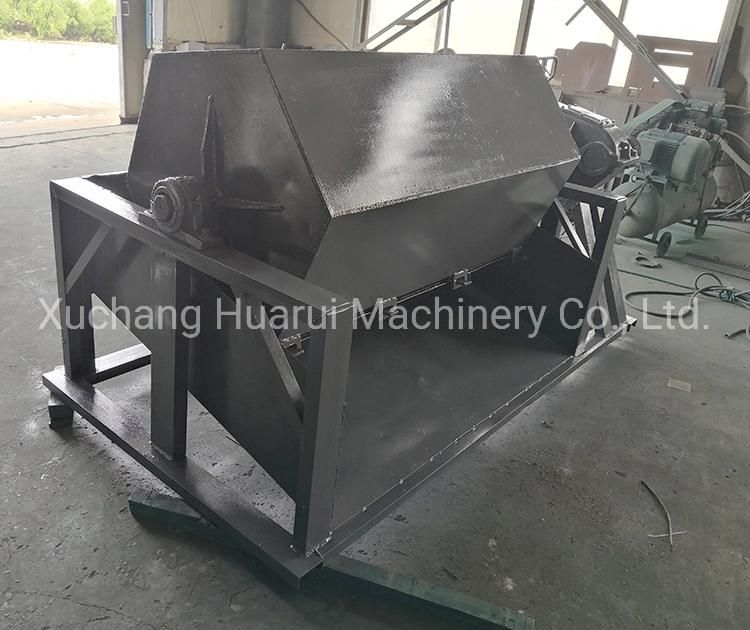

2. Nail polishing machineFunction: This machine is auxiliary equipment of nail making machine. When the nails have been made by the nail making machine, it will be not very bright. The user can use this machine to polish the nails to let it brighter, smoother and anti-rust.
Main technical parameters:
Model | Motor power | Overall size | Capacity of nails |
SD-400 | 2.2kw | 1.64*0.9*1.0m | 400kg |
SD-600 | 3kw | 2.0*1.0*1.4m | 600kg |
SD-800 | 5.5kw | 2.0*1.2*1.5m | 800kg |
SD-1000 | 5.5kw | 2.0*1.5*1.5m | 1000kg |
SD-2000 | 11kw | 2.5*2.1*2.0m | 2000kg |
SD-3000 | 15kw | 3.4*1.55*1.6m | 3000kg |

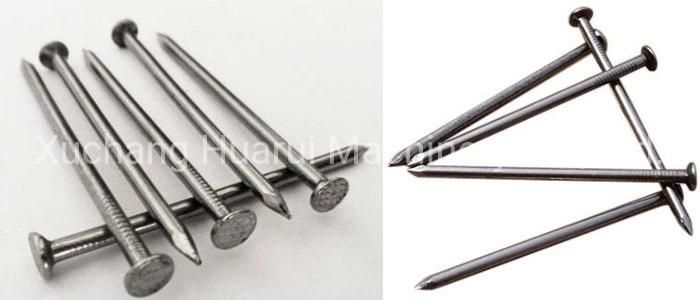

Finished common nails

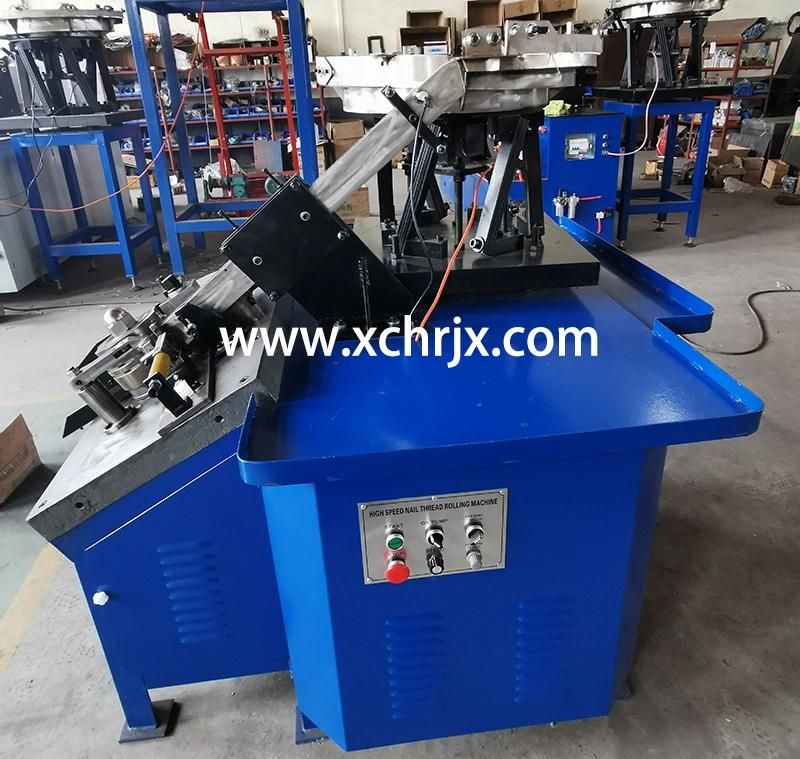

3. GS-100 high speed thread rolling machineFunction: This machine is equipped with professional molds, can produce various kinds of shaped nails.
It is mainly used to produce screw nail, spiral nail and other new type of nails.
Main technical parameters
Model No. | GS-100 high speed thread rolling machine |
Diameter range | 1.8-4.2mm |
Length range | 25-100mm |
Capacity | 600-1000pcs/min |
Weight | 1500kg |
L*W*H | 1420*1400*1450mm |
Power | 7.5kw |

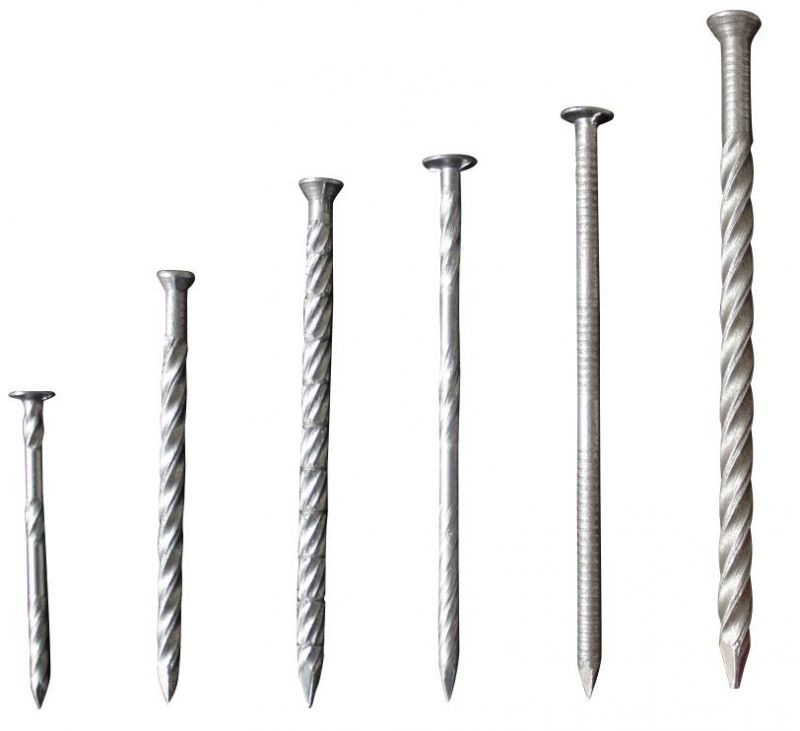

Finished twisted nails

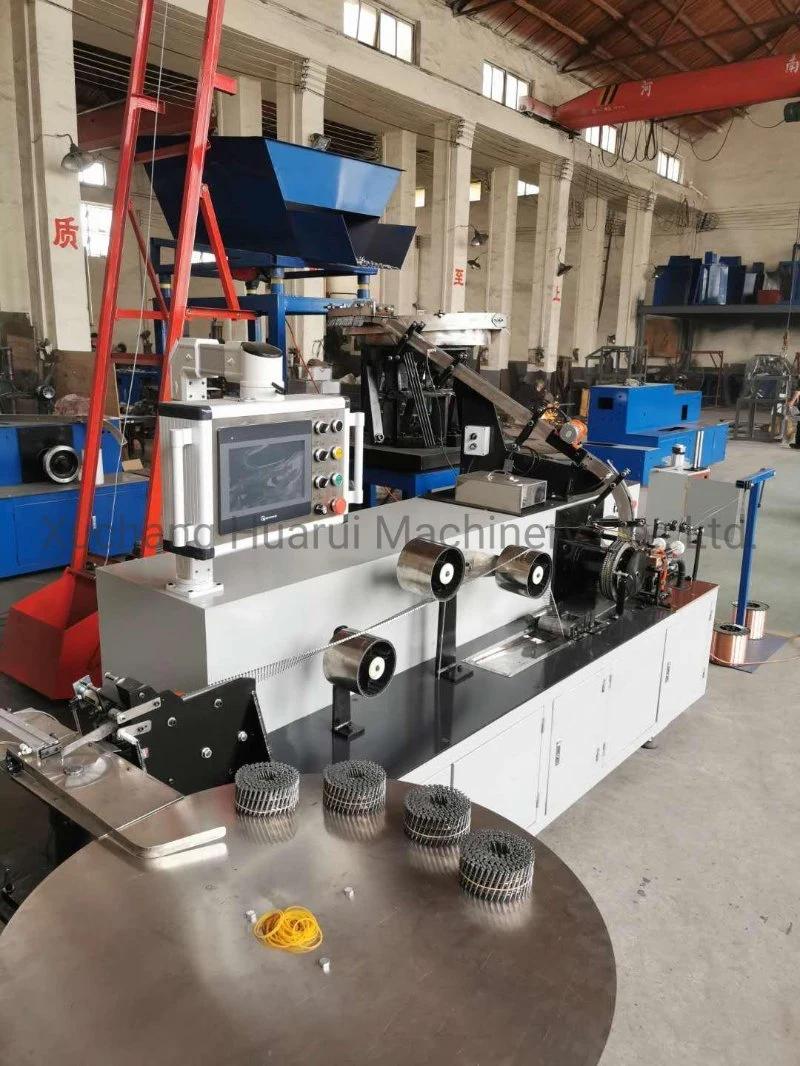

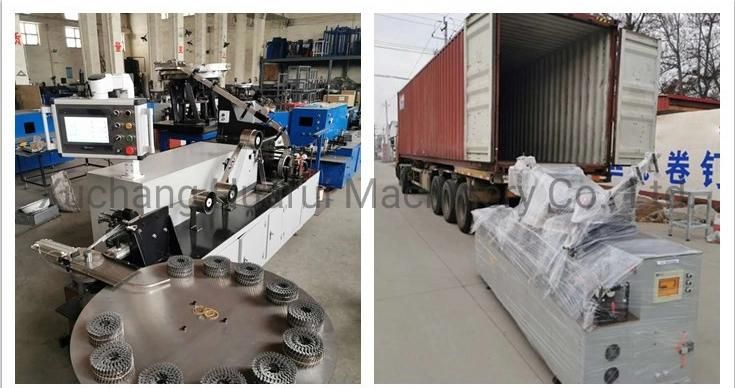

4. Coil Nail Collator
Function: The coil nail welding machine is automatic welding equipment. Put the nails to vibrating disk, the nails will get in welding wheel by feeding tracks in order, weld by two coppered wire, and then through oiled to anti-rusting automatically, drying and counting device, roll it into a dish, cutting off according to the setting quantity of per dish, finally fixed the dish by rubber ring and packing.
Main technical parameters:
Model | HRJ-3.5 Coil nail welding machine |
Wire Dia. | Below 4.5mm |
Nail Length | Below 130mm |
vibration disk power | 3kw, 380v |
Rated Power | 15kw |
Coil nail specification | Angle:15°/16° Quantity per roll:120~1200pcs/roll Welding wire for coil nails: 0.6mm,0.7mm,0.8mm |
Working area | 2700*850 |
Production speed | 1000-2800pcs/minute |
Dimension | 2900*1500*1800mm |
Weight | 1500kgs |

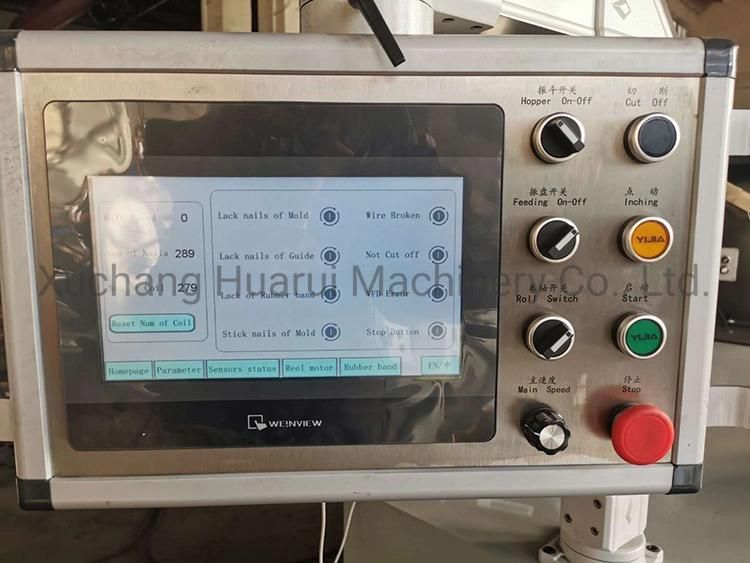

3. Automatic packing and binding device with PLC control panel (optional)

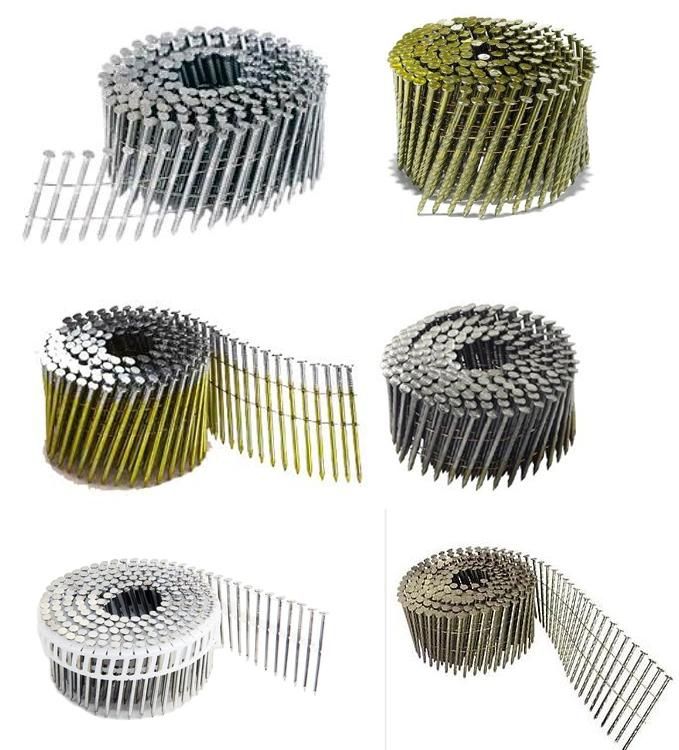

Finished coil nail

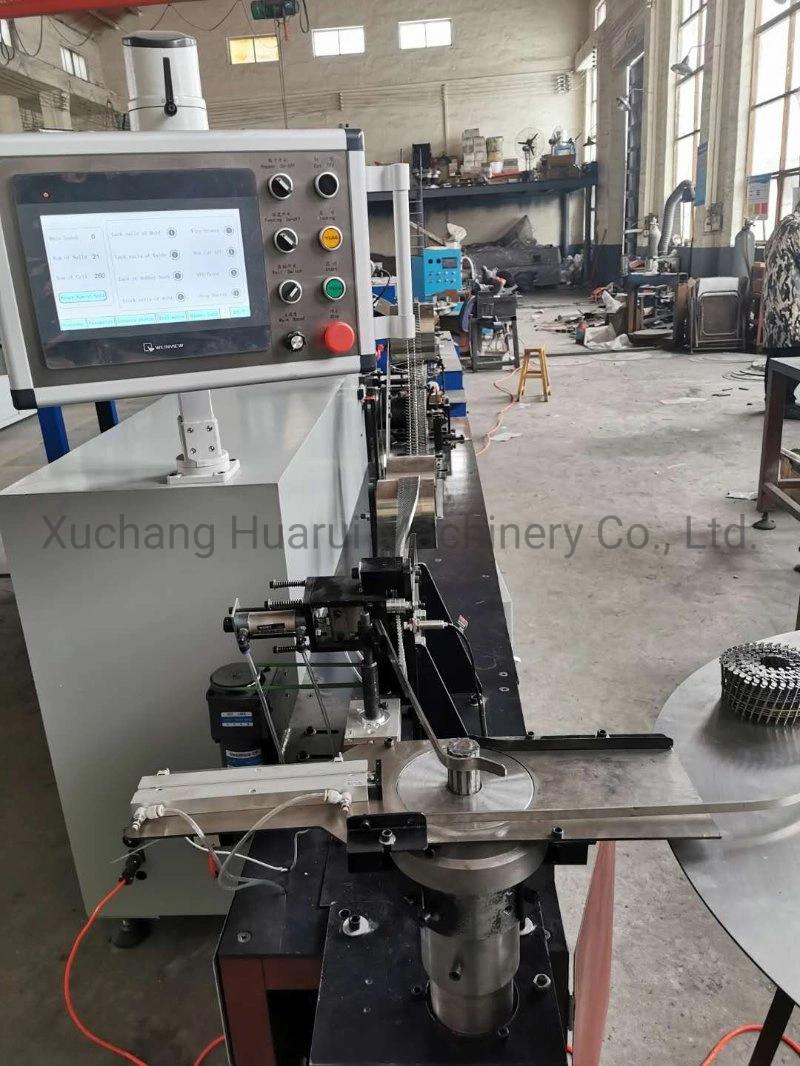

More pictures of Coil Nail Collator
Company introduction
Xuchang Huarui Machinery Co., Ltd. was established in 1990, mainly engaged in the R&D and manufactures CNC wire bending machine, wire straightening and cutting machine, wire cutter, wire bender, nail making machine, screw making machines, etc.
After years of pragmatic innovation, exploration and development, Xuchang Huarui Machinery Co., Ltd. has developed from a small machinery factory into a large-scale and well known machinery company.
Our main products are wire drawing machine, coil nail welding machine, nail threading machine, wire nail making machine, roofing nail making machine, etc. Our scale of production is among the best in the profession, sales network are spread out into all over the world, and have a favorable reputation by customers. As a professional machinery company, we always devote to produce best products and provide excellent service for customers. The satisfaction of clients and good reputation is our highest pursue.
We stick to the principle of "Quality First, Customer Uppermost", and ensure quality first, service first. In order to service customers best, the warranty of all our products are two years. We are ready to join hands with our friends for establishing a bright future.
We have our own designer and technician and engineers, can also customize the machines according to your needs.
Any questions about our machines and latest prices, do not hesitate to contact us
