Plasma Cutting Electrode 277131 277282 277292 277291 2277270 for Kaliburn

Jinan Allwin CNC Machinery Co., Ltd.
  • Warranty：15h
  • Condition：New

Base Info

  • Model NO.：kaliburn
  • Certification：CE, ISO9001
  • Standard：GB
  • Customized：Customized
  • Material：Brass
  • Application：Metal Cutting Machine, Metal Processing Machinery Parts
  • Accessories Name：Plasma Electrodes,Nozzles,Cap
  • Products Name：Plasma Electrode Tip Nozzle
  • Plasma Consumables：Esab Plasma Nozzle
  • Delivery Time：in Stock
  • Nozzles Brand：P80 or Kaliburn,Esab
  • Name：Plasma Electrodes Tips
  • Plasma Accessories：Nozzles Electrode
  • Laser Nozzles：Fiber Laser Nozzles
  • Lincoln Nozzles：277122,277125,277284
  • Plasma Nozzles Electrode Tips：277269,277292,277270
  • Plasma Tips：277153,277151,277266
  • Cutting Tools：9-8237,9-9-8244
  • Powermax Shield：Plasma Cutter Tips
  • Transport Package：Carton Box
  • Specification：50A 120A 160A 200A
  • Trademark：OEM
  • Origin：China
  • HS Code：8515900000
  • Production Capacity：5000,Day
  • Package size per unit product：5.00cm * 4.00cm * 2.00cm
  • Gross weight per unit product：0.250kg

Description

  Allwin plasma consumables are Fully compatible with Kaliburn plasma cutter Spirit 150a,200a,275a,400a,Proline 2150,2200,2260.
  We also provide other consumables for kaliburn lincoln plasma cutter torch Ref NO.DescriptionPart No.277007Water TubeEW 277007277270-PROElectrode 275AEW 277270-PRO277291-PROElectrode 200AEW 277291-PRO277292-PROElectrode 150AEW 277292-PRO277282-PROElectrode 100AEW 277282-PRO277131-PROElectrode 50/70AEW 277131-PRO277142Swirl Ring 50-70AEW 277142277283Swirl Ring 100AEW 277283277139-URSwirl Ring 150AEW 277139-UR277143-URSwirl Ring 200AEW 277143-UR277258-URSwirl Ring 275AEW 277258-UR277122Nozzle 50AEW 277122277125Nozzle 70AEW 277125277284Nozzle 100AEW 277284277293Nozzle 150AEW 277293277289Nozzle 200AEW 277289277269Nozzle 275AEW 277269277153Inner Retaining Cap 30-70AEW 277153277151Inner Retaining Cap 100/150AEW 277151277152Inner Retaining Cap 150AEW 277152277266Inner Retaining Cap 200/275AEW 277266277150Shield 70AEW 277150277286Shield 100AEW 277286277117Shield 150AEW 277117277274Shield 200AEW 277274277263Shield 275AEW 277263284150Outer Retaining CapEW 284150277154Outer Retaining CapEW 277154

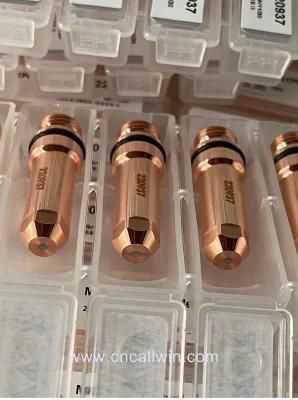

Plasma Cutting Electrode 277131 277282 277292 277291 2277270 for Kaliburn
HOW LONG DO PLASMA CUTTER CONSUMABLES LAST?
Now that we've looked at the role each of these consumable parts play, we'll move on to discuss how long these elements last. The nozzle and the electrode will wear out more quickly than other components, as they are most directly involved with the creation and focussing of the cutting arc. You'll notice nozzle wear primarily in the quality of the cut you are achieving. As the nozzle wears, the hole in the tip gets larger, which makes the plasma arc thicker and produces a wider cut (kerf) in your workpiece. You will be able to see with a simple visual inspection when the hole in the nozzle becomes too large and needs replacing.

CHECK WHICH PLASMA CONSUMABLES YOU NEED

If you are looking for plasma consumables, torches or torch assembly options it's very important you order the correct parts based on your system, material or amperage.

Therefore we will provide you with an overview of all current and legacy Hypertherm plasma cutting systems, so you could see which option fits best your needs.
