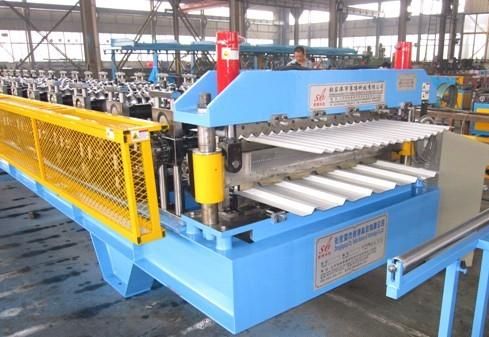

Panel and Corrugated Roll Forming Machine
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
- Power Source：Electric
- Feature：High Efficiency
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Color：Blue and Yellow
- Transport Package：No Packing
- Specification：CE, SGS
- Trademark：SAIBO
- Origin：Jiangsu, China
- HS Code：84552210
- Production Capacity：300sets,Year
Description
2. The Chart of Process Flow
Manual Un-coiler-Roll Forming-Cutting-out table
3. Specification of Components
- Width of feeding: 1250mm
- Capability: 5 Ton
- Inter diameter: 500-590mm
- Maximal out diameter: 1500mm
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual
- Color: blue
- Quantity: 1

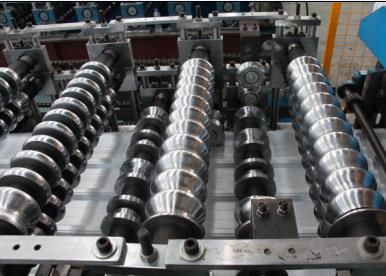

- Roll station: up layer-18 stations
- down layer-18 stations
- Roller material: SAE1045 chrome plated surface with chrome
- Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
- Main power: 7.5kw
- Main frame by 350H beam welding
- Machine structure: guide pillar
- Cutting after forming: Cut the sheet after roll forming to required length
- Uses two hydraulic cylinders for operation.
- Material of blade:Cr12, 58-62 HRC hardness
- Cutting power by hydraulic,5.5KW
- Programmable setting of profile length and quantity
- 5 groups data can be set in one time
- Operating system language: English and Chinese
- Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
- Length inaccuracy can be amended easily.
