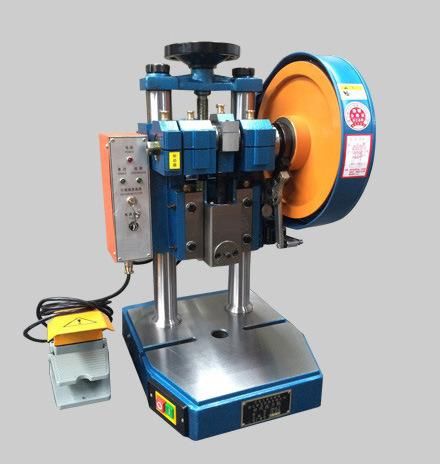

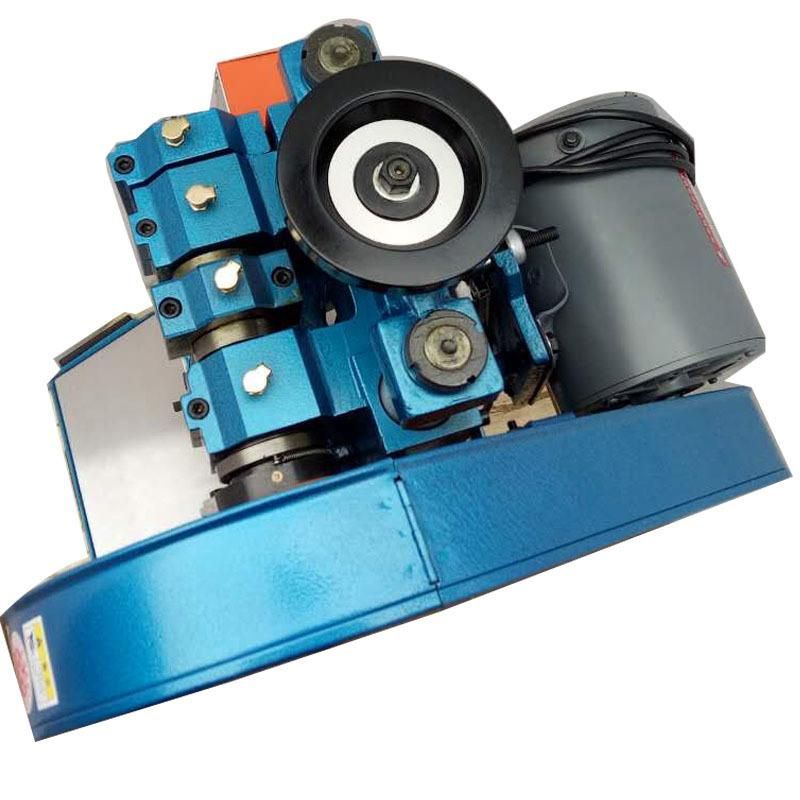

Automatic Hole Punching Machine in Metal
Jining Bafang Mining Machinery Group Co., Ltd.- Condition：New
- Certification：CE, ISO9001
- Standard：DIN
- Customized：Customized
- Material：Metal
- Application：Metal Drawing Machinery
Base Info
- Model NO.：jb01
- Transport Package：Wooden Box
- Specification：1ton
- Trademark：bf
- Origin：China
Description
Model
JB01
JB02
JB03
JB04
JB05
Nominal press capacity (KN)
10
20
30
40
50
Stroke of slide
(mm)
40
42
48
42
42
Stroke of nominal pressure(mm)
2.4
2.4
2.4
2.4
2.4
Stoke per minute
(s.p.m)
250
220
200
200
180
Max. shut height(mm)
150
220
250
250
270
Distance between columns (mm)
106
130
230
230
230
Throat depth
(mm)
58
65
85
65
65
Shank hole size
(mm)
20*40
20*45
28*50
25*40
25*40
Bench size
(mm)
300*275
320*300
400*380
350*370
430*370
Slider bottom size(mm)
57*48
72*64
80*70
78*78
78*78
Motor power(w)
370
450
650/750
650/750
650/750
Dimension(mm)
495*375*555
520*400*620
640*550*830
720*570*900
720*570*900
Weight(kg)
95/100
115/120
240
250-360
270-380
