• Model NO.：WB
• Model：Fns
• Application：Sink Welding
• Transport Package：Ply Wood Box
• Specification：CCC, ISO, CE
• Trademark：DuroWelder
• Origin：Guangzhou City, China
• HS Code：8515219900
• Production Capacity：100sets Per Year

Basic Info.

Model NO. WB Model Fns Application Sink Welding Transport Package Ply Wood Box Specification CCC, ISO, CE Trademark DuroWelder Origin Guangzhou City, China HS Code 8515219900 Production Capacity 100sets Per Year

Product Description

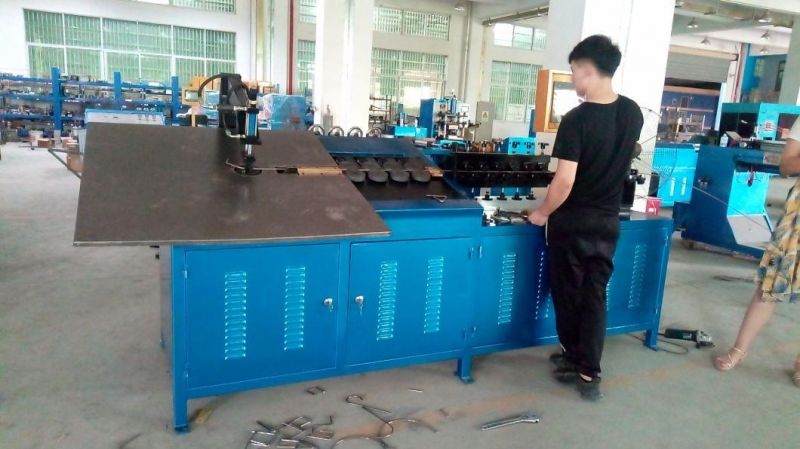

Automatic 2D wire forming machine Advantages
The equipment design concept: the machine instead of artificial, without straightening materials, no need to open mold can be produced. You need to bend what shape, as long as it is in a plane, our machines can meet your needs.

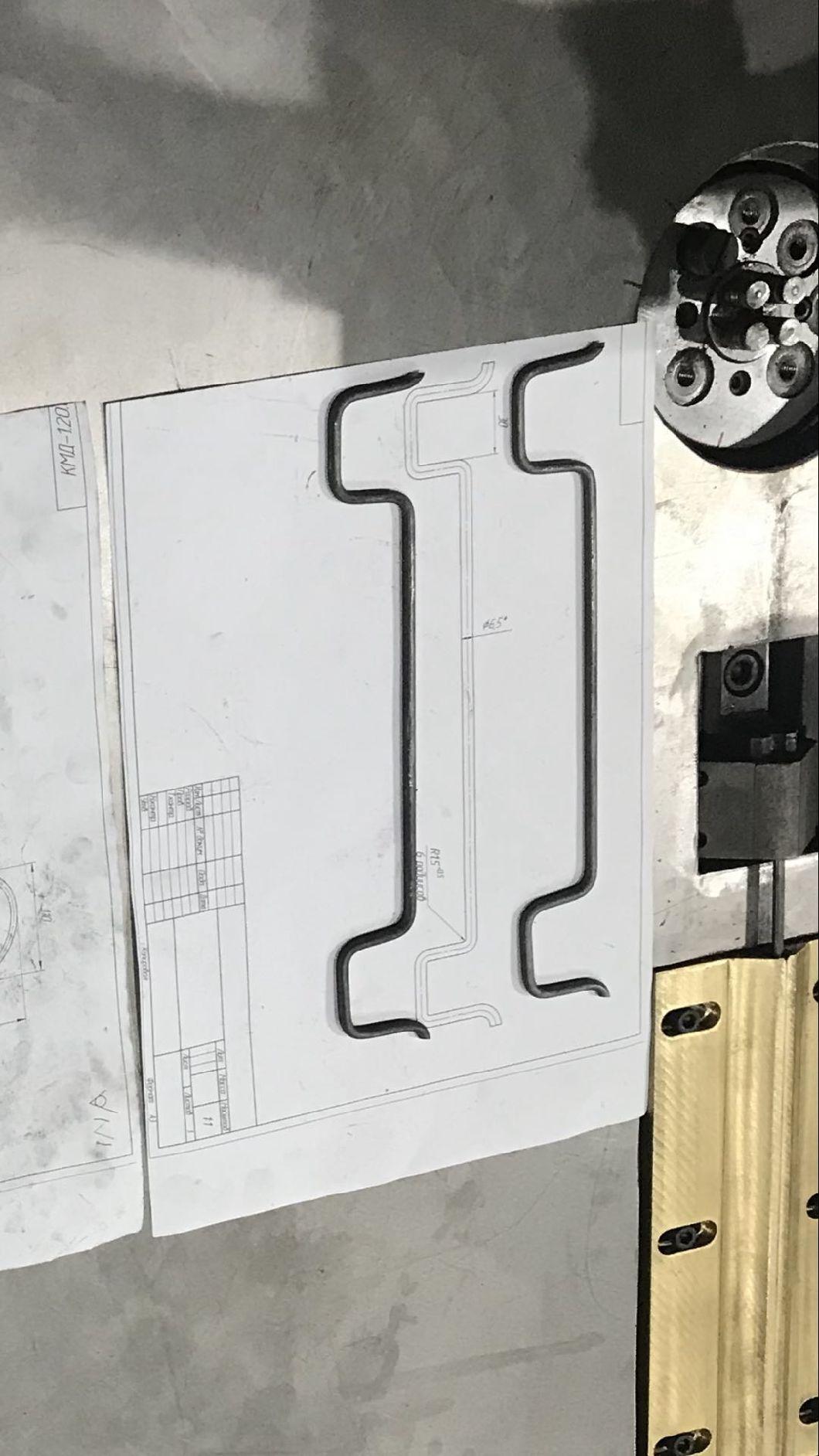

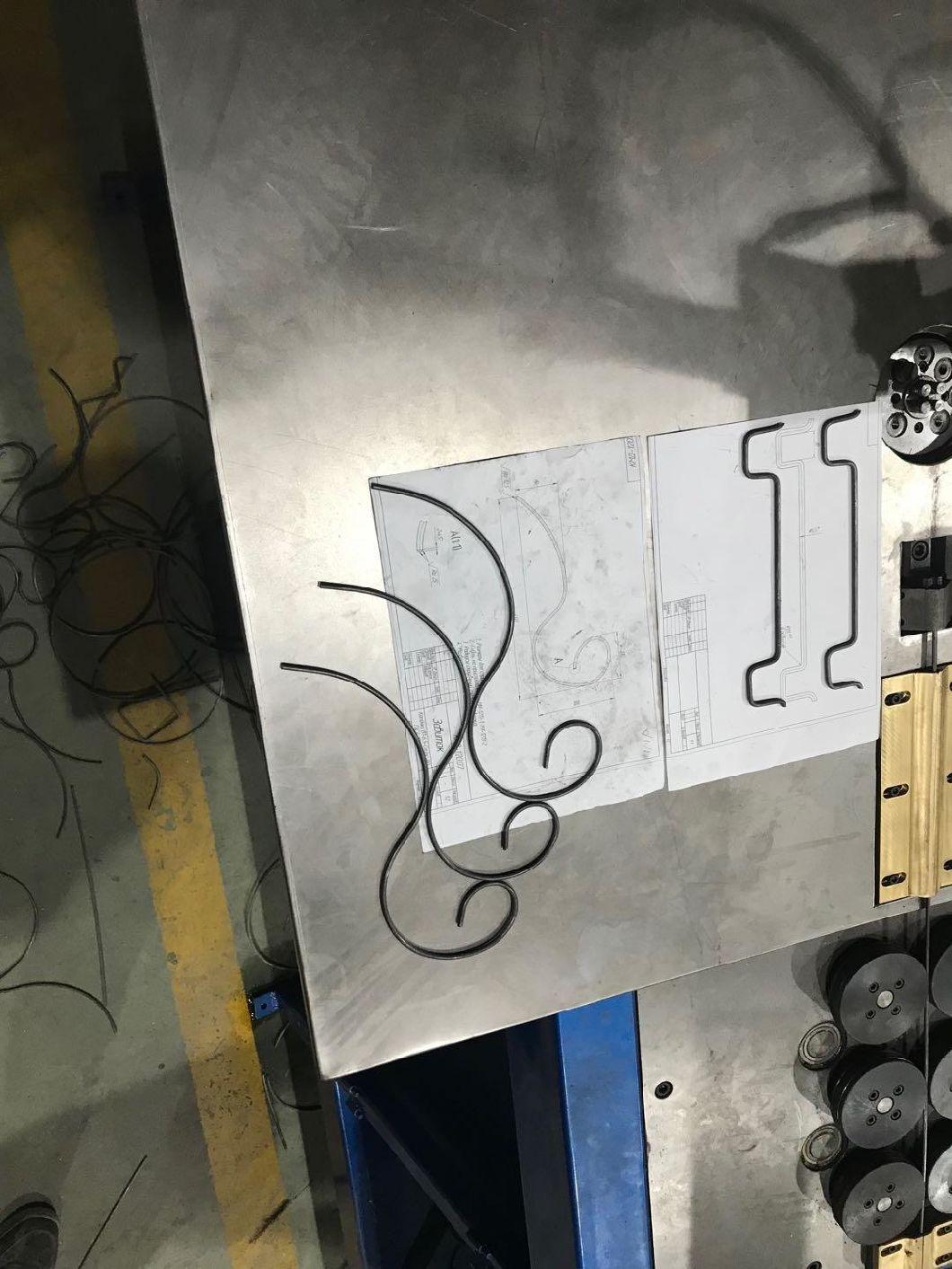

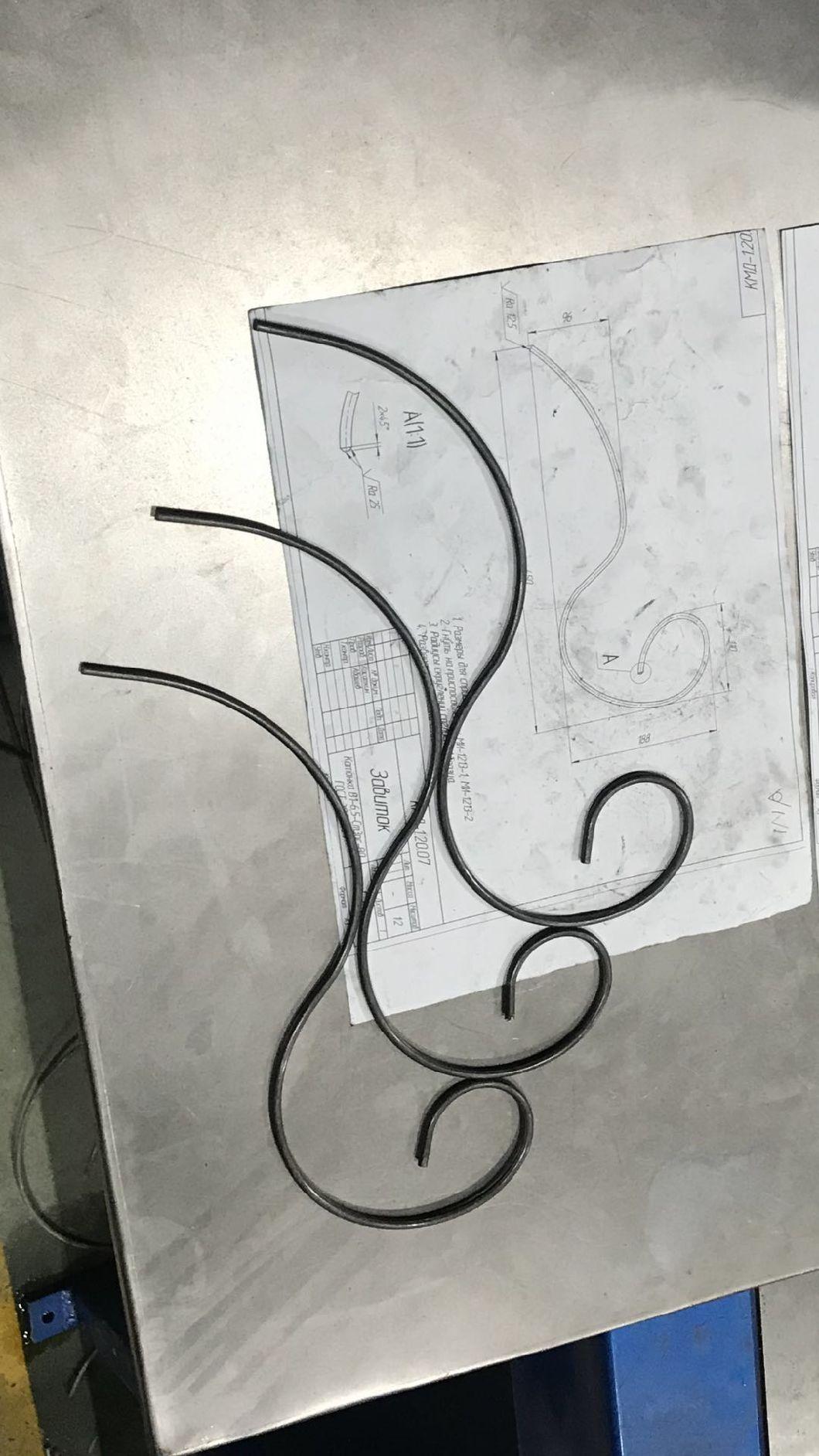

Applicable to iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, flat wire), playing (bending) side, round, hexagonal, oval with irregular shape and a variety of flat buckle, all kinds of hook The

Automatic 2D wire forming machine works
1, the equipment selected sub-drive control high-precision servo motor wire, mechanical transmission selection of precision gear connection, always keep the same line feed accuracy and wire feed speed;
2, shear cylinder hydraulic station equipped with forced air-cooled radiator, double the extension of the hydraulic system components life;
3, the control system using PLC and text display connection, both convenient operation, but also to ensure the stability of the control system, and the design of the production of preset function control machine running.

Automatic 2D wire forming machine structure principle
1, by the precision servo motor drive wheel rotation, with PLC and text display instead of stepper motor controller, according to the need to arbitrarily modify the servo motor slow down the curve and the maximum speed of the servo motor to put an end to the impact of mechanical transmission, absolute To ensure that the actual transmission line length and the theoretical calculation of the length of the same;
2, in the design budget, the length of each MM has been divided into 10 pulse, to further ensure the length of the precision settings;
3, adjustable hydraulic cylinder cut, you can ensure the integrity of the circle incision, cutting time and retraction time can be directly modified in the text display;
4, the design of a manual slow feeding, slow return function, easy to operate, reduce material loss.

Automatic 2D wire forming machine machine composition:
Distribution line assembly, straightening mechanism, bending line assembly, hydraulic system, electrical control part.
1, hydraulic system (control the outer mold lift and cutter);
2, wire assembly (to complete the delivery of materials);
3, straightening institutions (straight wire);
4, bending line assembly (product molding).
