• Model NO.：Comflex
• Working Speed：960PCS,8hrs
• Power：3kw
• Lead Time：2 Months After Getting Your Advance Payment
• Certificate：Ce, ISO, CSA etc...
• Colour：Customized
• Original：China
• Warranty：1 Year
• Transport Package：Standard Sea Package for Flexible Metallic Hose Ma
• Specification：SGS
• Trademark：HLT
• Origin：Jiangsu, Wuxi
• HS Code：844790900
• Production Capacity：15 Sets Per Year

Basic Info.

Model NO. Comflex Working Speed 960PCS/8hrs Power 3kw Lead Time 2 Months After Getting Your Advance Payment Certificate Ce, ISO, CSA etc... Colour Customized Original China Warranty 1 Year Transport Package Standard Sea Package for Flexible Metallic Hose Ma Specification SGS Trademark HLT Origin Jiangsu, Wuxi HS Code 844790900 Production Capacity 15 Sets Per Year

Product Description

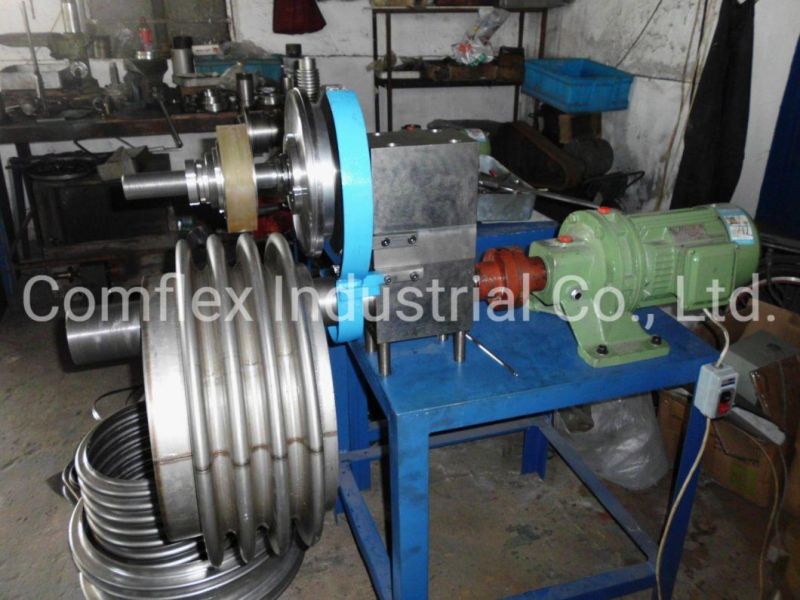

High precision metallic bellow ends cutting machine

Production Description
Double Head Type

Single Head Type



Power: 1.5KW
Size range: DN200-600
Thickness as per following table:

DN	Actual ID	Wall thickness	Height of convolution	Pitch  distance	Width of strip
DN200	Ф199.84	0.8	25	22	630
DN250	Ф249.84	0.8	30	25	787
DN300	Ф299.84	0.8	35	30	944
DN350	Ф349	1.0	38	33	1099
DN400	Ф399	1.0	40	36	1256
DN450	Ф449	1.2	45	40	1414
DN500	Ф499	1.2	50	45	1571
DN550	Ф549	1.2×2	50	55	1728/1738.5
DN600	Ф599	1.2×2	60	60	1885/1896

Operated Process


Relatived Machines

A. Automatic vertical bellow forming machine(One stroke one piece)
* Size range: 32-100mm
* Thickness range: 0.3mm-1mm
* Working principle: Hydraulic



B. YKCX-65D automatic bellow forming machine* Inner diameter of the bellow: 16-60mm
* Thickness of the bellow: customized acceptable
* Toolings/different size changing time is about 15 minutes
* Capacity: 10 seconds for one convolution
* Length of tube before forming: L≤1000mm.
* Use feeding cylinder



2. Automobile exhaust bellow assembly machine

A. Bellow compressing machine                                            B. Cap crimping machine



C. Interlock hose making machine                                      D. Wire braiding machine



Our Customer


Company information
Comflex Industrial Co., Ltd. is professional manufacturer of all types of metal flexible metal hose and hose making machinery, such as corrugated metal hose, square lock and interlock hose/ conduit and machiens with more than 35 years of experience. The hoses are widely used in many industries: gas hose, water hose and wire & cable protection circuit, ect. Our products have been exported to many countries, such as Indonesia, Vietnam, UK, Australia, Canada, USA, Russia, Mexico, Poland, Japan etc...



Our Team


 FAQ
Q: Why choose us for auto exhaust bellow forming and assembly line?
A: We are most professional manufacturer of hose making machine with more than 30 years of experience.
Q: What size can you make?
A: All the sizes from DN32 up to DN100
Q: How many different types of machine can you make?
A: Different types of bellow forming machines
B: Bellow compressing machine
C: Bellow end trimming machine
D. Cap crimping machine
E. Interlock hose making machines
F. Wire braiding machines etc...

We need to know following information to quote you correct machineries:
1. Size range you want to make
2. Technical drawing of the bellow, so that we can check the convolution details.
