• Model NO.：induction heated
• Origin：China
• Production Capacity：100--150 Sets Per Year

Basic Info.

Model NO. induction heated Origin China Production Capacity 100--150 Sets Per Year

Product Description

Company Introduction

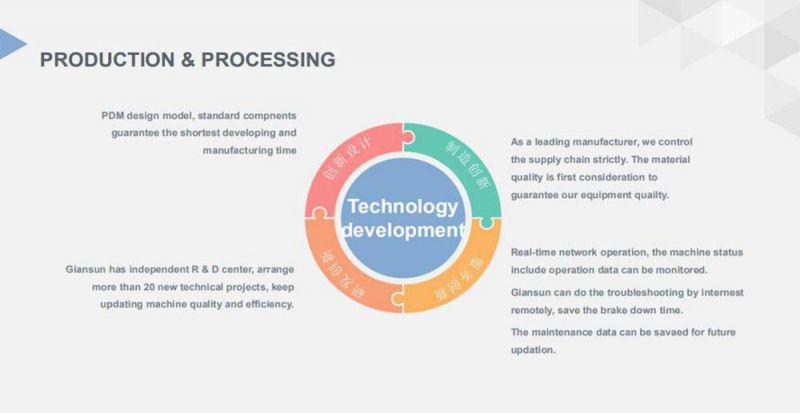

 Leading technology
As leading manufacturer and R&D center in aluminium extrusion, Giansun successfully hold the extrusion seminar, prompt advanced aluminium extrusion technology application.



Issue extrusion mould industry standard.



Share latest extrusion flow and die correction technology regularly with customers and experts

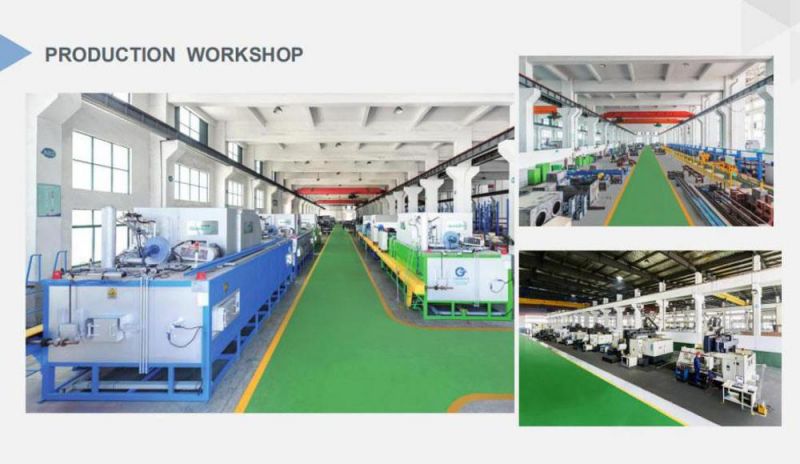

 Production and quality controlModern workshop with 6 sigma & quality control management system.





 Products description

S/N	Item	Parameter
1	Max billet size(mm)	Ф178×800 mm
2	Min billet size(mm)	Ф178×350 mm
3	Billet initial temperature	380ºC-420ºC
4	Heating method	Gas heating furnace + 50HZ-60HZ induction heating furnace (three stage heating)
5	Heating temperature range	450ºC-560ºC
6	Temperature variation(ºC)	Set temperature ±2ºC
7	Radial temperature difference(ºC)	≤5ºC
9	Single billet weight(kg)	About 67.3kg  Ф178×800mm
10	Voltage(v)	380V
11	Frequency(Hz)	50Hz-60HZ
12	Productivity(t/h)	About 40 pieces per hour   increase by 100ºC
13	Rated power (KW)	About 170KW  taper heating by 100ºC (90 seconds per piece, including 14 seconds for billet loading)
14	Energy consumption	About 35-45 kwh/t    Increase by 100ºC    Ф178 ±1mm   length 800 mm
15	Power factor	0.95 adjustable
16	Temperature taper difference	120ºC/m,adjustable
17	Compressed air	0.4-0.6 MPa
18	Cold water consumption(m3/h)	15
19	Water inflow pressure(Mpa)	0.2~0.3
20	Water inflow temperature(ºC)	≤30
21	Water outflow temperature(ºC)	≤50
22	Water quality	PH7-8 total solid content ≤250mg/L
23	Compressed air	0.4-0.6 MPa

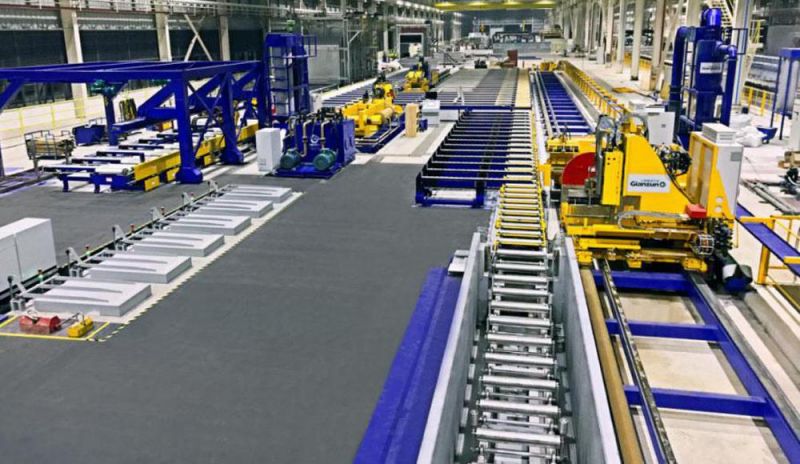

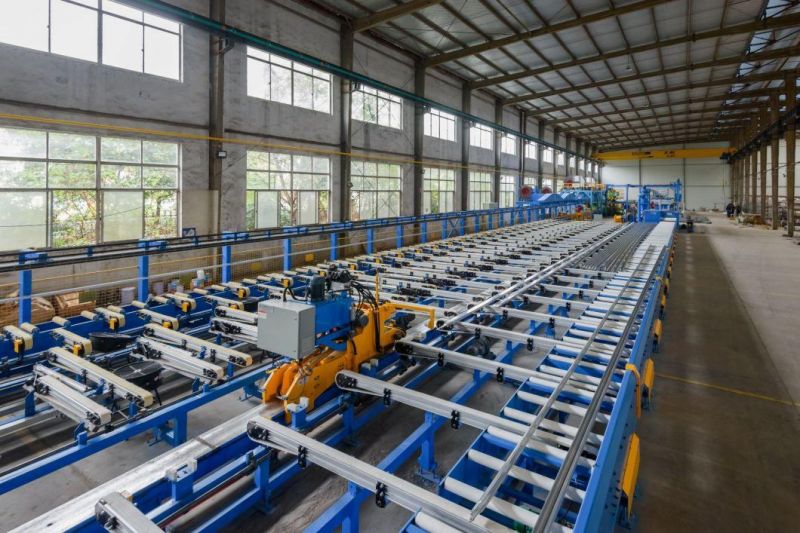

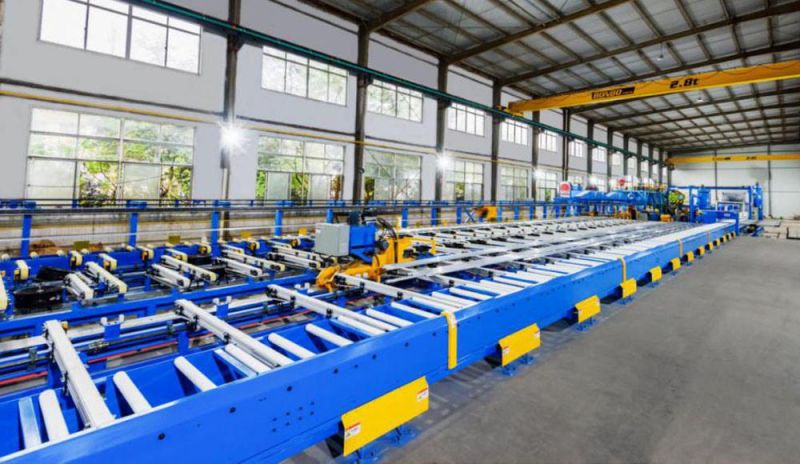

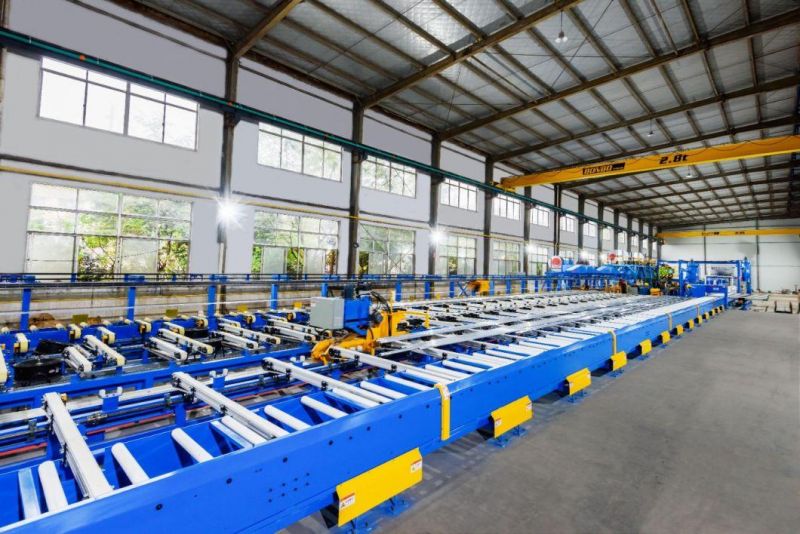

 Project photos for referenceTurkey aluminum extrusion project from 4''--25''.
