Customized Model: Ulye 4 Tons Hydro Pneumatic Clinching Riveting Machine for Metal Sheet with Thickness up to 1.2mm for Each
Dong Guan Usun Fluid Control Equipment Co., Ltd.- Automatic Grade：Semi-Automatic
- Power Supply：Pneumatic
- Warranty：1 Year
- Feeding Way：Manual Control
- Deep Throat：400mm
- Driving Power：Compressed Air
Base Info
- Model NO.：Model: ULYE
- Air Pressure Range：Compressed Air of 3-10 Bar
- Clinching Tool：2 Sets Tool
- Transport Package：Wooden Box Packing
- Specification：1500x750x1850MM
- Trademark：USUN
- Origin：Made in Dong Guan , China
- HS Code：8463900090
- Production Capacity：100 PCS Per Month
Description
Type
ULYE-4 ( maximum 4 tons pressure)
Max. pressing force
40KN
Power source
USUN brand
Power supply
220V/ 50Hz
Max. total stroke
100 mm
Compressed air
5-8 Kg/cm2
Weight
700 Kg
Performance parameters
Point
diameter
(mm)
Sheet
thickness
(mm)
Shear
strength
(N)
Tensile
strength
(N)
Punching
force
(KN)
Φ3
0.5-1.5
260-520
130-360
7-15
Φ4
0.6-2.0
710-1300
350-850
13-28
Φ5
0.9-2.5
750-2000
200-1000
15-30
Φ6
1.0-3.0
560-3400
300-2200
12-40
Φ8
1.6-6.0
510-6200
290-2800
18-60
Φ10
1.75-7.0
1600-8500
800-6200
36-105
Φ12
4.0-11.0
2700-10000
1100-7500
61-125

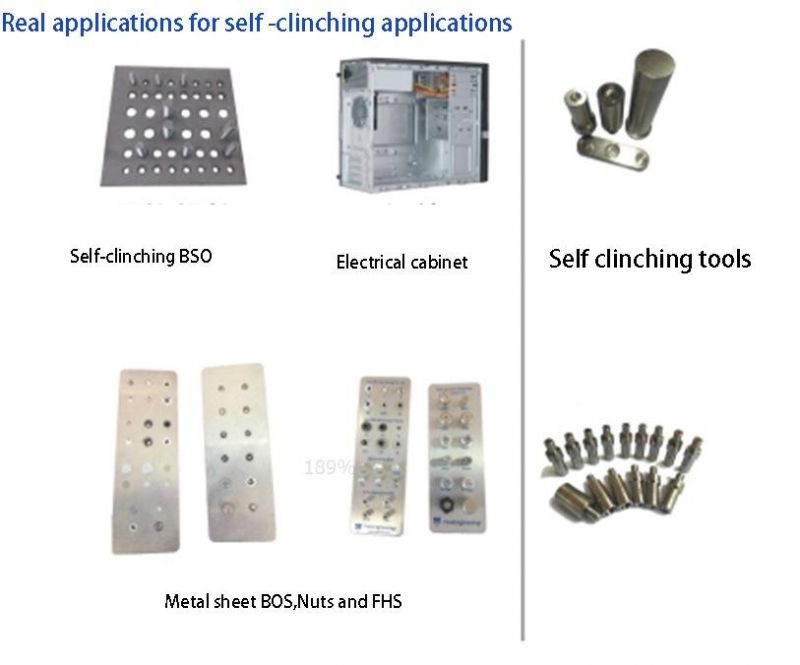

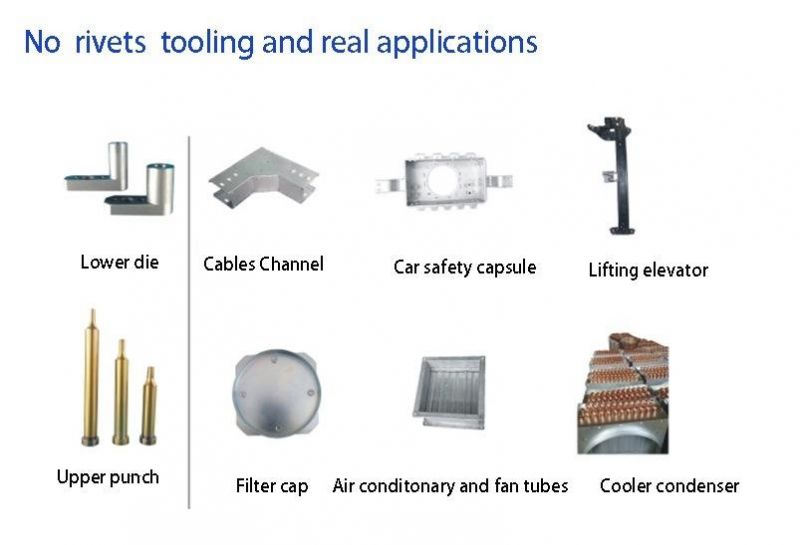

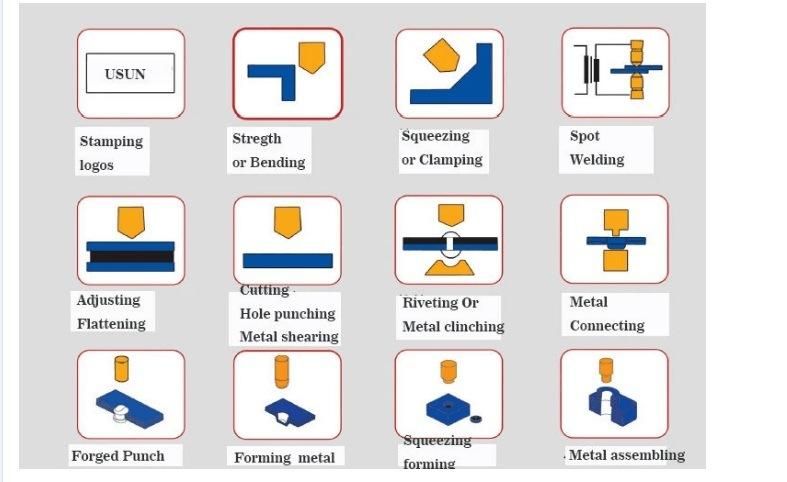

Product applications

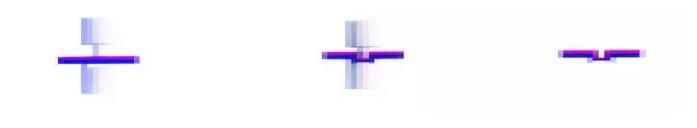

No-rivets clinching procession

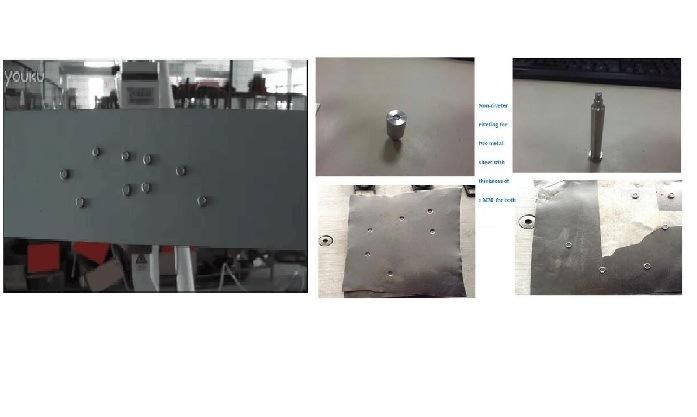

Real clinching samples for riveting machine( Before riveting and after riveting )
