• Model NO.：HY-POE38002
• Condition：New
• Size：2900*2300*2400mm
• Panel：100mm Rockwool Panel
• Heat Converter：Stainless Steel
• Heating System：Electric Heaters
• End-Door：Go-Through Door, Improve Productivity
• Drawing：Available
• User Manual：Available
• Control Box：English Panel, as Required
• Curing Temp：200degree
• Heat Cabinet：Right, Left, or for Option
• Control：Automatic
• Related Product 1：Powder Coating Spray Gun Machine
• Related Product 2：Powder Coating Booth
• Related Product 3：Powder Coating Curing Oven
• Related Product 4：Powder Coating Line
• Transport Package：Standard Package for Sea Shipment
• Specification：10cbm for LCL
• Trademark：N,A
• Origin：China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-POE38002 Condition New Size 2900*2300*2400mm Panel 100mm Rockwool Panel Heat Converter Stainless Steel Heating System Electric Heaters End-Door Go-Through Door, Improve Productivity Drawing Available User Manual Available Control Box English Panel, as Required Curing Temp 200degree Heat Cabinet Right, Left, or for Option Control Automatic Related Product 1 Powder Coating Spray Gun Machine Related Product 2 Powder Coating Booth Related Product 3 Powder Coating Curing Oven Related Product 4 Powder Coating Line Transport Package Standard Package for Sea Shipment Specification 10cbm for LCL Trademark N/A Origin China Production Capacity 100 Set Per Month

Product Description

The powder coating process involves three basic steps:

1. Part preparation or the pre-treatment
2. The powder application
3. Curing

The powder coating process involves the following equipment:
1. Part preparation processes and equipment
2. powder coating spray gun(manually or automatically)
3. powder coating spray booth(manually or automatically)
4. powder coating curing oven(gas, diesel, or electric heating energy for option)
5. powder coating production line(manually or automatically)

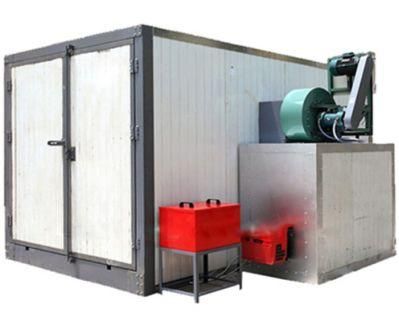

Quick details of the Hongyuan powder coating curing oven with electric heaters for powder spray application
Outer size(D*W*H): 2900*2300*2400mm
Inner Clear size(D*W*H): 2600*2000*2000mm
heating power: Electric heaters.
entry door: two end-door for go through easily and improving the productivity.

Advantages of the Hongyuan powder coating curing oven with electric heaters for powder spray application
factory producer; Italy Riello burner;
10years producing experience;
rich export experience;
in stock for part; fast shipment.

Function of the Hongyuan powder coating curing oven with electric heaters for powder spray application
The powder coating curing oven is mainly for curing the object coated by powders, which is the most important and vital part during the powder coating process.

Features of the Hongyuan powder coating curing oven with electric heaters for powder spray application
1. Walls and roof comprised of galvanised steel plates with high-density Rockwool insulation at 100mm thick.
2. Our advanced design and high quality manufacturing process leads to remarkably low running costs (Especially for the gas consumption).
3. Powerful centrifugal fans and our patented high volume internal duct system allow highly efficient running and give an even heat throughout.
4. Our ovens are controlled by a famous brand components with a simple control panel. This allows accurate cure timing and helps improve fuel efficiency.
5. High quality burners - tried and tested over many years
6. Our manufacturing plant produces heavy-duty ovens, designed and built to last.
7. Flat packed for easy transportation and installation.
8. Each part of oven is checked before shipping.
9. Fully guaranteed &Service contracts available

Parameters of the Hongyuan powder coating curing oven with electric heaters for powder spray application

Model	HY-PO2900G2
Outer size(mm) D*W*H	2900*2300*2400
Inner Clear size(mm) D*W*H	2600*2000*2000
Cabin system	100mm thickness rockwool sandwich panel.
Entry/off door	two-end door, one for in and one for out.
Power supply	GAS
Voltage	110V/220V/380V/450V
Frequency	50-60Hz
Warm-up time	15 min. (180-220° C)
Temp Homogeneity	< ± 3°C if 185°C
Temperature stability	< ± 1°C
Temperature max.	230° C
Air circulation	Hot air circulation
Band of burner	Italy Riello
Warranty	12 months
Transport	By sea
Optional	Size could be custom-made.
Transfer trolley	excluded
Related products	Powder coating gun, powder coating machine, powder coating spray booth, powder coating plant, powder coating spray line

Related products of our Hongyuan powder coating curing oven with electric heaters for powder spray application
powder coating spray booth, powder coating spray machine, powder coating plant, powder coating spray production line, powder coating spray gun and so on.

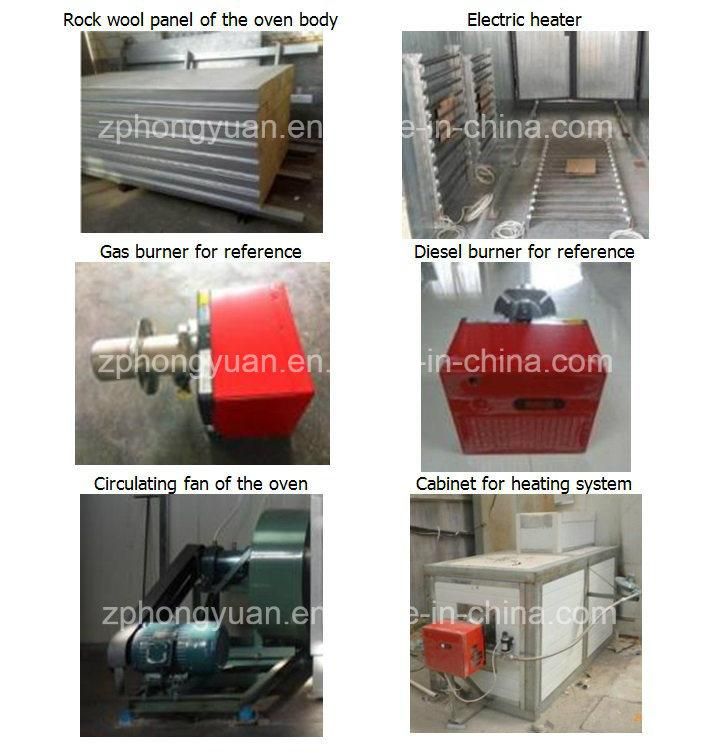

Parts show of Hongyuan powder coating curing oven with electric heaters for powder spray application

Production area and equipment for Hongyuan powder coating curing oven with electric heaters for powder spray application


Package Show of Hongyuan powder coating curing oven with electric heaters for powder spray application


Certificate of our product and company


Our Team is serving you at any time

Send us inquiry for more info about Hongyuan powder coating curing oven with electric heaters for powder spray application
