• Model NO.：828,840
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Mode：828 Tile Roll Forming Machine
• Auto：Fully Automatic
• Feeding Material：Metal Coil
• Feeding Width：1000mm
• Feeding Thickness：0.25-0.7mm Thickness
• Production Speed：2-6m,Min
• Roll Forming Speed：8-12m,Min
• Control Systerm：PLC Computer Control with Inverter
• Size：6500mm*1500mm*1500mm
• Weight：3.2 Tons
• Transport Package：Waterproof Package
• Specification：CE SGS ISO
• Trademark：DIXIN
• Origin：China, Hebei
• HS Code：84552210
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 828/840 Customized Customized Advantage Easy to Maintenance Condition New Mode 828 Tile Roll Forming Machine Auto Fully Automatic Feeding Material Metal Coil Feeding Width 1000mm Feeding Thickness 0.25-0.7mm Thickness Production Speed 2-6m/Min Roll Forming Speed 8-12m/Min Control Systerm PLC Computer Control with Inverter Size 6500mm*1500mm*1500mm Weight 3.2 Tons Transport Package Waterproof Package Specification CE SGS ISO Trademark DIXIN Origin China, Hebei HS Code 84552210 Production Capacity 50 Sets Per Month

Product Description

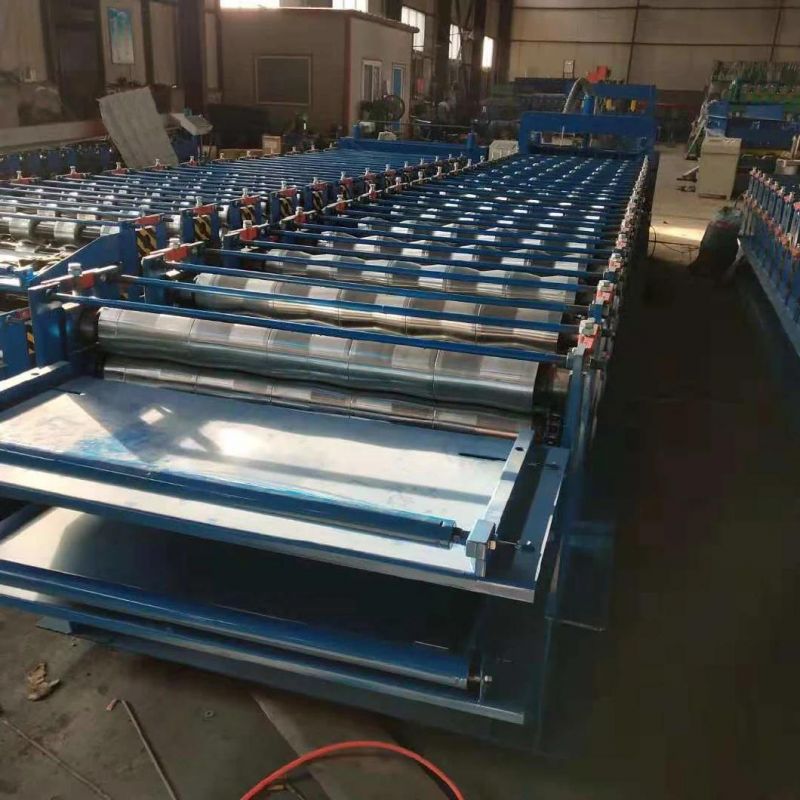

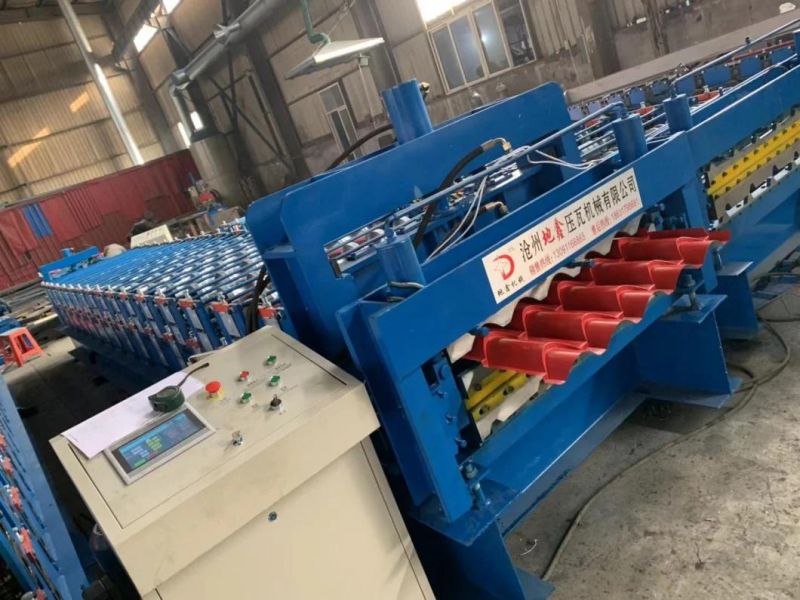

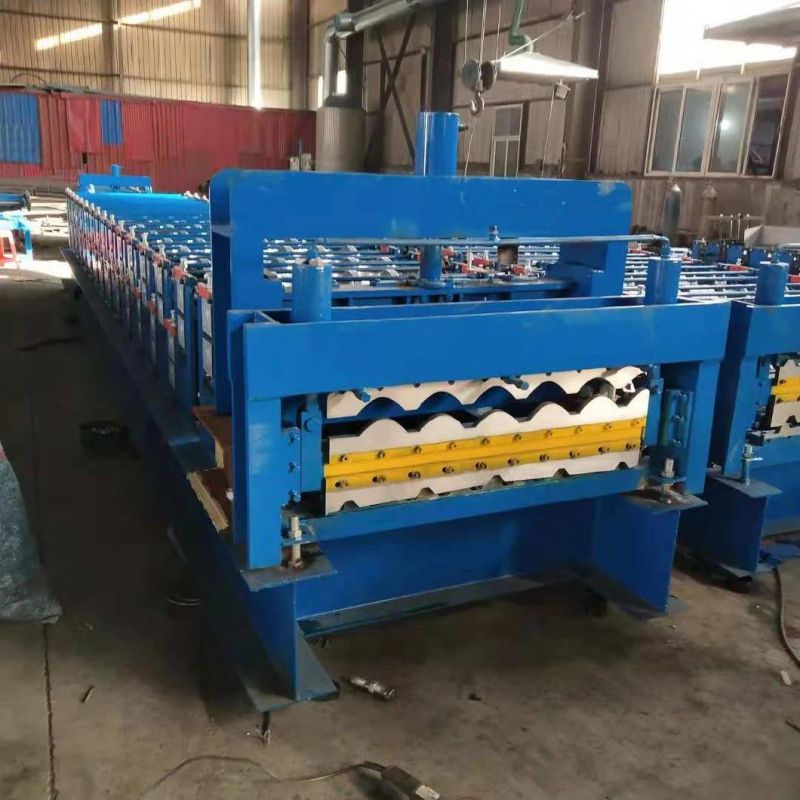

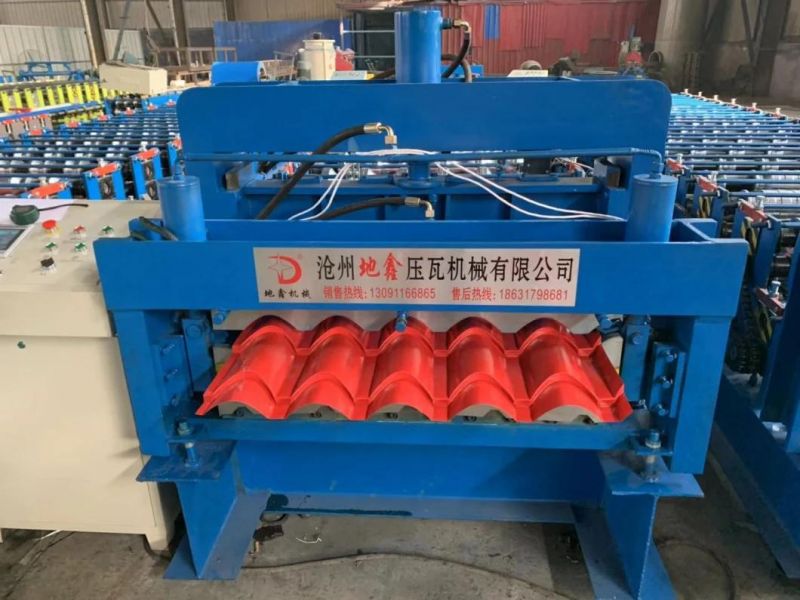

Double layer glazed tile IBR metal sheet roll forming machine
lower cost
high efficiency
reliable working
low energy consumption





2. Technique parameters
(1) processing material: Aluzinc/galvanized steel/colored steel coil
(2) material thickness: 0.3-0.8mm
(3) effective width: 828mm
(4) feeding width: 1000mm
(5) main motor power: 4 kw
(6) pump power: 4 kw
(7) shaft diameter: 75 mm
(8) forming steps: 11 steps
(9) roller material: 45# forged steel, with hard chrome plating
(10) main frame: 300h steel
(11) medium plate thickness: 16mm
(12) control systerm: Plc computer control with inverter
(13) power supply: 380v, 3 phase, 60hz or as your requirement
(14) 0veral sized: 6500mm*1500mm*1500mm
Packing size: 5.7m*1.6m*1.5m(l*w*h), 3.2 tons


3. One manual uncoiler for free and other accessary

4. Loading in a 20 foot container.


5. Service.
Engineer overseas service available

1.  Installation and training:
   a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also
   train your workers/technician face to face.
   b.Without visiting, we will send you user manual and video to teach you to install and operate.
   c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary
   things.
   2. After Service
   a.One year guarantee for whole machine.
   b.24 hours technical support by email or calling

NO.	ADVANTAGE
1	Direct manufacturer Since 2008
2	Golden customer evaluation and complete after-sale service
3	CE,SGS,BV,TUV--
4	Custom design to satisfy trader,factory or personal use.
5	Environmental protection production line ,no harm to environment and animal
6	Easy communication and feedback,professional advice for free
7	Engineer service in your factory available and economic
