• Model NO.：630

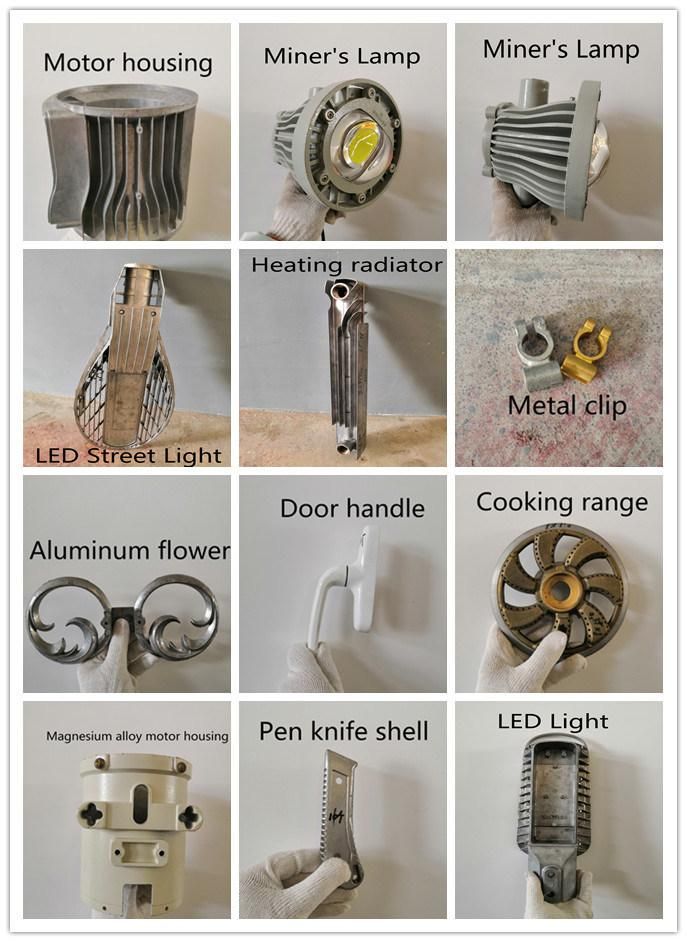

• Usage：Lights, Cars and Motorcycle Accessories
• Features：High Efficiency, Energy Saving, High Yield
• Material：Die Casting Machine Carbon Steel
• Transport Package：Customized
• Specification：8.4*2.2*3.1
• Trademark：longhua Die Casting Machine
• Origin：China(Mainland)
• HS Code：8454301000
• Production Capacity：1set,Sets Per 3-Month

Basic Info.

Model NO. 630 Usage Lights, Cars and Motorcycle Accessories Features High Efficiency, Energy Saving, High Yield Material Die Casting Machine Carbon Steel Transport Package Customized  Specification 8.4*2.2*3.1 Trademark longhua Die Casting Machine Origin China(Mainland) HS Code 8454301000 Production Capacity 1set/Sets Per 3-Month

Product Description

Company Information

Bengbu City Long Hua die casting machine factory was founded in 1982, is a professional R & D, production, sales of die-casting machine, die casting peripheral equipment, die-casting mould of high technology enterprises



On December 10, 2005 Anhui provincial Party secretary Comrade Wang Jinshan, to Long Hua pointed out that the strengthening of science and technology, establish a brand, pay attention to talent, independent innovation"

Longhua was awarded the national science and technology project 2 (National Torch project, major national science and technology projects a). Longhua die-casting machine products has won: "first national Ministry of machinery, products Buyou title", "casting machinery industry standard demonstration unit", "China product quality association member units", "Shou contract re credit enterprises", "import and export Mianjian products", "Alibaba depth inspection factory integrity enterprise", "Anhui Province high technology enterprise" honor.

Long Hua die casting machine products, are to achieve computer aided optimization design (CAD/CAE), hydraulic system using the German technology, Japan's hydraulic technology, the program uses PLC man-machine interface system, human nature, the operation is more simple

Longhua after 35 years of unremitting efforts, long China research and development of magnesium alloy (aluminum) energy saving vacuum die casting machine was awarded the "Anhui Province high-tech projects progress award" a, and gradually won the State Intellectual Property Office nine high-tech patent: a high-tech invention patents, eight Gaoke technology and practical patents.

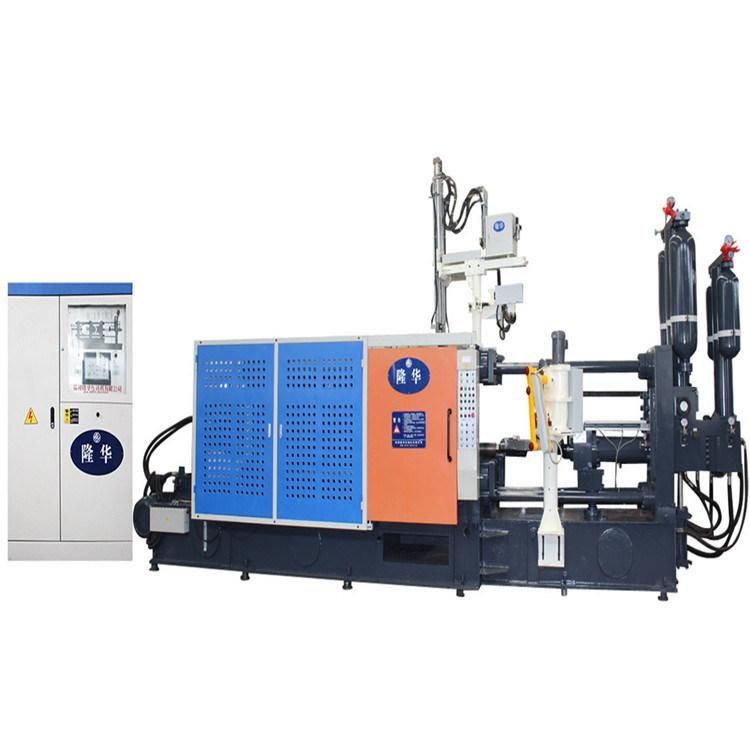

       LH series of standard parameter table (630 t)

Items	Unit	Specification
Hydraulic Working Pressure	MPa	14
Clamping Force	KN	6300
Space Between Tie Bars	mm	750*750
Tie Bar Diameter	mm	¢170
Die Opening Stroke	mm	650
Injecction Force(intensify)	KN	590
Plunger launch distance	mm	250
Injection position	mm	0  --  250
Plunger Diameter	mm	¢70----¢100
Injection Stroke	mm	600
Casting pressure (intensify)	MPa	153/117/92
Casting Fiange Protrusion	mm	15
Casting Fiange Diameter	mm	165
(40Mpa) Max Casting Area Under40Mpa	CM2	1400
lnjection Weight(Al)	Kg	11
Die Height(Min--Max)	mm	350~850
Ejector Force	KN	315
Ejector Steoke	mm	140
Motor Capacity	Kw	30
Machine Dimensions  (L*W*H)	m	8.4*2.2*3.1
Referential Machine Weight For Uplifting	T	30
Oil Tank Capacity	L	1250

WE reserve the right to make any technical improvement without further notice


Main Features

1.  Double proportional control (electric regulation of pressure and flow, with a multi-level pressure and speed control as well as low pressure die close protection functions).
2.  Dual circuit design (air injection and pressure building are separately designed without mutual interference and fault occurrence).
3.  Four-stage (multi-stage) injection system:
     A.Maximum speed> 8M/s (6M / s for those more than 2000T), which can effectively control the filling time and casting formation, in addition to unique braking and uniform acceleration injection function that can effectively prevent flash and allow more flexible injection process.
     B.Minimum speed 0.1-0.7M/s, which can be precisely controlled to prevent air invasion from causing air trap.
     C.Pressure building time ≤15 M/s, which allows to change pressure building speed according to process requirements, strengthening the casting density without causing product distortion.
      D.Dry cycle time is reduced by more than 15%; Oil pump flow increases by more than 20%; Cooler capacity is enhanced by more than 100%; Proportion of conforming finished products rise by 100%; productivity is improved by 20% as compared to the past.
