• Model NO.：Y3180E
• Specification：CE ISO9001 RoHS
• Trademark：L&T
• Origin：Tengzhou China
• HS Code：8461409000
• Production Capacity：50 PCS,Month

Basic Info.

Model NO. Y3180E Specification CE ISO9001 RoHS Trademark L&T Origin Tengzhou China HS Code 8461409000 Production Capacity 50 PCS/Month

Product Description

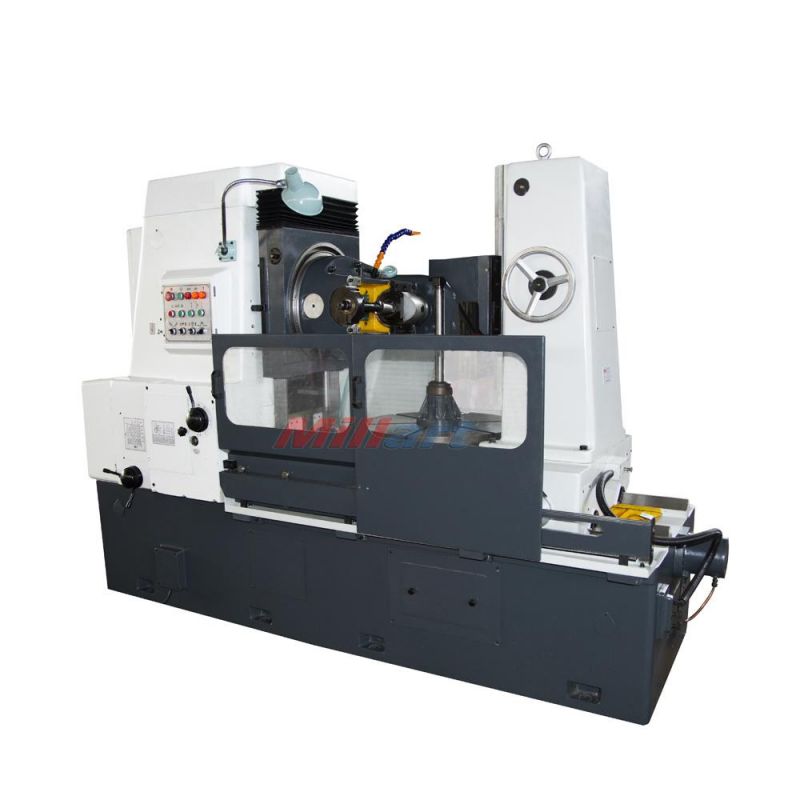

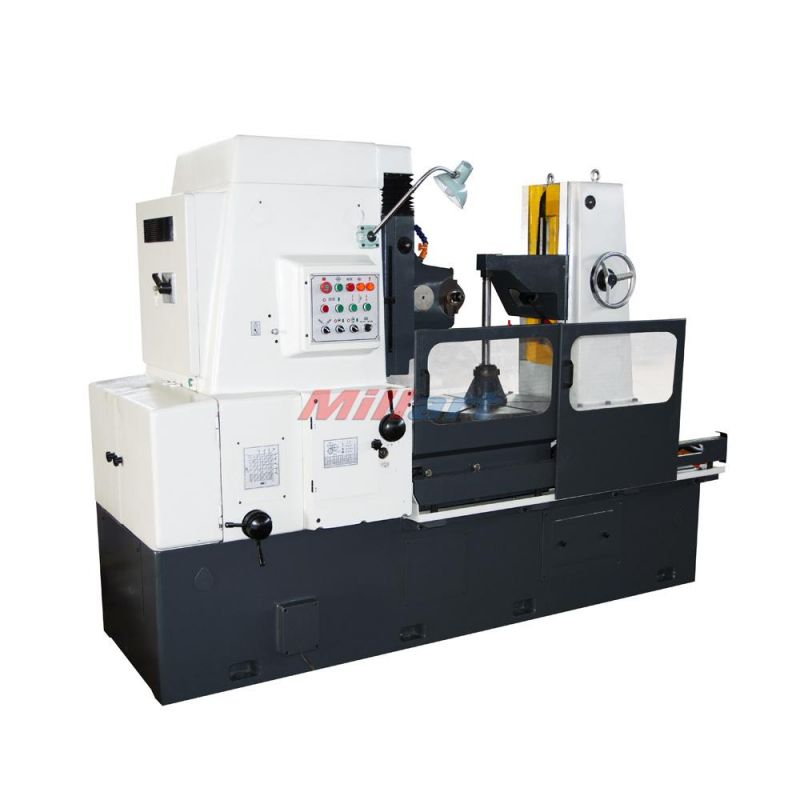

China High Precision CNC Gear Cutting Machine Y3180EFeature:1. The machine is suitable for large batch and single production of cylindrical spur and helical gears, worm gears and sprocket.
2. The machine is characterized by good rigidity, high strength, high working accuracy, and easy in operation and maintain.
3. The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.
Technical parameter:

Specifications	Unit	Y3180E
Max. Dia of workpiece (with/without back column)	mm	800/550
Max. machining width	mm	500
Max. hobbing modulus	mm	10/8
Min.hobbing gear teeth		7
Max.travel of carriage in vertical direction	mm	530
Max.Helix angle in cutting bevel gear		±45
Distance between axis of cutter and worktable	mm	235-765
Tool spindle bore taper		MT5
Max.diameter of cutter	mm	160
Max.length of cutter	mm	180
Max.Axial movement of cutter	mm	180
Hobbing arbor diameter(changeable)	mm	27 32 40
Distance from hob axis to worktable center	mm	50-550
Max. worktable speed	r/min	7.8
Worktable diameter	mm	650
Worktable bore diameter	mm	80
Spindle speed steps		8
Spindle speed range	rpm	40-200
Axial feed range	mm/r	12 steps0.4-4
Main motor power	kW	5.5
N.W/G.W	kg	5800
Overall size	cm	276x142x203
