• Model NO.：Y3150E
• Specification：CE ISO9001 RoHS
• Trademark：L&T
• Origin：Tengzhou China
• HS Code：8461409000
• Production Capacity：50 PCS,Month

Basic Info.

Model NO. Y3150E Specification CE ISO9001 RoHS Trademark L&T Origin Tengzhou China HS Code 8461409000 Production Capacity 50 PCS/Month

Product Description

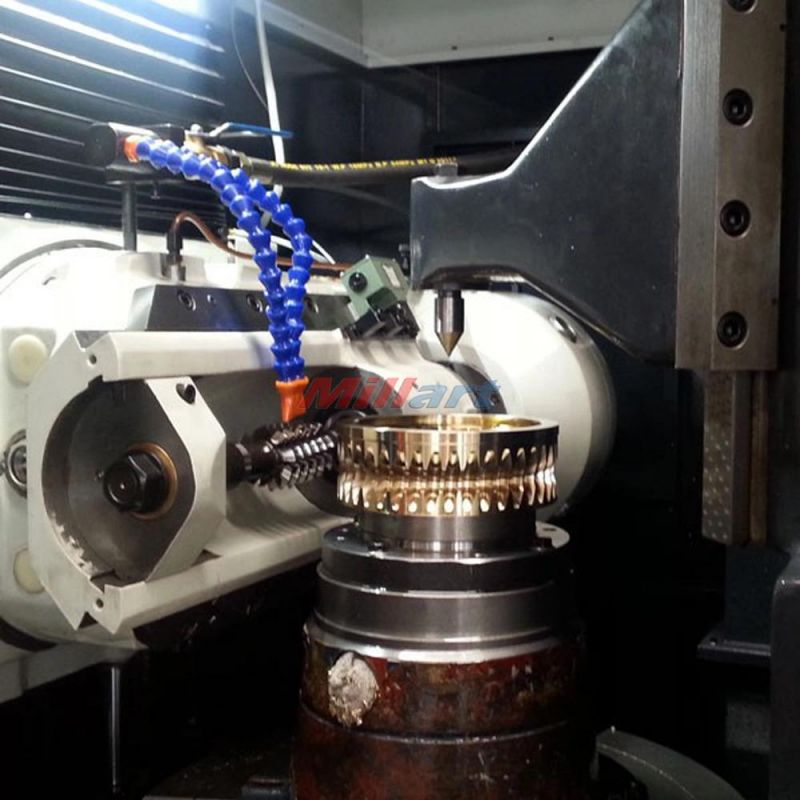

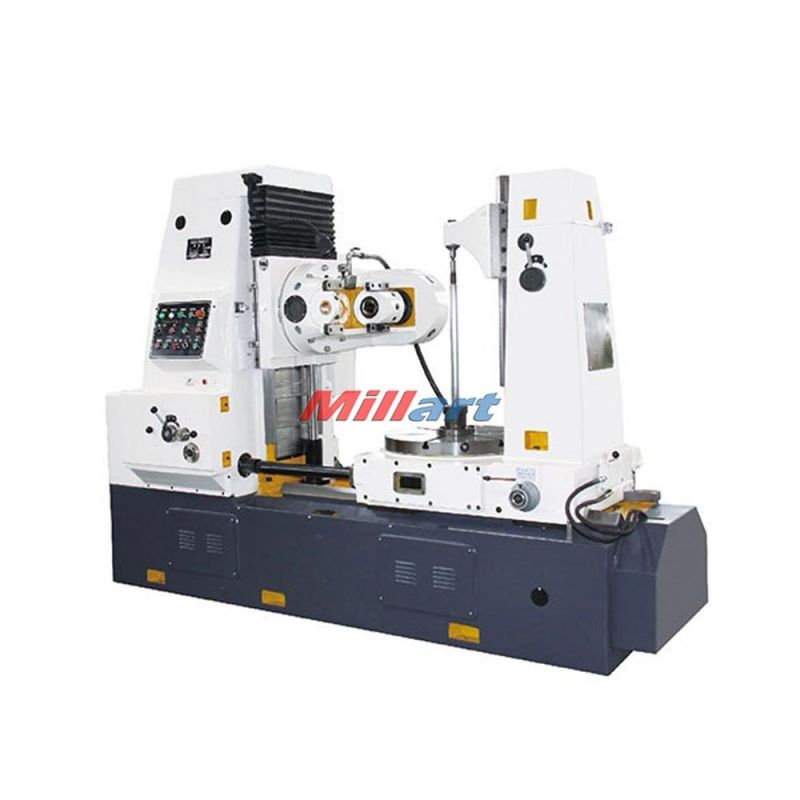

Gear Hobbing Machine Y3150E Mechanical Gear Cutting Machine


Features:1. The machine is suitable for large batch and single production of cylindrical spur and helical gears, worm gears and sprocket.
2. The machine is characterized by good rigidity, high strength, high working accuracy, and easy in operation and maintain.
3. The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.
Technical parameter:

Specifications	Unit	Y3150E
Max. Dia of workpiece (with/without back column)	mm	500/500
Max. machining width	mm	300
Max. hobbing modulus	mm	8/6
Min.hobbing gear teeth		5
Max.travel of carriage in vertical direction	mm	400
Max.Helix angle in cutting bevel gear		±45
Distance between axis of cutter and worktable	mm	235-635
Tool spindle bore taper		MT5
Max.diameter of cutter	mm	160
Max.length of cutter	mm	180
Max.Axial movement of cutter	mm	180
Hobbing arbor diameter(changeable)	mm	22 27 32
Distance from hob axis to worktable center	mm	30-330
Max. worktable speed	r/min	7.8
Worktable diameter	mm	510
Worktable bore diameter	mm	80
Spindle speed steps		9
Spindle speed range	rpm	40-250
Axial feed range	mm/r	12 steps0.4-4
Main motor power	kW	4
N.W/G.W	kg	4500
Overall size	cm	244x127x192
