Efficiency Table Edge Milling Machine (XBJ)

Shanghai Taole Machine Co., Ltd.
  • After-sales Service：Online Service or Remote Assist
  • Warranty：1 Year Guarantee
  • Type：Plate Beveling Machine
  • Style：Desktop
  • Layout：Horizontal
  • Automatic Grade：Semi-Automatic

Base Info

  • Model NO.：GMM-S,D
  • Power Source：Electric
  • Certification：CE, ISO
  • Stroke Length：2,3,6,12,15,18,20 Meter
  • Plate Thickness：3-120mm
  • Top Bevel Angel：0-85 Degree
  • Bottom Bevel Angel：0--45 Degree
  • Transport Package：Pallet and Wrapping in Ot Container
  • Specification：6 meter length stroke
  • Trademark：TAOLE
  • Origin：Shanghai, China
  • HS Code：846090
  • Production Capacity：20 Sets Per Month

Description

Machine
SizeL mm6120812011120141201812020120W mm224022402240224022402240H mm200021002200228023502450
Equipment Composition:
Machine including below main parts: 1) Machine Body   2)Machine Column  3) Material Clamping Beam 4) Hydro cylinder 5) Rise and Fall Pillar   6) Milling Spindle Head  7) Power Drive  8) Guide Rail 9) Milling Head  10) Hydraulic Control System  11) Electric control box  12) Lubrication device  13) Conductive Device  14) Protection Device  15) Position Device  16) Material Feeding Device  17) PaintingEfficiency Table Edge Milling Machine (XBJ)
Equipment Functions for Efficiency table edge milling machine (XBJ)

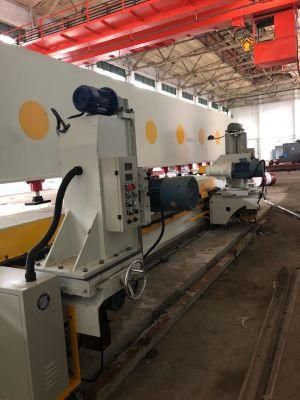

Double Spindle HeadsTwo Seperate Spindle Head and Drive Device on Guide Rail.
Both heads could achieve plate beveling.
When both heads working on same plates.Could achieve max plate stroke at 6 meters.
Main Function: 1)When Thick plate with bevel angel. It could be more efficiency.
2)Machine will be cost effective while need K/X bevel or large bevel QTY
Working StokeGMM-D6000 means 6000mm(6 Meters) Stroke
Double Spindle Heads could be same direction with effective stroke at 6 meters for both Spindle Heads.

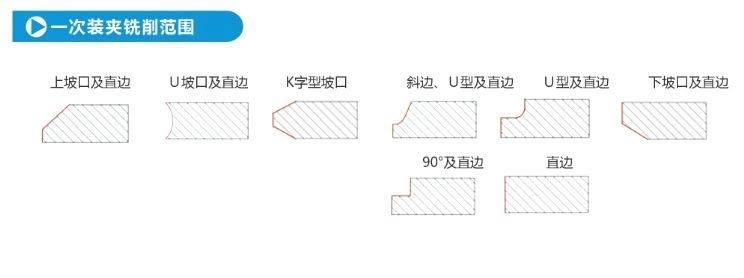

Double Sided Edge MillingCould process double sided beveling by adjusting bevel angel.
No need second machine adjustment.

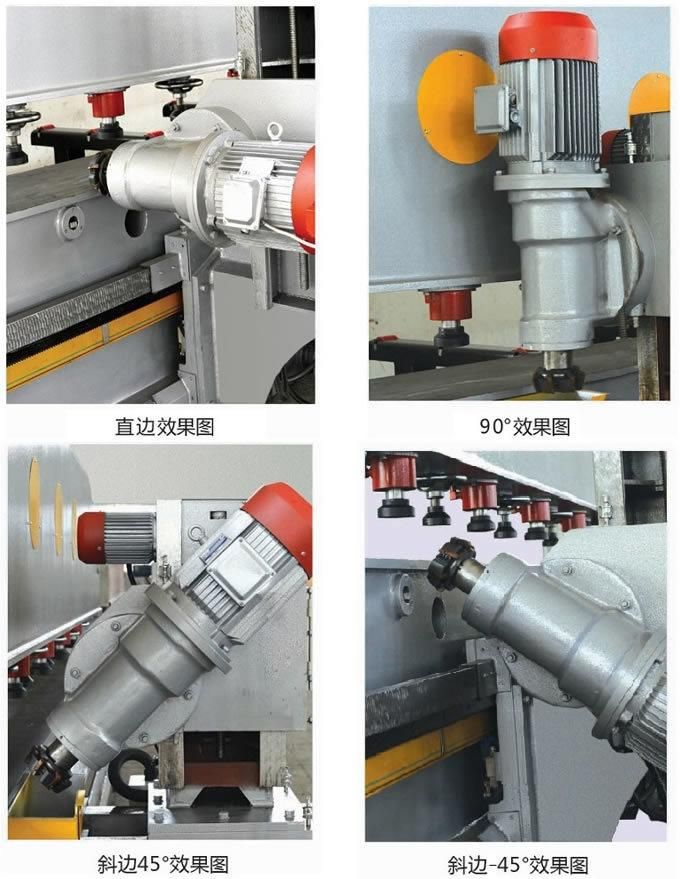

Both milling head could be adjustable between - 45 degree to 85 degree

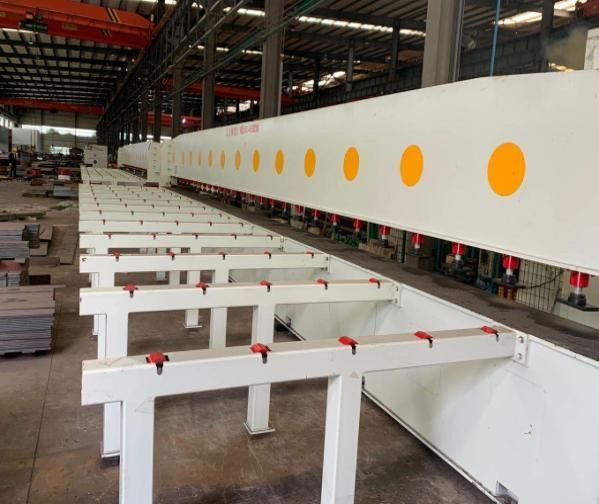

Full Hydraulic CylinderPlate Pressure by Cylinder in 6 meters.
Pressure Foot Size can be customized as per plate sizes. (Specially on Small plates)
6 meters stroke with total 15 sets of pressure Foot, Clamping plate 200*100mm suggested to ensure high pressure
Inlaying Steel Guide WayMilling Machine guide Rail adopts integral one-time molding, service life could be 20 years. Small bed deformation leads structure more firm and stable. Guide rial surface artificial scraper grind cross-stitch, increase the drag plate and wear surface with section 40 Cr Steel bar.Completely solve the problems.
Low shaking, high speed, higher surface performance, less blade loss.
Walking ReducerHard surface parallel helical gear low noise high torque reducer
Model:FCA77/142.27-IEC90B5/YF90L-4 Adjustable,
Higher speed on walking and return could reach 450-2500mm/min
Setting with Brand VFD
Milling Head MotorMotor Power 7.5KW,Using Siemens Brand
Spindle Speed adjustable for multi metal material
Complete Machine DesignComplete machine design for improving edge milling machine Linear accuracy and rigid strength
Support BracketSupport bracket length2 meters and width 1.2 meters for better metal support considering the machines sizes and plate sizes.
Milling End Positioning DevicePositioning Device setting at table edge which is easy to remove or load. This stopper is suitable for processing small plate and thin plate which is convenient and fast.
Hydraulic Pressure DeviceDynamic Pressure retaining system.
Power saving and prolong service life
Electric PartsComplete electric components are 95%  Brands
