• Model NO.：YCKJ_TGJ
• Transport Package：Box
• Specification：Q235 or 304SS
• Trademark：Yachuang Technology
• Origin：Fuzhou Fujian
• Production Capacity：20 Pieces ,Year

Basic Info.

Model NO. YCKJ_TGJ Transport Package Box Specification Q235 or 304SS Trademark Yachuang Technology Origin Fuzhou Fujian Production Capacity 20 Pieces /Year

Product Description

The steel pusher is a special equipment to push the billet into the heating furnace for heating in the steel rolling production line.The main function is to complete the loading of raw materials and the delivery of raw materials in the furnace.It makes full use of the advantages that hydraulic cylinder and hydraulic system of large output, small volume and easy to operate.Not only the material pushing process is reduced, but also reduce the cost of equipment..Compared with the old mechanical steel pusher, the floor area is reduced to the original 1/2-1/3, easier to operate, and longer-term stable performance.The steel pusher consists of pedestal,hydraulic cylinder,guide rod,pusher,hydraulic system and control system.


1)Pedestal
  Welded by section steel and steel plate, it supports and fixes the stable operation of oil cylinder.
2)Hydraulic cylinder
  The cylinder is made of high-strength seamless steel tube, which ensures the  inside of the cylinder wall  is smooth and reduces the friction of the sealing ring.The cylinder rod is made of high quality 45#, with hard chrome plating on the surface to prolong the service life of the cylinder rod.
3)Guide rod
  Made of 45# round steel, ensure the vertical operation of the cylinder, and push billet smoothly  into the furnace.
4)Push top
  Install on the end of the hydraulic cylinder and guide rod,walking with the cylinder sticking out.
5)Hydraulic system
  It is composed of hydraulic station,oil pump motor,air filter,oil return filter,valve block and oil pipe,etc.It has the function of supplying oil and driving oil cylinder.

6)Control system
  Keep away from the pushing area,stop the pump freely,relieve the pressure,start smoothly and ensure safe operation.

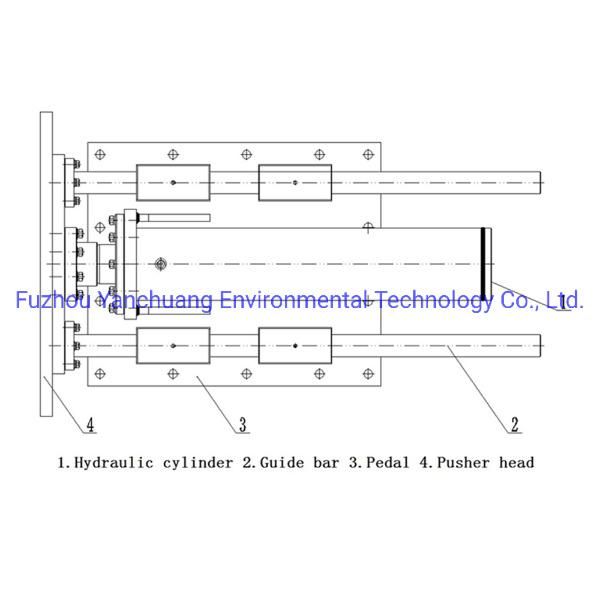

1.hydraulic cylinder  2.guide rod  3.pedestal  4.push top
