High Quality Spring Making Machine with Servo Cutter for Agricultural Machinery Spring
Dongguan Might Precision Machinery Co., Ltd.- After-sales Service:After Sales Service
- Control Type:CNC
- Axis Count:13axis
- Warranty:1 Year
- Model:St60-12r
- Axis:12 or Customized
Base Info
- Model NO.:ST60-12R
- Advantage:Customized Design
- Transport Package:Wooden Case
- Specification:3700*2150*2100MM
- Trademark:Might
- Origin:China
- HS Code:84633000
- Production Capacity:200
Description
Basic Info.
Model NO. ST60-12R Advantage Customized Design Transport Package Wooden Case Specification 3700*2150*2100MM Trademark Might Origin China HS Code 84633000 Production Capacity 200Product Description
Might & Joint Spring Machinery--Professional for Camless CNC Spring Machine over 20 years, the leader for Camless CNC Spring Machine Industry.
Company Profile:

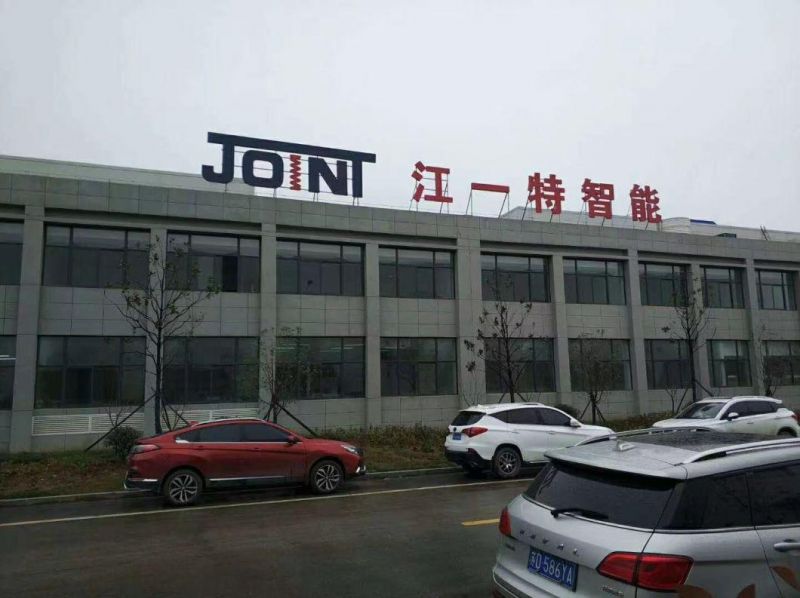

Might & Joint (Dongguan Might Precision Machinery Co., Ltd) is professional in researching, developing, manufacturing and selling Camless CNC spring machine. Its current leading products including CNC Versatile Spring Forming Machine & CNC Compression Spring Machine &Automatic 3D/2D Wire Bending machine, the wire size covers 0.15mm to 20.0mm. We are good at machinery design and development according to customer's detailed requirements with the strong technical team , machine set up team,and R&D team.

Product Specification:

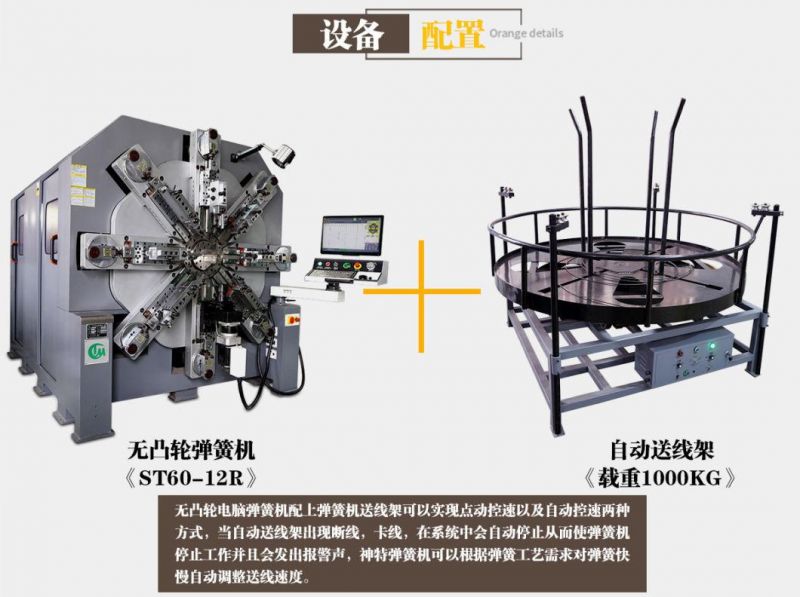

1. Camless spring forming machine ST60-12R combines precision CNC controlled servo-motion system and conveniences of mechanization.
2. It is suitable for various kinds of spring products through a simplified setup and programming procedure.
3. It is equipped with seven slights ,one free arm ,wire feeding ,quotation rotation.
4. We design tools for individual purposes such as bending, coiling, pitching, forming, and cutting.
5. Working spaces and angles are considered very carefully to develop portable tool holders for straight movement or supporting movement from other slides.

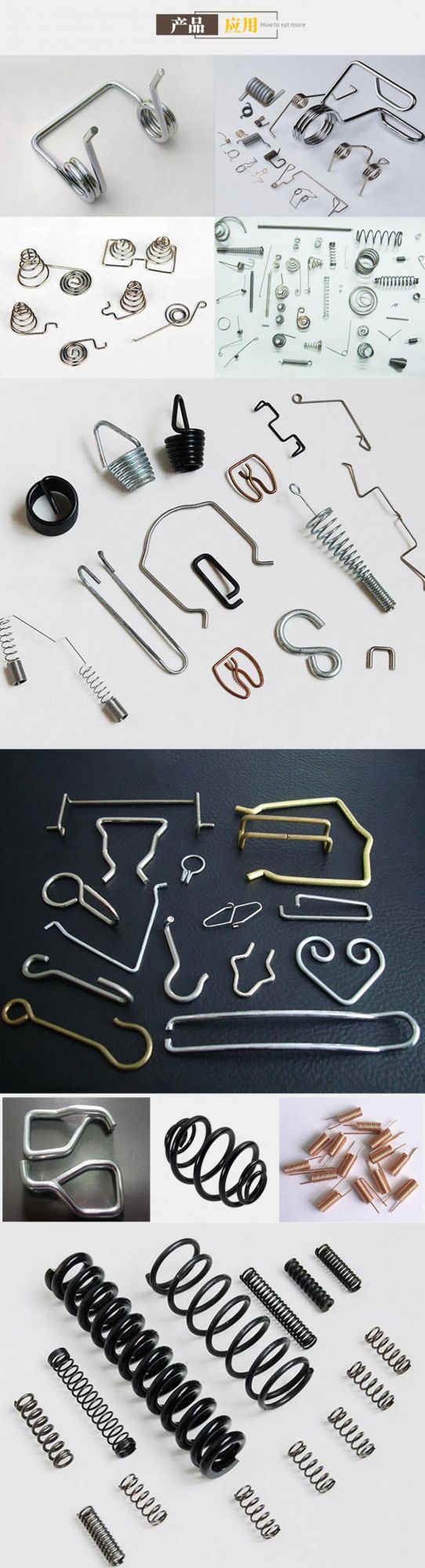

6. It can make various kinds of spring from wire diameter 2.8mm to6.0mm.

Model | ST60-12R |
Min Wire Feeding Value | 0.01MM |
Axes Number | 12 (can be added to 16) |
Max wire Feeding Value | 10000.00MM |
Wire size range | 2.8-6.0mm |
Max Wire Feeding Speed | 120M/Min |
Max. Feeding length | unlimited |
Total output power of servo motors | 37.7KW |
Input Power Supply | 380V/50HZ/3PH |
Control System | self developed system |
Probe No. | 3 |
Net Length | 3700MM |
Net Width | 2150MM |
Net Height | 2100MM |
Net Weight | 7000KGS |
