• Model NO.：40
• Certification：ISO, Ce
• Condition：New
• Color：Optional
• Warranty：12 Months
• Technical Support：Overseas Technical Support
• Feature：Hot-Selling
• Style：First-Rate
• Function：Durable
• Transport Package：Plastic
• Specification：40 heads
• Trademark：HOOHA
• Origin：Guangdong
• Production Capacity：10,Sets

Basic Info.

Model NO. 40 Certification ISO, Ce Condition New Color Optional Warranty 12 Months Technical Support Overseas Technical Support Feature Hot-Selling Style First-Rate Function Durable Transport Package Plastic Specification 40 heads Trademark HOOHA Origin Guangdong Production Capacity 10/Sets

Product Description

Cable Machine 40 Heads Tinning Plating Machine Tin-Plating Making Machine

1.Application of the equipment

It is suitable for softening wire and tin plating.

2.Technical parameters

Production line: 0.05-0.08mm
Production head: 40 heads
Suitable for take-up bobbin: φ250 bobbin (half shaft).
Pay OFF way :Use pay off part
Specifications for Dice pattern: 0.0525+_0.001mm, 0.0835+_0.001mm, 0.1630+_0.001mm each 10PCS)
Coiling part: ceramic roller, variable frequency control
Take up:48head  (12*2 double layer take)
Tension control: Single head control plus total control.
Pass line guide roll :The combination of ceramic guide wheel and 45 aluminum alloy ceramic guide wheel.
Installation size:The production line is 18 m 24 m wide and 2 m wide
Service voltage: three phase 220V 50HZ
Total capacity: 50KW



3. Electrical control cabinet brands


Name	Brand	Place of Origin	Note
Frequency converter	YAUGAWA	Japan
Temperature control chart	RKC	Japan
Meter counter meter	INVANCE	China
Air switch	LS	Korea
AC contactor	LS	Korea
Selector switch	TEND	Taiwan
Travel switch	TEND	Taiwan
Torque motor	JINGTE	China	48SET
Voltage regulator	TAIHAO	China	48SET +2SET KVA
Gear motor	MCH	Taiwan	4SET

4. Tinning furnace

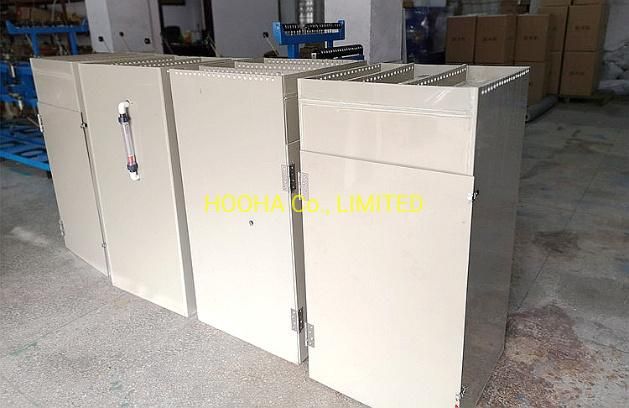

1 Flux box and cleaning water tank: the material is made of acid resistant PVC plate, and then the flowmeter is installed.
2 Tin furnace: using 8mm thick 304# stainless steel plate bending precision welding molding, with fast heating, uniform temperature and so on. The Japanese RKC temperature control meter and thermocouple are divided into two sections to control the temperature, set over temperature alarm, and the dice box size is 24.5*7 (T).
3 Using316 stainless steel heating tube to heat, built in Lu Yang heat insulation cotton, fiberboard, heat preservation and heat insulation performance is good.
4 The Frame is welded by GB 3mm A3 plate and the GB 50 angle iron.

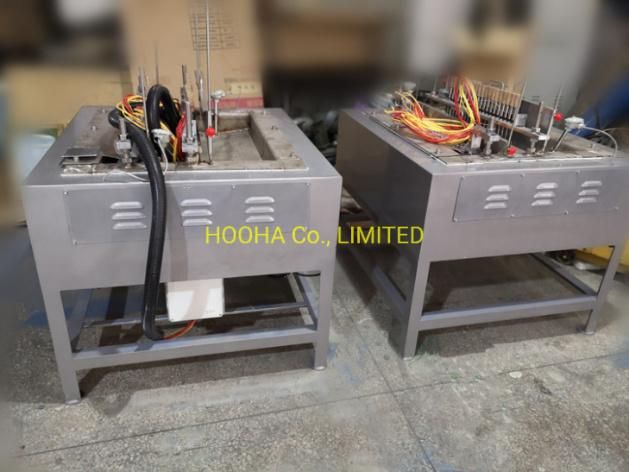

5 Tin furnace reference picture (two sets of temperature control)

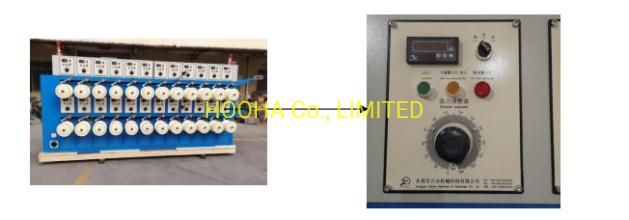

5.Take up parts

Take up parts(single side take-up machine with 24heads):

1.The frame made up of GB A3 plate and /T6.0mm steel
2 The body is 48 head integrated. It adopts single torque transmission belt brake, voltage regulator speed control, independent control + total control
3 Metering the meter separately, advance the yellow light to the meter, stop the red warning light and speed up the decelerator, and the meter error is less than 0.2%. (green light, yellow light to meter warning, red light break warning)
4 tension control: single head control plus total control.
5 the transmission line adopts rack and deceleration motor and frequency conversion speed regulation.
6 Applicable take-up bobbin: φ 250mm (half shaft)

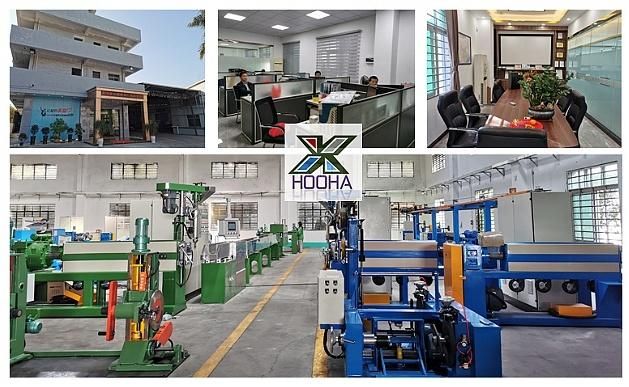

6. Know about us

(1) HOOHA GROUP provide a series of solution based on the real need of our customers in the field of wire and cable making machine. We offer the layout design of cable plant, machine shipping and installation, and subsequent equipment operation training and so on. It means you only spend less money on machine and can enjoy such services and save time.We are committed to providing you with cost-effective products to reduce your concerns.

(2) Throughout the entire trade operation process, we strictly control every handover step with highly efficiency in order to guarantee the best products being sent to our customers within the required time.

(3) Our corporate culture is growing together with customers. Helping customers achieve greater development through cooperation with us is what we have been doing.

Company name	HOOHA Co.,Ltd
Established	2003
Main products	Upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
Value added service	Include factory planning, cable raw material supply,cable equipment layout,cable technology export,technical support and operation training and cable testing laboratory construction.
Factory location	Humen Town,Dongguan City,Guangdong province.
Manufacturing Center	4000 sqm
Showroom	More than 2000 sqm.

7. FAQ2:What kind of exhibitions that HOOHA team are attending ?

1. Shenyang Wire & Cable Industrial Exhibition
2. Guangdong Wire & Cable Machinery Exhibition
3. Guangzhou Wire & Cable Exhibition
4. Shanghai International Wire & Tube Exhibition
5. Shanghai Wire & Cable Industrial Exhibition
6. Indonesia Wire And Cable Industrial Exhibition
7. Dongguan UL Wire And Cable Exhibition



8. Advantages of HOOHA

1.We are the cable equipment manufacturer.
2.Professional engineer team with long-term research and development in the field of cable equipment.
3.Provides high frequency capacity manufacturing machines. Keep the machine running all day.
4.Our machine use the international qualified brand components,like Siemens,Omron,Nsk,lg etc
5.Technical support and spare parts service.
6.Rich experience in overseas technical training and operation training.
7.Professional and responsible team to ensure efficient communication,help to save time and human cost for customers.
8.Systematic experienced foreign trade team to ensure service quality.
9.Working hard to meet customers' needs.



9. FAQ


Q1:What is your main brand for the electrical and mechanical parts?
A:China famous brand and taiwan brand.

Q2:Could we appoint the parts brand?
A: Yes,SIEMENS, Danfoss,Yaskawa, or theirs that you like

Q3:Could you please arrange the installation and commissioning?
A: Yes,we could and the buyer pay the charge

Q4:Could you arrange the production education?
A:Yes,we could and the buyer pay the charge

Q5:Could you do the design for the whole plant
A: Yes , we can.

Q6:What is the difference with other supplier?
A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .

Q7:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.

Q8:How long the guarantee ?
A: one year and charge for repair the whole life.

Q9:Do you have a video tips for the machine running ?
A. Yes,we have,our youtube channel : tiezhong chi /HOOHAWIREMACHINE
