• Model NO.：40
• Certification：ISO, Ce
• Condition：New
• Color：Optional
• Warranty：12 Months
• Technical Support：Overseas Support
• Feature：Hot-Selling
• Style：First-Rate
• Wire Size：0.08mm-0.32mm
• Line Speed：300 M,Min
• Pay off Spool：300 mm
• Tinning Power：15 Kw
• Transport Package：Plastic
• Specification：40 heads
• Trademark：HOOHA
• Origin：Guangdong
• HS Code：8477900000
• Production Capacity：10,Sets

Basic Info.

Model NO. 40 Certification ISO, Ce Condition New Color Optional Warranty 12 Months Technical Support Overseas Support Feature Hot-Selling Style First-Rate Wire Size 0.08mm-0.32mm Line Speed 300 M/Min Pay off Spool 300 mm Tinning Power 15 Kw Transport Package Plastic Specification 40 heads Trademark HOOHA Origin Guangdong HS Code 8477900000 Production Capacity 10/Sets

Product Description

Wire drawing machine annealing,tinning machine

1.Application of the equipment
It is suitable for softening wire and tin plating.

2. Technical parameters
Production line: 0.05-0.08mm
Production head: 40 heads
Suitable for take-up bobbin: φ250 bobbin (half shaft).
Pay OFF way :Use pay off part
Specifications for Dice pattern: 0.0525+_0.001mm, 0.0835+_0.001mm, 0.1630+_0.001mm each 10PCS)
Coiling part: ceramic roller, variable frequency control
Take up:48head  (12*2 double layer take)
Tension control: Single head control plus total control.
Pass line guide roll :The combination of ceramic guide wheel and 45 aluminum alloy ceramic guide wheel.
Installation size:The production line is 18 m 24 m wide and 2 m wide
Service voltage: three phase 220V 50HZ
Total capacity: 50KW

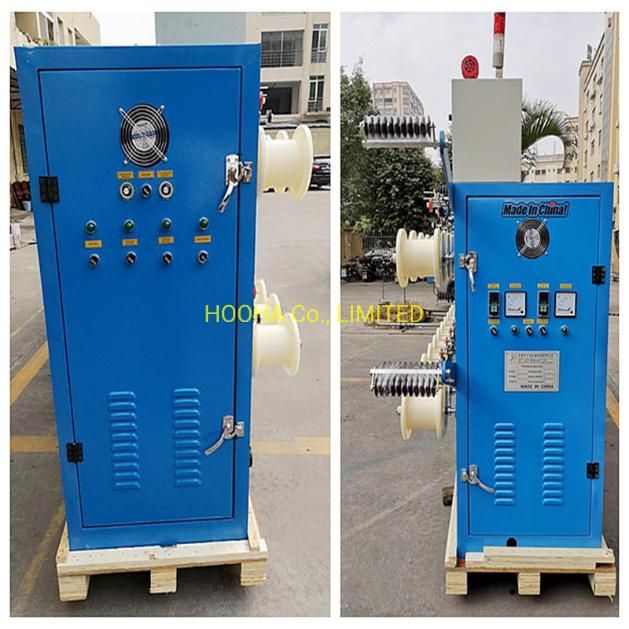

3. Electrical control cabinet brands


Name	Brand	Place of Origin	Note
Frequency converter	YAUGAWA	Japan
Temperature control chart	RKC	Japan
Meter counter meter	INVANCE	China
Air switch	LS	Korea
AC contactor	LS	Korea
Selector switch	TEND	Taiwan
Travel switch	TEND	Taiwan
Torque motor	JINGTE	China	48SET
Voltage regulator	TAIHAO	China	48SET +2SET KVA
Gear motor	MCH	Taiwan	4SET

4. Tinning furnace

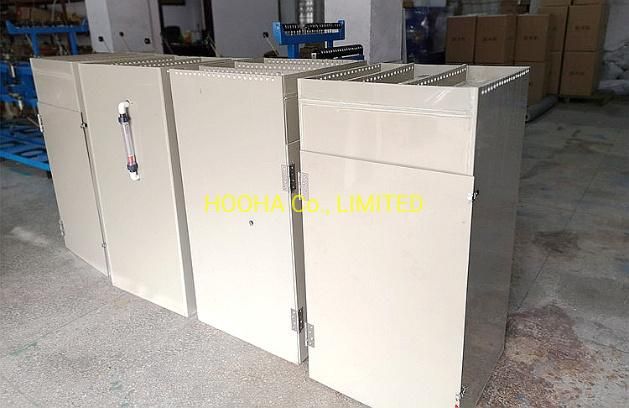

1 Flux box and cleaning water tank: the material is made of acid resistant PVC plate, and then the flowmeter is installed.
2 Tin furnace: using 8mm thick 304# stainless steel plate bending precision welding molding, with fast heating, uniform temperature and so on. The Japanese RKC temperature control meter and thermocouple are divided into two sections to control the temperature, set over temperature alarm, and the dice box size is 24.5*7 (T).
3 Using316 stainless steel heating tube to heat, built in Lu Yang heat insulation cotton, fiberboard, heat preservation and heat insulation performance is good.
4 The Frame is welded by GB 3mm A3 plate and the GB 50 angle iron.
5 Tin furnace reference picture (two sets of temperature control)



5. Company profile


Company name	HOOHA Co.,Ltd
Established	2003
Main products	Upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
Value added service	Include factory planning, cable raw material supply,cable equipment layout,cable technology export,technical support and operation training and cable testing laboratory construction.
Factory location	Humen Town,Dongguan City,Guangdong province.
Manufacturing Center	4000 sqm
Showroom	More than 2000 sqm.

We focuses on wire and cable making solution:

1)The overall operation suggestions of the cable factory
2)Installation and debugging of overall machinery and accessories of the cable factory
3)Cost accounting service of overall mechanical equipment and components
4)Cost accounting service of raw materials and accessories
5)Cost accounting service of overall operation.
6)Talent delivery and training service
7)Overseas on-site guidance and consulting services for equipment installation
8)Maintenance,reconstruction and upgrade services of the overall equipment

Q1:What is your main brand for the electrical and mechanical parts?

A:China famous brand and taiwan brand.

Q2:Could we appoint the parts brand?
A: Yes,SIEMENS, Danfoss,Yaskawa, or theirs that you like

Q3:Could you please arrange the installation and commissioning?
A: Yes,we could and the buyer pay the charge

Q4:Could you arrange the production education?
A:Yes,we could and the buyer pay the charge

Q5:Could you do the design for the whole plant
A: Yes , we can.

Q6:What is the difference with other supplier?
A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .

Q7:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.

Q8:How long the guarantee ?
A: one year and charge for repair the whole life.

Q9: Do you have a video tips for the machine running ?

A. Yes , we have,our youtube channel : tiezhong chi  /HOOHAWIREMACHINE
