• Application：Machinery & Hardware
• Processing Speed：3-5 Seconds,Piece
• Suitable Material：Carbon Steel, Stainless Steel, Aluminum, Copper
• Transport Package：Wooden Box
• Specification：CE ISO
• Trademark：RUNTAI
• Origin：Zhangjiagang Jiangsu China(Mainland)
• Production Capacity：5000PCS,Year

Basic Info.

Application Machinery & Hardware Processing Speed 3-5 Seconds/Piece Suitable Material Carbon Steel, Stainless Steel, Aluminum, Copper Transport Package Wooden Box Specification CE ISO Trademark RUNTAI Origin Zhangjiagang Jiangsu China(Mainland) Production Capacity 5000PCS/Year

Product Description

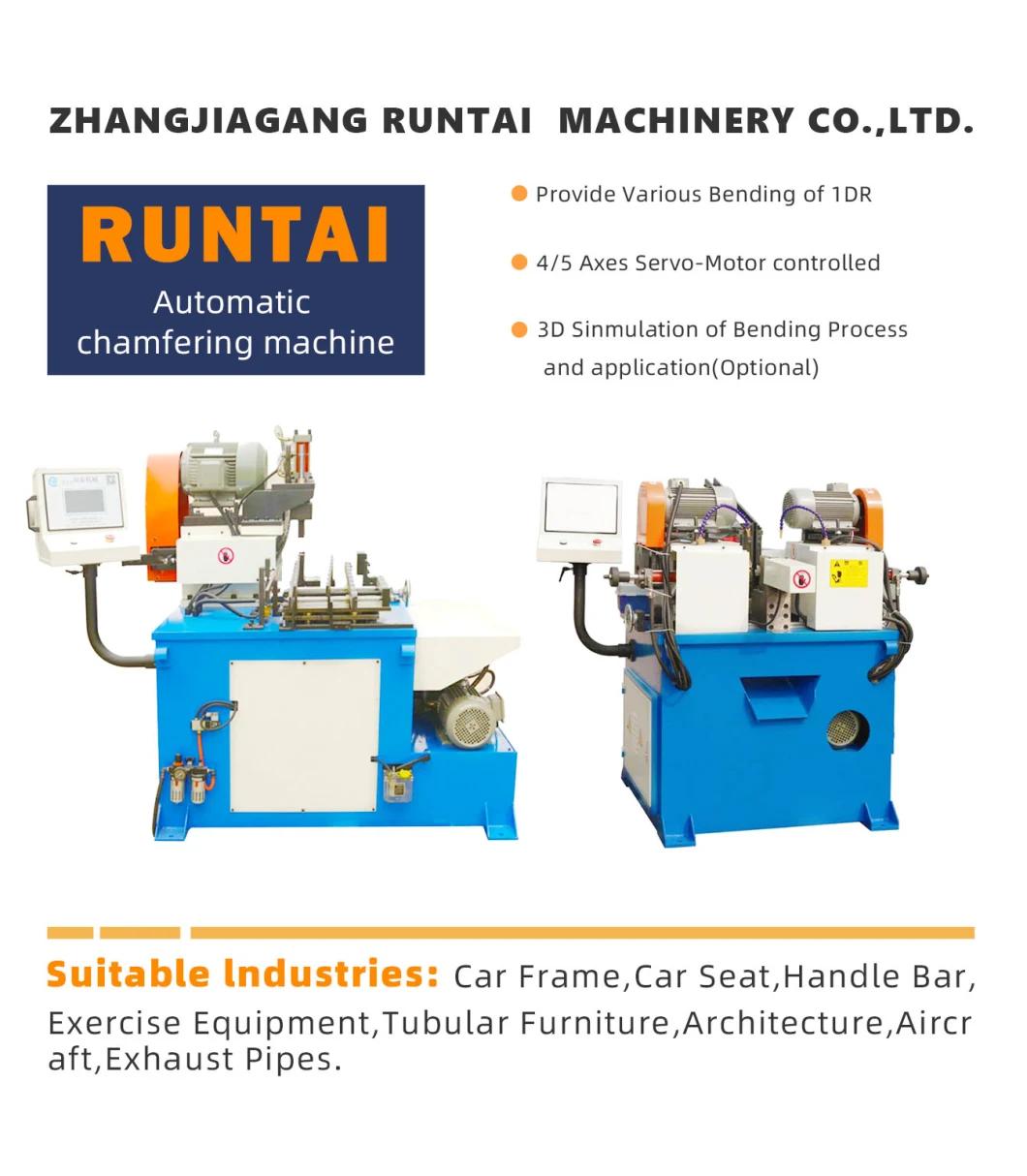

Characteristics:

1. Can finish internal angle, external angle and pipe end at one time.

2. Automatic clamping, automatic blades penetrating and returning, fast speed, big capacity, high efficiency, convenient operation, easy learning and understanding.

3. The speed of main shaft blade penetrating can be adjusted, fast speed and work speed functions are available.

4.  Hydraulic system makes sure the working more stably.

5. In accordance with chamfering processing of work pieces of different size, only need to change the clamp fixtures and adjust the blade bed.

6. Vertical type is more suitable for long working pieces and solid bars.


Specifications:

Technical parameters	RT-50SM/YB
Pipe diameter capability	Φ8~Φ50mm
The length of chamfer working piece	90~1000mm
Rotation speed	800/1600 RPM
Hydraulic oil pump motor	2.2kw
Chamfering motor	2.2kw
Hydraulic pressure	10Mpa
Suitable material	Carbon steel, stainless steel, aluminum, copper (pipe and iron bar)
Size	1800×1000×1100mm
Weight	About 1000kg

Company Details
Professional: 10 years into machinery.
Brand: RUNTAI, China Famous Brand
Engineers: 9 professional and experienced engineers
Certificates: CE, ISO9001:2008
Letters patents: 12 official patents
Examining report: 5 official examining reports
Innovation project: 2 innovative program awards
Exported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc
