• Model NO.：MAC4-1600F
• Certification：TUV, ISO9001, CE
• Warranty：12 Months
• Customized：Customized
• Condition：New
• Stock Width(mm)：70-1600
• Stock Thickness(mm)：0.6-6.0
• Line Speed(M/Min)：16-24
• Coil Weight(Kg)：5000-10000
• Transport Package：Wooden Box or Vacuum Packing
• Specification：6500*6000*2700mm
• Trademark：RUIHUI
• Origin：China, Dongguan
• HS Code：8462219000
• Production Capacity：10 Sets Per Month

Product Description

This series handles material from 600mm to 1,600mm wide and up to 6.0mm thick. The 11 work rolls offer an extraordinary level of flatness to the materials. The HL series featured that adapting all rolls driven with universal joint (MAC4-F) and strengthen body flame for straightening high tension materials. A straightener port opening mechanism has been added. allowing for improved maintenance and cleaning the rolls. The HL series underwent a new model for meeting the demand of both productivity and efficiency in pressroom.

NC servo feeder maintenance tips:
1. In the course of work, it is necessary for the personnel who guard the NC servo feeder to have general technical knowledge and to understand the performance of this product. The NC servo feeder should normally be launched when there is no load, and then parked after the material is unloaded. car.

2. When guarding the NC servo feeder, always check the operation of each component. If any loose parts are found, tighten them in time.

3. The screw tensioning equipment installed at the tail should be adjusted and suitable, and the feeding belt should have the normal working tension. The guards should always check the work of the conveyor belt. The damaged part should be replaced according to the degree of damage (whether it affects the production) and whether the resolution is replaced immediately or when it is to be repaired.

4. During the working process, the non-workers should be away from the machine and should not touch any rotating parts. If defects occur, the work should be stopped and the shortcomings should be eliminated.

5. Try not to be eroded by oil on the servo motor.

6. do not lack oil in the oil cup of the two-point combination.

Product Parameters

3 Phase 220V/380V/50HZOperating Air(Mpa)0.490.490.490.490.49
Straightening Performance(For Yield Strength materials):ModelStock Thickness(mm)0.66008001000130016001.06008001000130016001.26008001000130016001.46008001000130016001.66008001000130016002.06008001000130016002.56008001000115716003.255060981080013504.04304816057108005.02923904204907146.0203271285245600

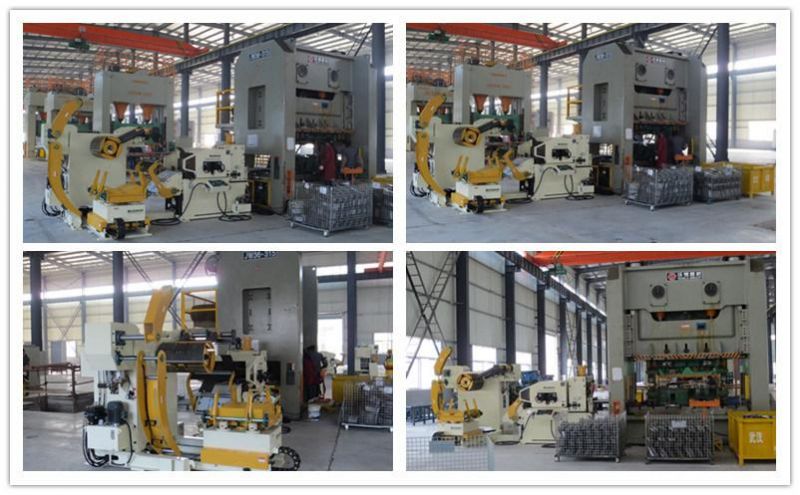

Detailed Photos

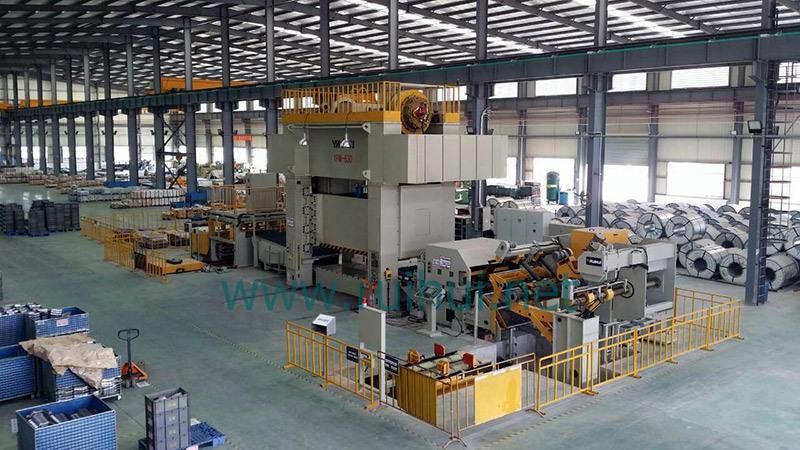

Company Profile

Our Advantages

Why choose us?
1^st,We have a high level of technical research and development team;
2^nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3^rd, our philosophy: quality is the social responsibility;
4^th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5^th,We have a highly effective after-sales service team and get customer approval.
