• Model NO.：ZXQ-3
• Heat Holding Time：140s
• Overall Dimension：664*584*504mm
• Net Weight：93kg
• Operation：Automatic
• Transport Package：Export Wooden Case
• Specification：Automatic
• Trademark：Laihua
• Origin：China
• HS Code：8479899990
• Production Capacity：100 Sets

Basic Info.

Model NO. ZXQ-3 Heat Holding Time 140s Overall Dimension 664*584*504mm Net Weight 93kg Operation Automatic Transport Package Export Wooden Case Specification Automatic Trademark Laihua Origin China HS Code 8479899990 Production Capacity 100 Sets

Product Description

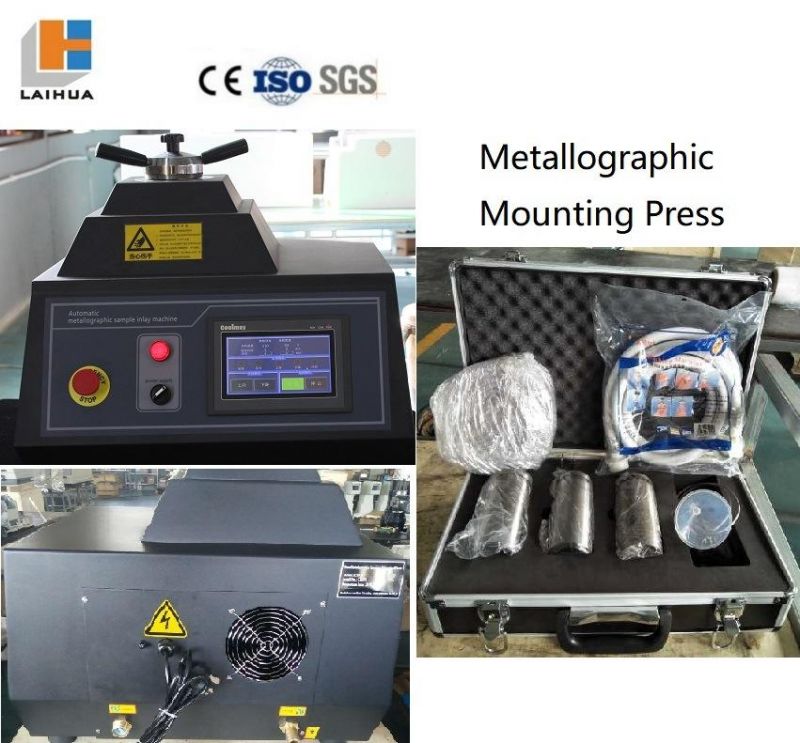

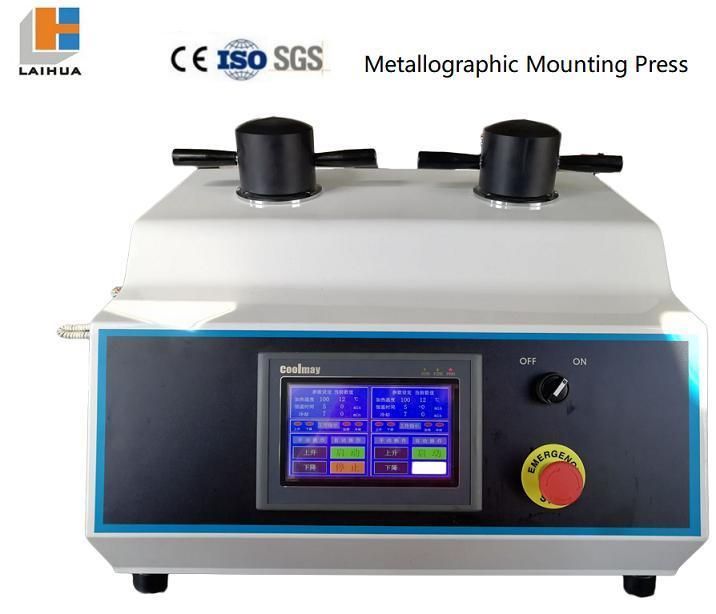

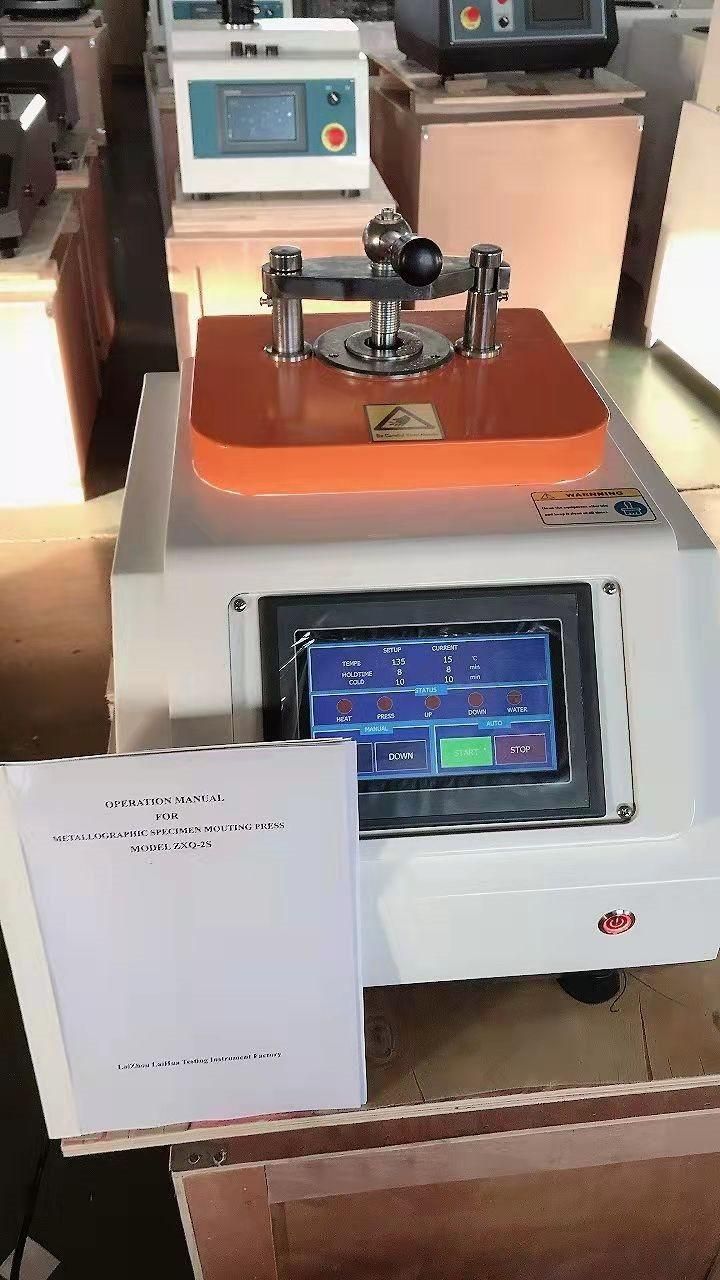

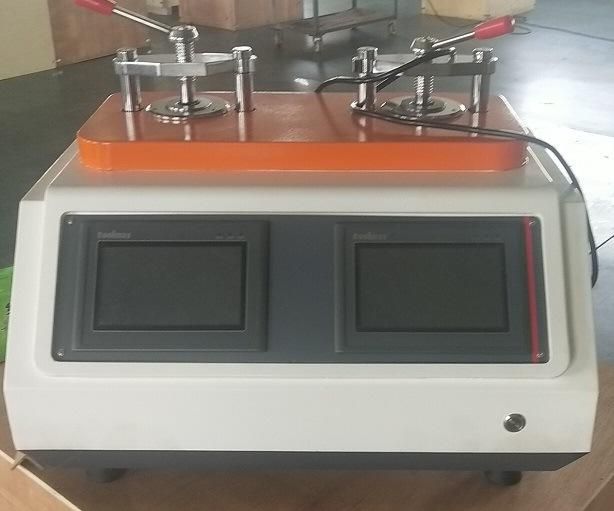

                      ZXQ-3 automatic double head mounting press

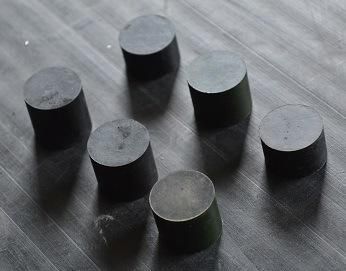

Features and Application:Inlaying is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, or what needs for protecting edge and automatic grinding and polishing, inlaying is an essential step before sample preparation.

ZXQ-3 automatic double head mounting press is an advanced hydraulic water-cooling machine.

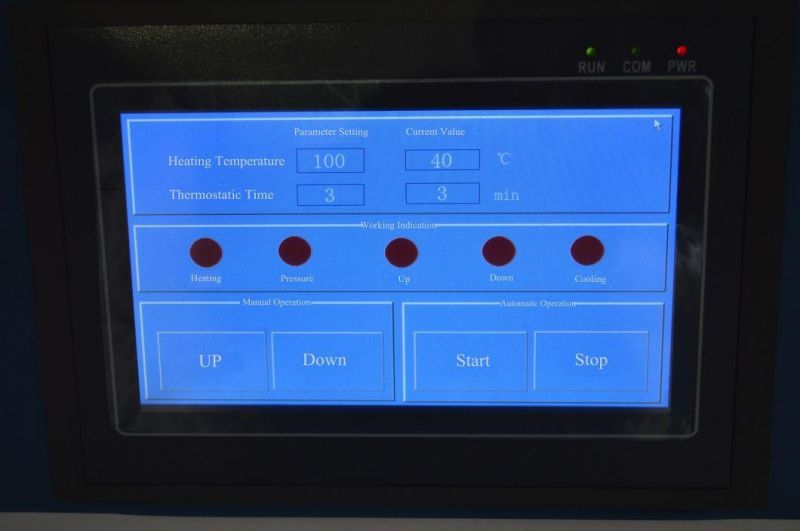

The whole process of inlaying is controlled by program, realizing one button operation of the process of heating, loading, holding, cooling and unloading.

No need for operation personnel on duty, automatically complete the sample inlaying.
has solidified the inlaying program, especially suitable for thermosetting materials, such as electricity jade powder and Bakelite powder materials. makes your sample preparation work more easily and more laborsaving and the inlaying quality better and more stable.
Technical Parameter:

Specification of Die	φ25mmφ30mmφ40mmφ50mm
Heater	220V 850W
Total Power	1800W
Pressure	0~18Mpa
Heat holding time	140S
Dimensions	664*584*504mm
Net Weight	93Kg
Type of Cooling	Automatic water cooling

Package and Shipping:

Packaging: Standard export package, wooden case

Delivery: 3-15 days upon receipt of payment,depending on order quantity

Shipping: Can be shipped by sea, air or other means per request.
