• Model NO.：DZT
• Current：Direct Current
• Model：Dza
• Application：H Beam
• Transport Package：Container
• Specification：Standard
• Trademark：Datang
• Origin：China
• HS Code：84688000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DZT Current Direct Current Model Dza Application H Beam Transport Package Container Specification Standard Trademark Datang Origin China HS Code 84688000 Production Capacity 50 Sets Per Month

Product Description

Welding machine

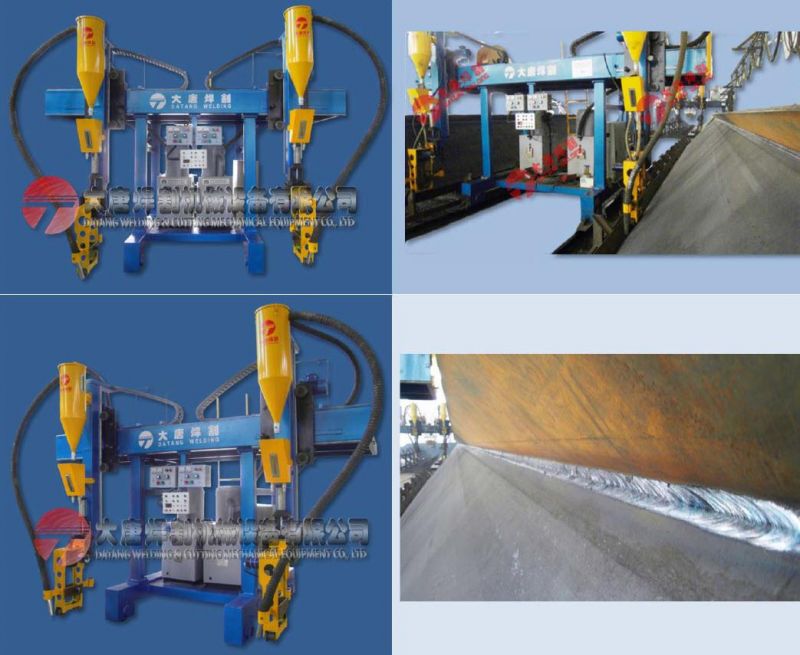

There are two models, A gantry automatic welding machine and T gantry automatic welding machine. It adopts A.C. inverter control, with functions of stable running and fast traveling speed. The seam-tracking arc-guide mechanism is three-spindle system to guarantee the alignment without aberrancy. The main frame and welding machine are integrated control, with flux auto-recovering system and it is easy to operate with high efficiency. T gantry automatic welding machine can weld two pieces of beam at the same time, and the web height of beam is not limited by main machine.

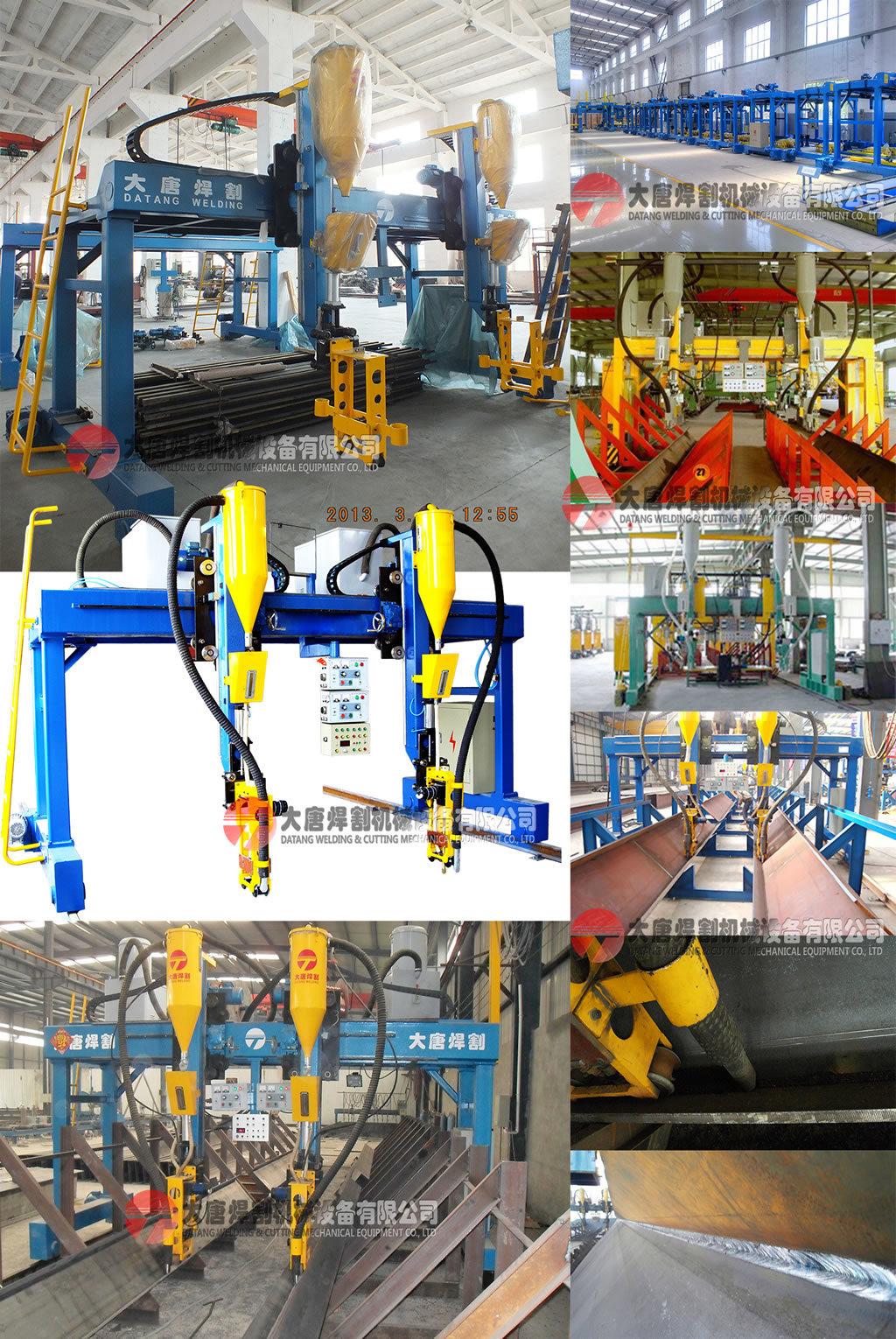

A type gantry welding machine

This machine adopts imported alternating frequency changer.It has stable function and fast kickback function. This arc guiding rack is triple axis mechanical tracing way, to ensure the welding gun aim at the correct position. Mainframe and welder are operated together. It is easily operated and high quality.


specification	parameter
height of web(mm)	200-1200
height of flange(mm)	200-800
Length of H beam(mm)	4000-15000(can be designed as required)
Welder model	MZ-1000 SAW welding power, wire feeding machine, 2unit
Welding form	arc
Welding speed(m/min)	0.15-2.5
Back speed(m/min)	3
Rail distance(mm)	4000
Power(Kw)	13(welder is exclude)

More pictures
