• Model NO.：ZSL-2X1600
• Warranty：12 Months
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Material Width：1600mm
• Material Thickness：2mm
• Slitting Quantity：30 Strips
• Wide Accuracy：0.1 mm
• Cutting Burr：3%
• Finished Length：30 mm
• Length Accuracy：0.1 mm
• Diagonal Accuracy：1 mm
• Line Speed：150 M, Min
• Coil Weight：25 Tons
• Processing Material：Carbon Steel, Galvanized Plate, Aluminum Palte
• Suitable Materials：Coil, Plate, Sheet
• Colour：Customized
• Application：Machinery&Hardware
• Work Method：Round Knife Cutting
• Transport Package：Seaworthy
• Specification：27 m L X 10 m W
• Trademark：ZeYe
• Origin：Shandong, China
• HS Code：84623110
• Production Capacity：60

Basic Info.

Model NO. ZSL-2X1600 Warranty 12 Months Customized Customized Advantage Easy to Maintenance Condition New Material Width 1600mm Material Thickness 2mm Slitting Quantity 30 Strips Wide Accuracy 0.1 mm Cutting Burr 3% Finished Length 30 mm Length Accuracy 0.1 mm Diagonal Accuracy 1 mm Line Speed 150 M/ Min Coil Weight 25 Tons Processing Material Carbon Steel, Galvanized Plate, Aluminum Palte Suitable Materials Coil, Plate, Sheet Colour Customized Application Machinery&Hardware Work Method Round Knife Cutting Transport Package Seaworthy Specification 27 m L X 10 m W Trademark ZeYe Origin Shandong, China HS Code 84623110 Production Capacity 60

Product Description

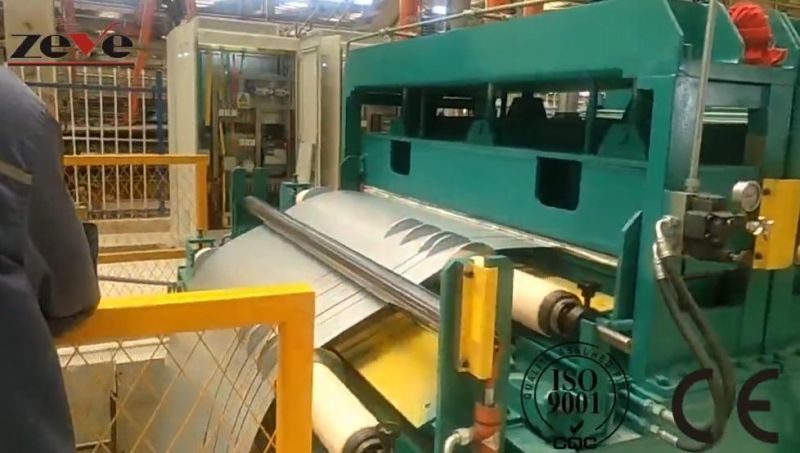

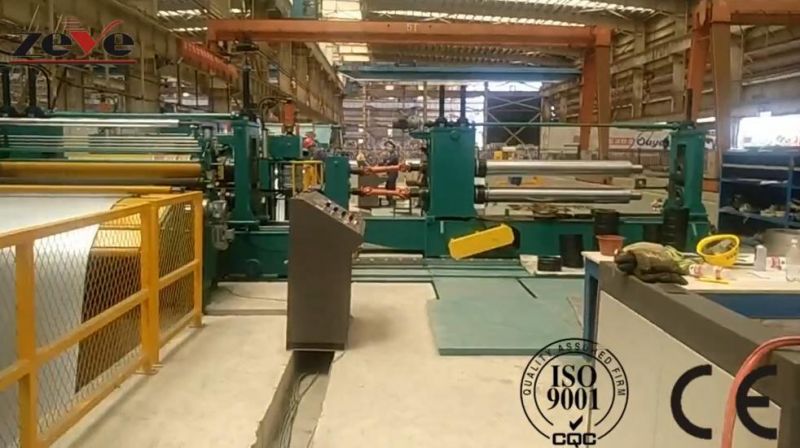

Slitting line ZSL series
Slitting line is mainly used for metail coil shear from decoiling,feeding, head shear, loop, slitting to recoiling.

Its function is to shear wide metal coil longitudinlly into narrow coils, many kinds of material are availble to shear, such as,
cold rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc. .



Main Units
1.Entry coil car,
2.Uncoiler,
3.Feeding device,
4. Hydraulic head shear,
5.Looper,
6.Slitter machine,
7.Scrap winder,
8.Looper,
9.Tension device,
10.Hydraulic shear,
11.Recoiler
12.Exit coil car.

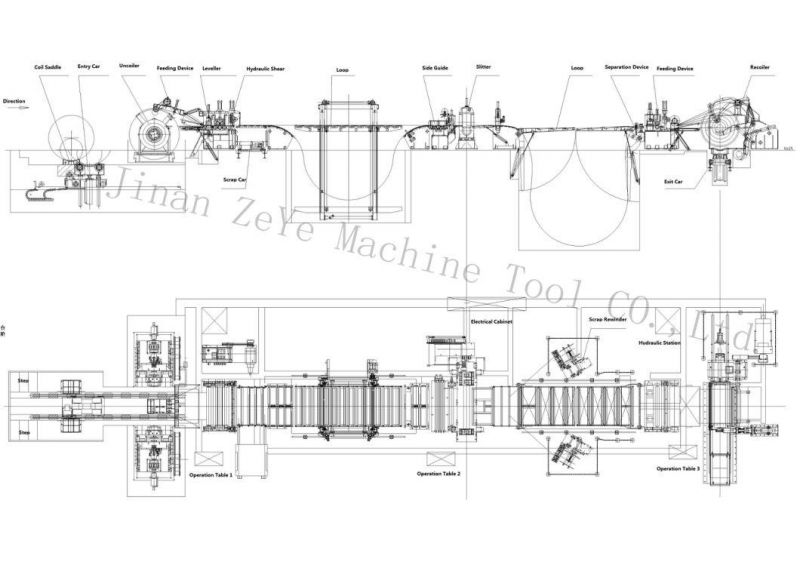

Slitting Line Layout
 Main Technical Parameters

Model	ZSL-1	ZSL-2	ZSL-3	ZSL-4
Material thickness	0.15-1.0mm	0.2-2.0 mm	0.3-3.0 mm	0.5-4.0 mm
Material width	300-1250 mm	300-1600 mm	300-1800 mm	300-2000 mm
Slitting quantity	35	35	35	25
Width accuracy	±0.05 mm	±0.05 mm	±0.10 mm	±0.10 mm
Cutting burr	<3%	<3%	<3%	<3%
Winding split level floor	<1 mm	<1 mm	<1 mm	<1 mm
Line speed	200 m/min	200 m/min	180 m/min	150 m/min
Coil weight	10,15 t	10,15,20 t	15,20,25 t	20,25,30 t


Our advantages
1.Our parts of equipment are produced by Japan MAZAK, Spain CORREA cnc etc. the world class the most advanced processing equipments. Which can ensure to produce out high precision parts.


2. Every part has been finished it's own complete technology process, such as forge, rough machined,  heat treatment, cooling, burring, tempering,  finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test ,entry warehouse, which ensure every part meets it's the best performance.


3.Strictly inspection every section during production and assembly process, to ensure every part to be used is qualified and guarantee produce out the high accuracy shear production line.

Part of our customers
Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.

Our Shear Production Lines have been exported to Australia, Mexico, Ukraine, Vietnam, Philipines, Uzbekistam, Algeria, Ethiopia, Thainland, Dubai, Sudan, Brazil, Myanmar, Congo etc. 30 countries and areas.


Company introduction

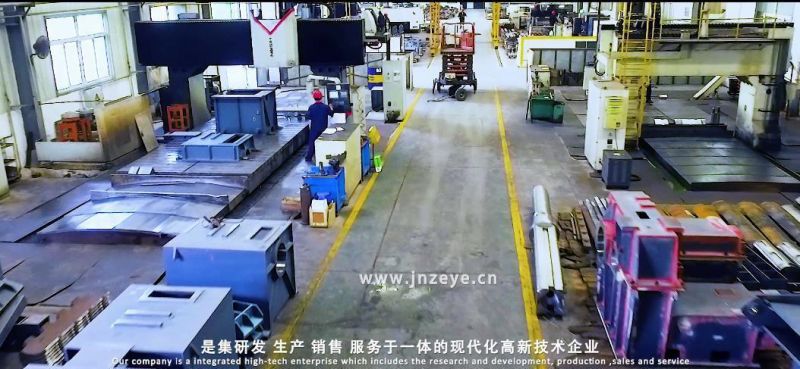

We have two companies, Shandong Zetian CNC Machine Tool Co., Ltd (short for ZeTian ) and Jinan ZeYe Machine Tool Co., Ltd ( short for ZeYe) , ZeTian and ZeYe were founded by Mr.Hu. ZeTian is in charge of handle import and export business, ZeYe is in charge for production, which is located in Jinan city, Shandong Province, China, was founded in 1998.

ZeYe is mainly engaged in developing, manufacturing of Cut to Length Line, Slitting Line, Rotary Shear Line, Moving Shear Line, Slitting and Cut to Length Production Line, Slitting Recoiling or Cut to Length Compound Line and Leveling Machine.

Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. Industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper and other metals.

We have one professional technical team and after sales service teams, we are ready to serve you at any time.




Welcome to visit our factory.



FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line
for 23 years, we have a strong design & technical team,  we can design and manufacture as your requirements.

Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, processing precision etc.

Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months when the equipment run normally .
