• Model NO.：5 tons
• Customized：Customized
• Advantage：Use Widely
• Condition：New

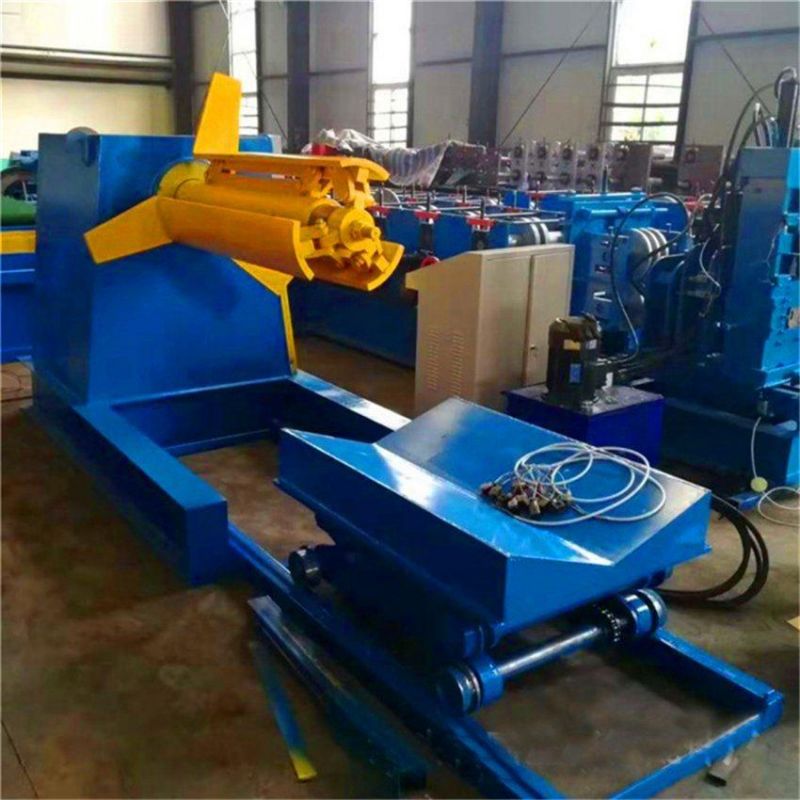

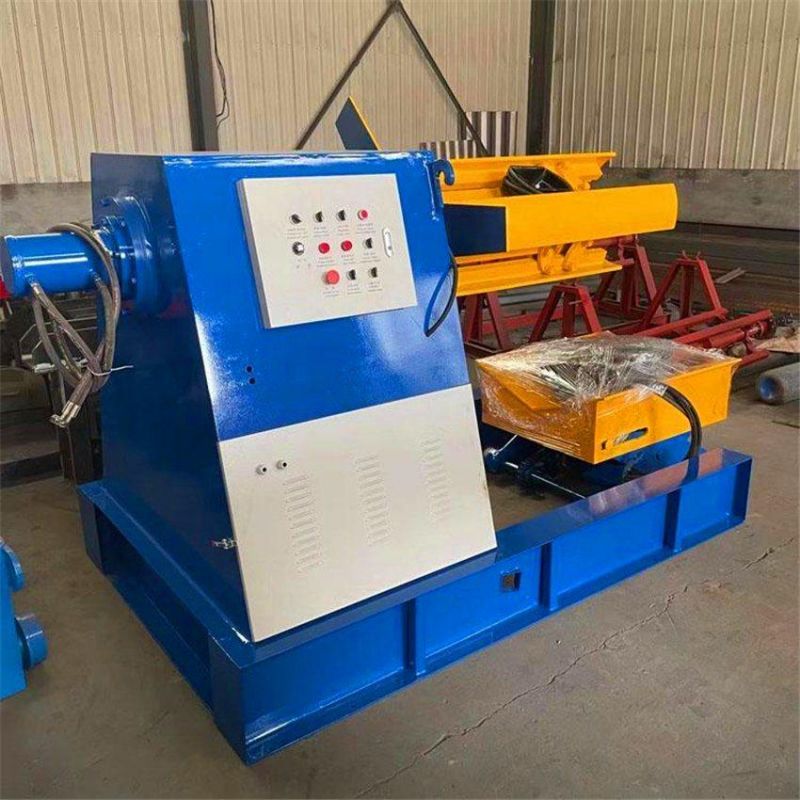

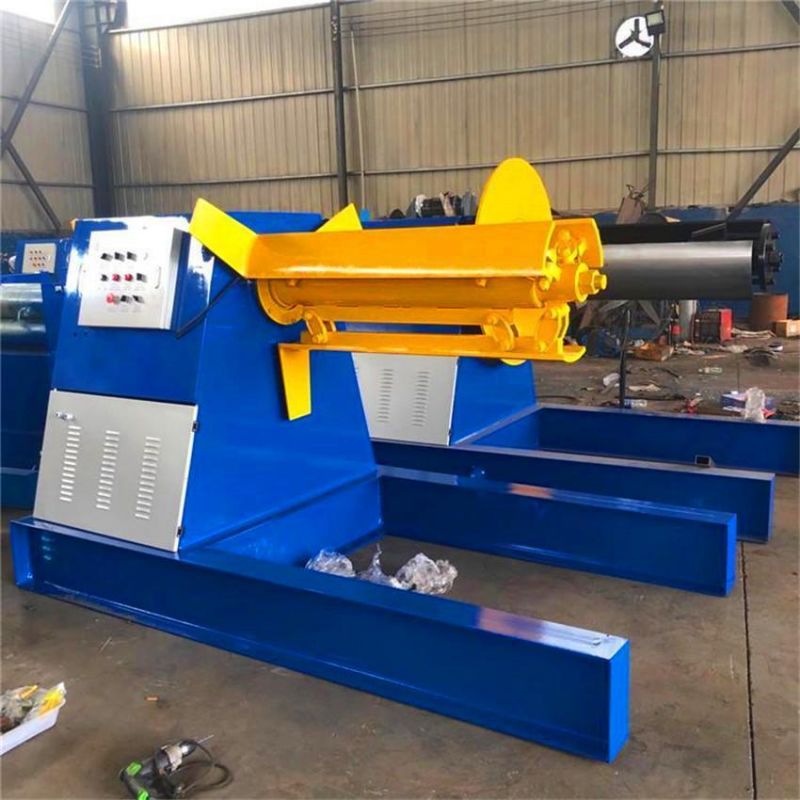

• Name：Hydraulic Steel Coil Decoiler for Sale
• Automatic Decoiler：5t, 6t, 10t, 15t..... Customer Designed
• Form of Decoiler：Hydraulic Tension and Electric Discharge
• Motor Power of Decoiler：3kw
• Motor Power of Hydraulic Station：2.2kw
• Inside Dia of Coil：500-530mm
• Outside Dia of Coil：1300mm
• Width of Coil：1250-1300mm
• Weight of Coil：5t, 6t, 10t, 15t
• Speed of Decoiling：0-20m,Min
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：CE ISO
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：84552210
• Production Capacity：20 Set Per Year


1
Type
Auomatic Hydraulic System
2
Capacity
10T
3
Max coil width
1250mm
4
Coil weight
10 tons
5
Inter diameter
450-550mm
6
Max outer diameter
1250mm
7
Oil cylinder dia
120mm

Oil cylinder working pressure
20tons
8
Working speed
0-25m/min
9
Main power
5.5kw
10
Hydraulic power
3kw
11
Pressure
12Mpa
12
Material of frame
Q235 steel welded
13
Control system
Mitsubishi PLC with transducer
14
De-coiler
3.2*1.5*2.25m
15
Weight
4T
16
Coil car
length:3000mm  width:860mm  height: 850-1250mm  adjustable
 17
weight
0.75T

3.Payment and terms
1>30% T/T in advance and balance 70% after inspection confirmation before shipment.
2>Quotation will be valid with in 30 days.Final price should be confirmed.
3>Delivery time : Within 45 working days after receiving deposit.

4.Warranty
 1>One year, and we will provide the technical support for the whole life.
2>Training: the buyer should be responsible for visa, return ticket, food and accommodation overseas and USD50/person/day for salary.
3>Need one technicians
4>Training time: one week (contains the time of installation and adjustment)
