• Model NO.：Metal Roll Forming Machine
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Main Power：7.5kw
• Machine Size：About 11.4*1.655*1.6m
• Delivery：About 60days
• Machine Weight：About 11t
• Transport Package：1*40gp
• Specification：CE SGS BV
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：25 Sets,Month

ItemSpecificationMaterialTypePre-painted steel coil & aluminium coilsThickness (mm)0.4-0.7Yield strength (mpa)235-345Roller material45#Chrome steelForming speed(m/min)About 25Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeElectricity motor cuttingCutter material Cr12 mould steel Length measurementEncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power (kw)7.5 kw  (Depend on final design)Uncoiler's loading capacityMax. Capacity: 5000kgs (can be increased to be 10T)Machine`s sizeAbout 9*1.63*1.65m (Depend on final design)

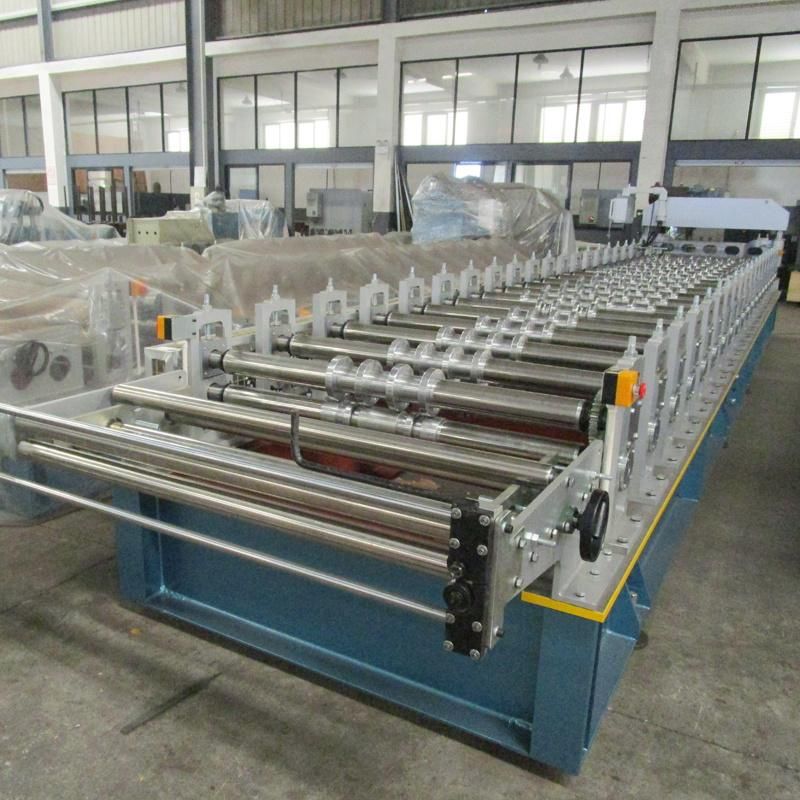

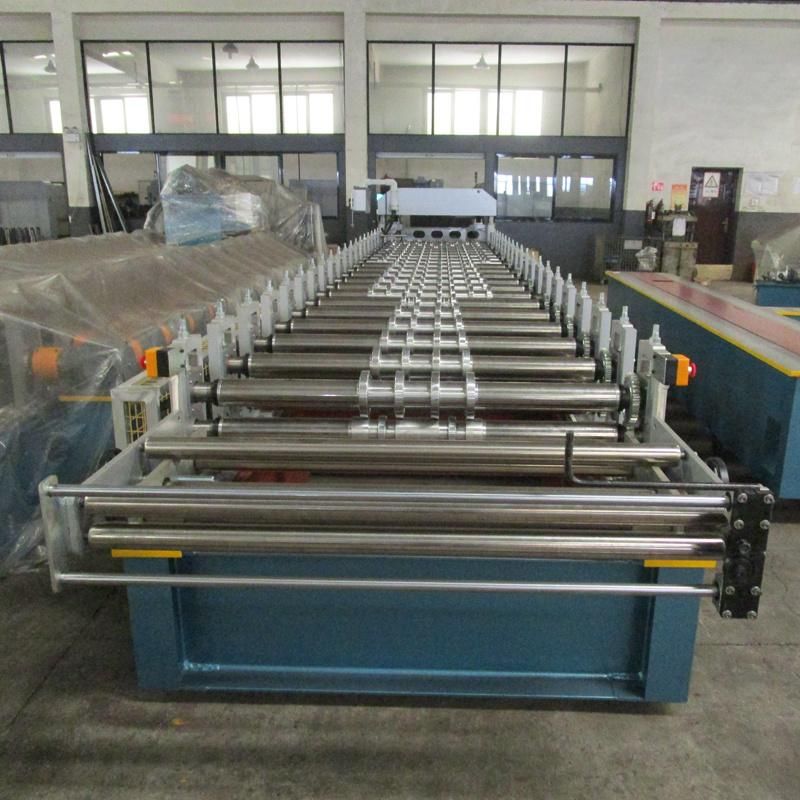

Components of machineDecoiler1set  Feeding & guiding device1setMain roll forming machine1setControlling system1setRun out table 1set
Process flow:

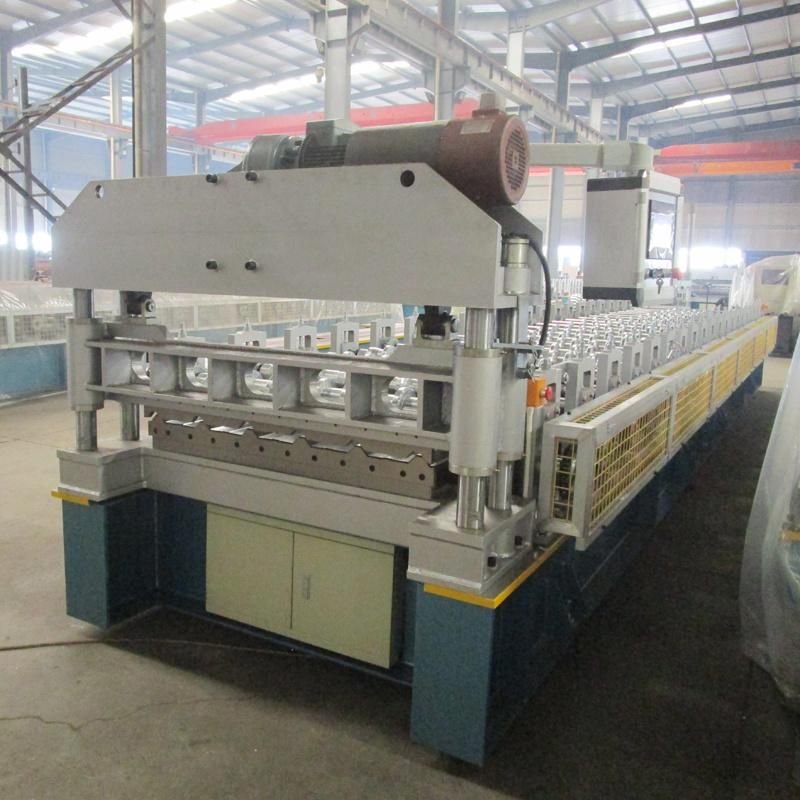

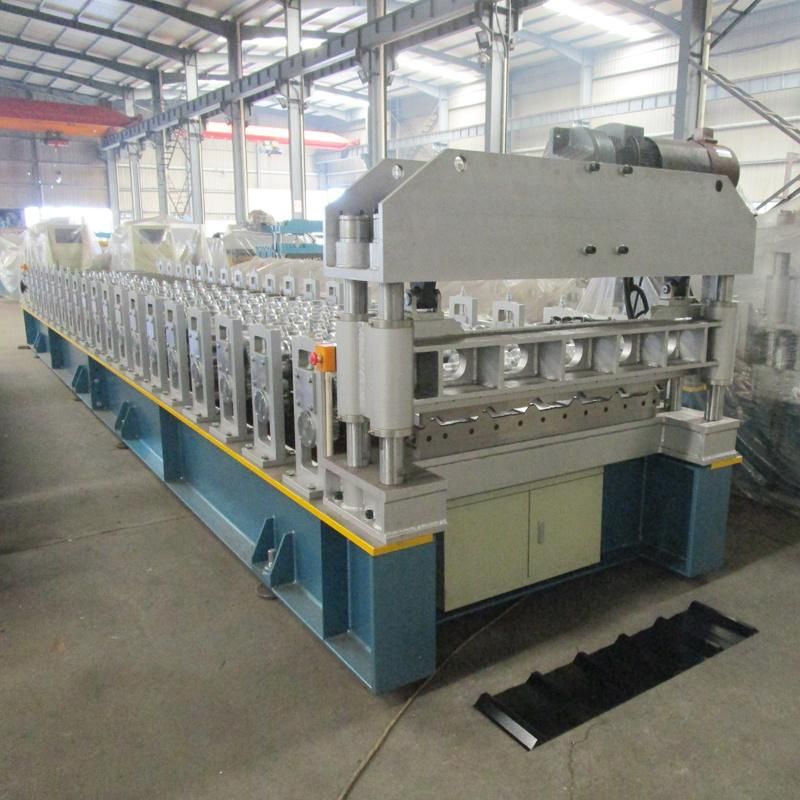

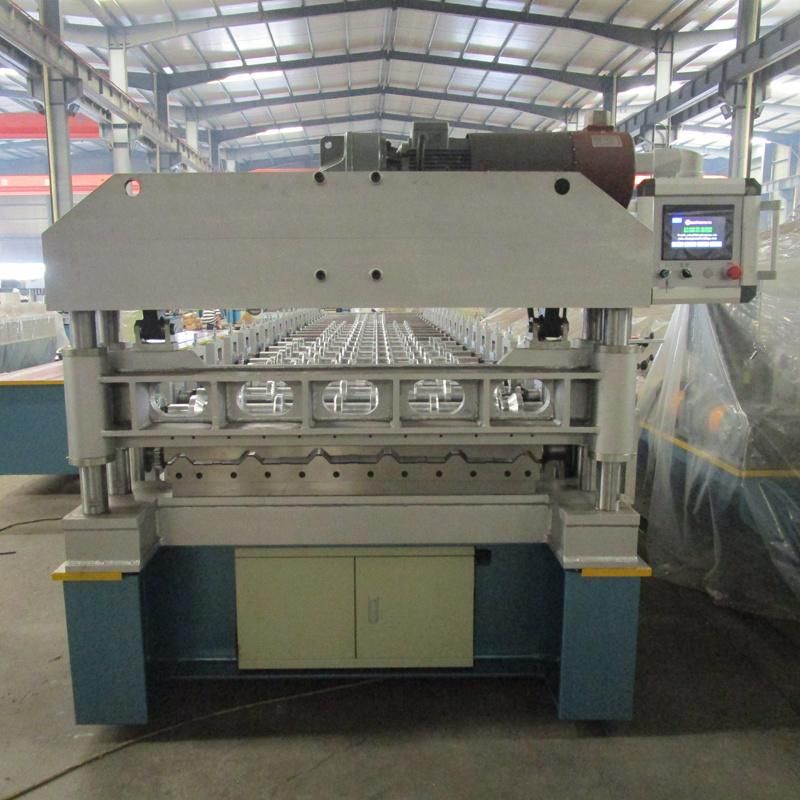

Decoiler -- Feeding & Guiding -- Roll Forming-- Electricity motor Cutting - Product to Run Out Table

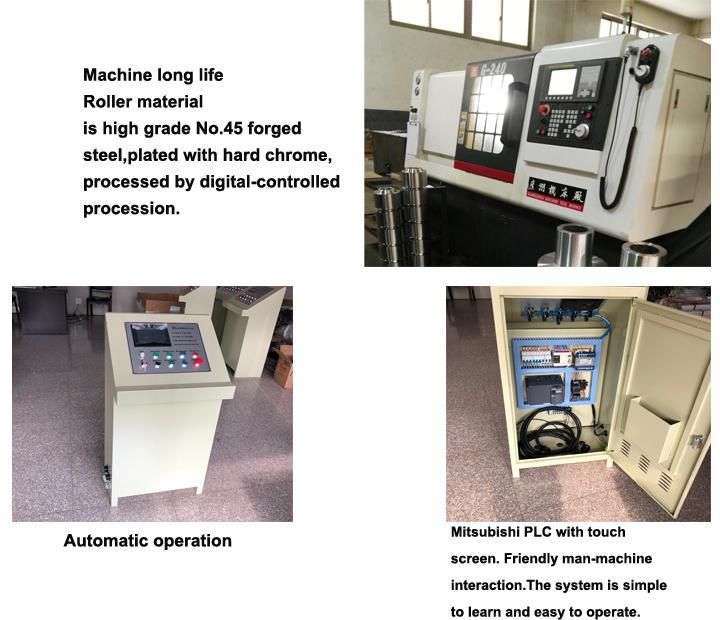

Controller:
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!




About us

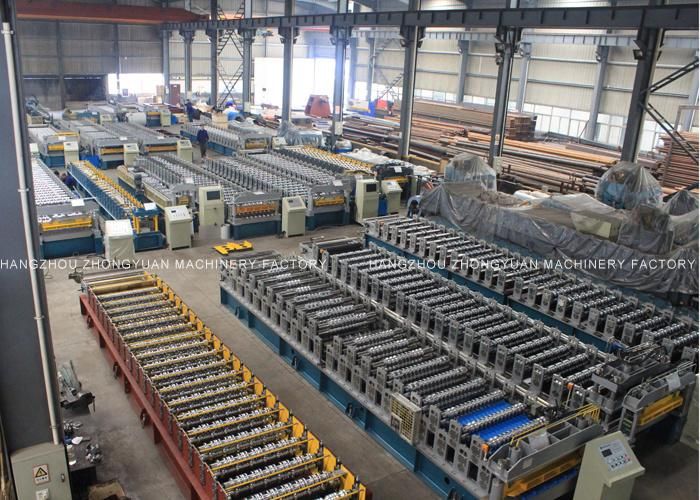

We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.






Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!




FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3), Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4), Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5), How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.

6), Q: Do you sell only standard machines?
A: No. Most machines are made to order.

7), Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
