• Model NO.：ST28-12R
• Advantage：Customized Design
• Transport Package：Wooden Case
• Specification：1500*1400*1800MM
• Trademark：Might
• Origin：China
• HS Code：84633000
• Production Capacity：200

Basic Info.

Model NO. ST28-12R Advantage Customized Design Transport Package Wooden Case Specification 1500*1400*1800MM Trademark Might Origin China HS Code 84633000 Production Capacity 200

Product Description

Might & Joint Spring Machinery--Professional for Camless CNC Spring Machine over 20 years, the leader for Camless CNC Spring Machine Industry.

Company Profile:

Might & Joint (Dongguan Might Precision Machinery Co., Ltd) is professional in researching, developing, manufacturing and selling Camless CNC spring machine. Its current leading products including CNC Versatile Spring Forming Machine & CNC Compression Spring Machine &Automatic 3D/2D Wire Bending machine, the wire size covers 0.15mm to 20.0mm.


Product  Specification:

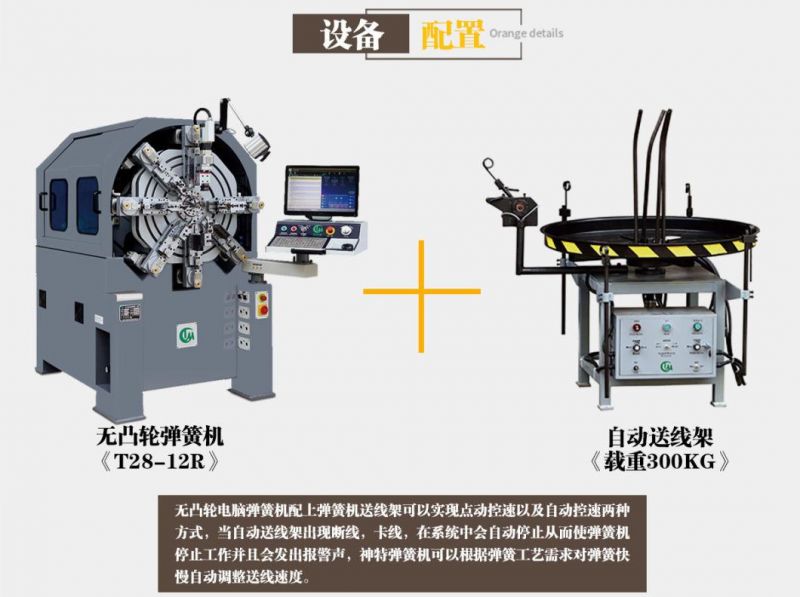

1. Camless spring forming machine ST28-12R combines precision CNC controlled servo-motion system and conveniences of mechanization.
2. It is suitable for various kinds of spring products through a simplified setup and programming procedure.
3. It is equipped with seven slights ,one free arm ,wire feeding ,quotation rotation.
4. We design tools for individual purposes such as bending, coiling, pitching, forming, and cutting.
5. Working spaces and angles are considered very carefully to develop portable tool holders for straight movement or supporting movement from other slides.
6. It can make various kinds of spring from wire diameter 0.4mm to 2.8mm.

Model	ST28-12R
Min Wire Feeding Value	0.01MM
Axes Number	12 (can be added to 16)
Max wire Feeding Value	10000.00MM
Wire size range	0.4-2.8mm
Max Wire Feeding  Speed	120M/Min
Max. Feeding length	unlimited
Total  output power of servo motors	12.6KW
Input Power Supply	380V/50HZ/3PH
Control System	self developed system
Probe No.	3
Net Length	1500MM
Net Width	1250MM
Net  Height	1800MM
Net Weight	1500KGS
