• Model NO.：ERP-1530D
• Warranty：3 Years
• Controller：Start,Starfire
• Software：Fastcam,Starcam
• Plasma Source：Hypertherm,Huayuan
• Rail：PMI,Hiwin
• Power：5.5kw
• Voltage：380V,3p
• Thc：Starfire
• Smoke Extraction：Yes
• Motor and Driver：Stepper ,Servo
• Transport Package：Plywood
• Specification：1500*3000mm
• Trademark：Eastrise
• Origin：Jinan, China
• HS Code：8456401000
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. ERP-1530D Warranty 3 Years Controller Start/Starfire Software Fastcam/Starcam Plasma Source Hypertherm/Huayuan Rail PMI/Hiwin Power 5.5kw Voltage 380V/3p Thc Starfire Smoke Extraction Yes Motor and Driver Stepper /Servo Transport Package Plywood Specification 1500*3000mm Trademark Eastrise Origin Jinan, China HS Code 8456401000 Production Capacity 5000 Sets/Year

Product Description

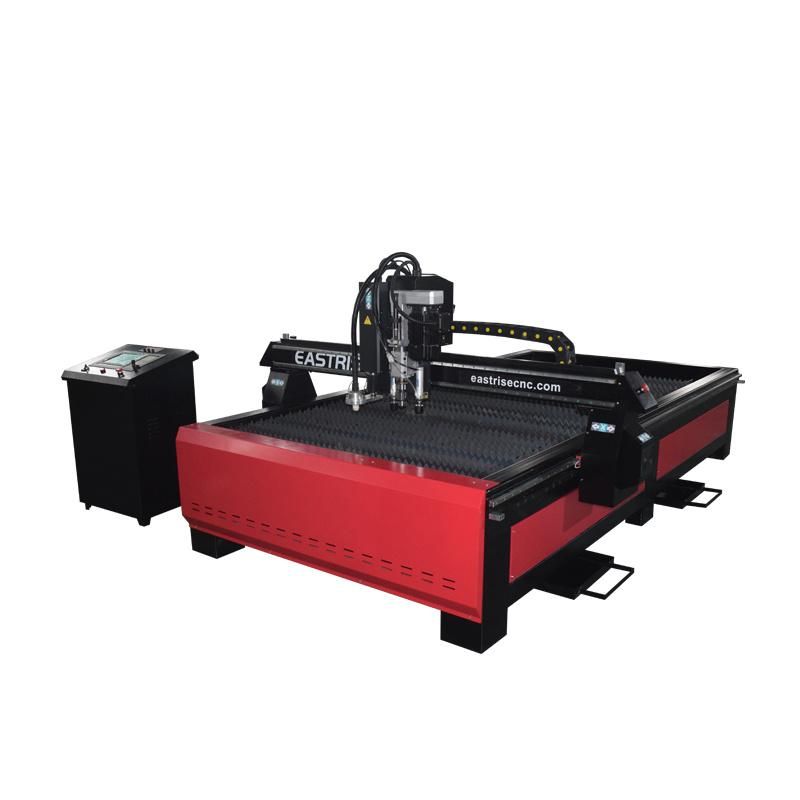

1325 1530 2040 drilling head cnc plasma cutting machine

Features

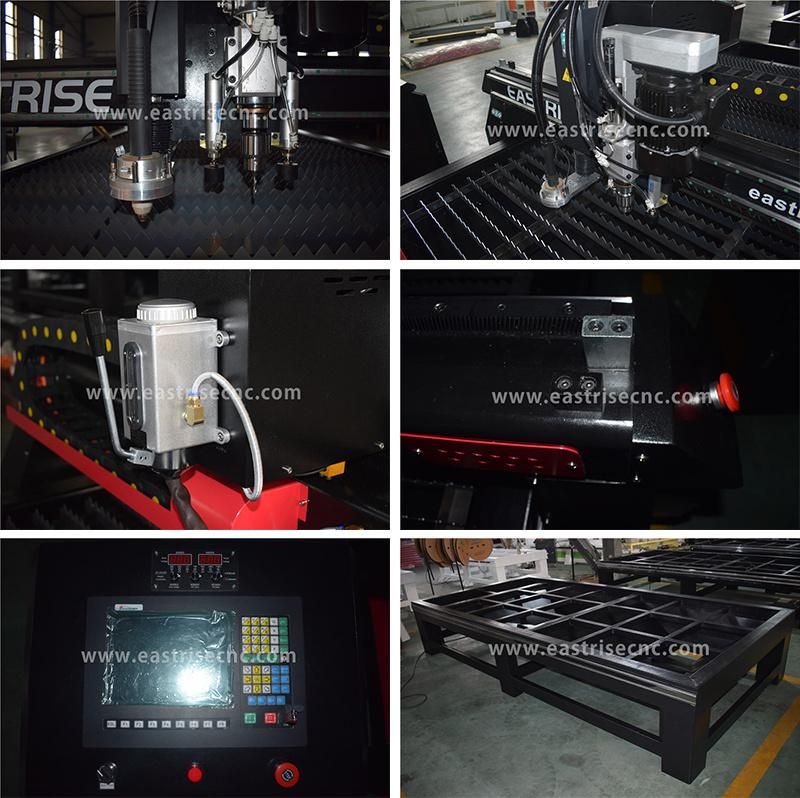

l.This model has CNC drilling and cutting all-in-one machine. Considering the
technological characteristics between CNC cutting and CNC drilling,the structure of our developed machine like machine fram movement mechanism and working table can ensure the rigidity and stability in cutting and drilling process, also the machine can work continuously.
2.Drilling and Cutting All-in-one Machine can resolve many problems caused from drilling steel plates after being cut bv plasma or flame. It combines cutting and drilling to reduce process steps. Raw material becomes finished part by proceeding in one time. Efflciency and precision are increased significantly
3. Welded structure of thickening square tube, together with Taiwan imported guide rail to ensure running speed and accuracy.
4. Hypertherm plasma power supply together with high sensitive arc pressure adjuster. Self-adjusting can choose the best distance between plasma gun and working piece automatically to ensure high accuracy cutting.
5. CNC plasma cutting for aluminum, stainless steel use STARFIRE control system with FastCAM software for auto material saving function, large capacity storing function, convenient to read and process.
6. Cutting head with cooling system can quickly cool surface of material to avoid burr and residue.
7. Overall stepper motor with high precision rack and pinion, to ensure the cnc plasma Machine has small noise,smooth, precise coordinates of the mobile performance.
8. Perfect software compatibility, such as Ucancam,Type 3, Artcum,etc.

Advantage
>cutting faster, more accurate control, the cutting surface is more smooth, no glitches, no black; cutting holes in high quality
>Stability and reliability for light path system and control system
>Humanizing design, convenient operation
>High performance price ratio, low operating cost
>High cutting efficiency and quality, no noisy. Small heat influence area, cutting seam smooth and no deformation, post treatment is not needed
>The machine adopt Beijing START plasma control system, standard high sensitivity arc voltage device
>High precision stepper motor and driver, ensure the efficiency and accuracy, increasing the stability and reliability greatly

Application

Application Material: it is suitable for carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet,stainless steel and other metal sheet.
Application industry: it is widely used for processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.

Technical parameters

Specifications	Parameters
Working Area(X Y)	flat:1500*3000mm
Power source	Hypertherm/Huayuan plasma source
Cutting Speed	0-16000 mm/min
Plasma Unit Max	5.5KW
Positioning accuracy	±0.3mm
Arc	Untouched arc striking
Software support	FASTCAM/STARCAM plasma software
Instruction format	G code
Working table	Serrate working platform
Working pressure	0.3-0.7Mpa
Working voltage	3Phase 380V
Machine dimension(L*W*H)	3000*1900*1540mm
Weight	N./GW: 1500/1700KG
Files transfer	USB interface

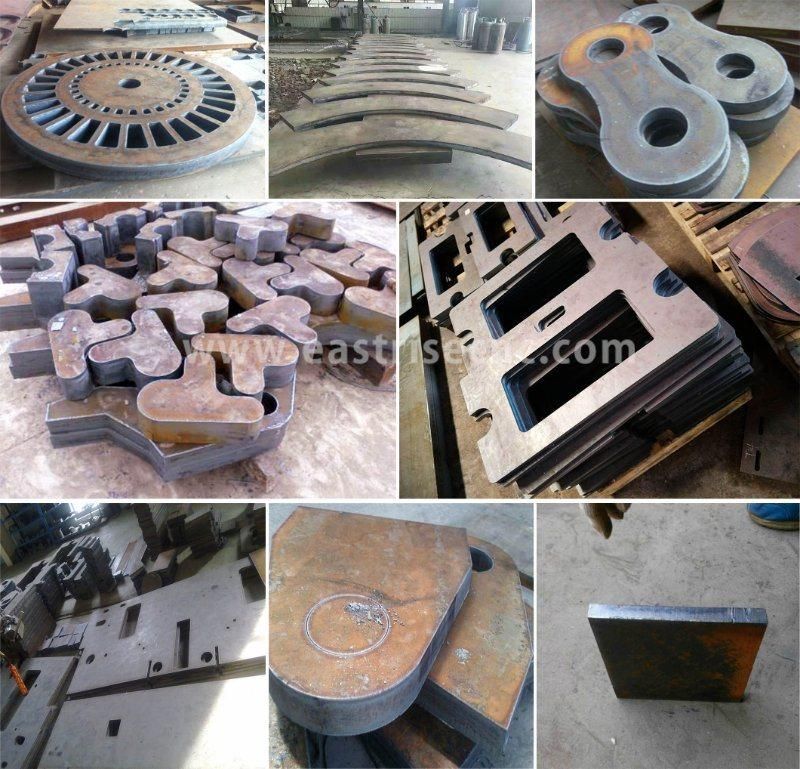

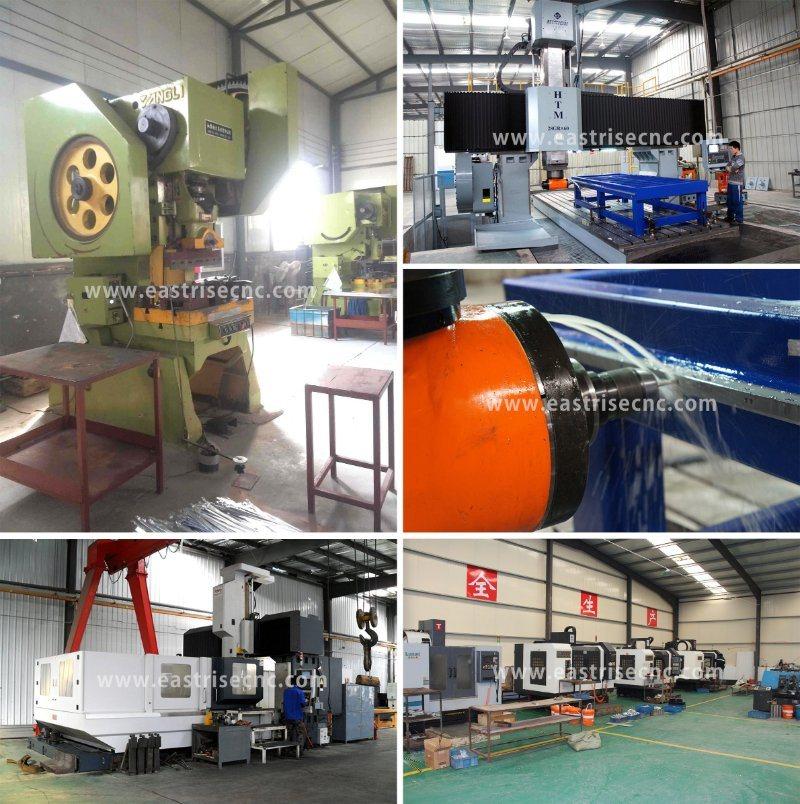

Machining

Exhibition

Certificates

FAQ

1.How long is your machine's warranty?

3 years

2.How about your after-sales service ?

Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.

3.How can we install the machine?

English version manual and operation video CD disk.

4.How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal

5.How about package of shipment?

Inner packing:water-proof film
Outter packing:plywood case
Bottom:strong steel tube
