Gantry CNC Plasma Flame Cutting Machine Metal Cutter

Jinan Firm CNC Equipment Co., Ltd.
  • Customized：Customized
  • Layout：Horizontal
  • Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
  • Automatic Grade：Automatic
  • Cutting Mode：Plasma Cutting
  • Control System：Starfire , Flmc-2300A , Start Controller

Base Info

  • Model NO.：FMP3060
  • Plasma Currency：63A,100A,160A, 65A, 85A, 105A, 200A
  • Motor：Servo Motor or Step Motor
  • Plasma Source：Hypertherm or Lgk Series
  • Guide Rail：Taiwan Hiwin Square Guide Rail
  • Software：Fastcam Software
  • Height Controller：Torch Height Controller
  • Table Structure：Blade Table or Saw Tooth Table
  • Driver：Double Driver Gantry
  • Transmission Way：High Precision Rack Gear
  • Transport Package：Standard Export Plywood Package
  • Specification：6000 *3000 mm
  • Trademark：FIRMCNC
  • Origin：China, Shandong, Jinan
  • HS Code：8456401000
  • Production Capacity：100 Sets,Month

Description

NOItemSpecification1Model FMP60302Horizontal track space4m3Effective cutting width 3m4Longitudinal track space8m5Effective cutting length6m6Cutting speed 20-25m/min7Cutting precision0.05mm8Cutting thickness0-40mm--plasma cutter head
200mm--flame cutter head9Cutting system Starfire cutting system (English) 10Arc height control Arc torch voltage height control11Table structure Whole iron body, thick steel12Motor Japan YASKAWA servo motor--3 sets13Planet reducerJapan SHIMPO14Motor power750w 15Transmission wayHigh precision rack gear16Guide railAll axis use HIWIN square rail17Solenoid valve Italy CEME18Power supply Hypertherm MAXPRO200A19Drawing software CAD20Nesting software Australia FASTCAM software21Output way Artcam, type3 22LCD display dimension 10.4 inches 23Drive modeDrive mode24Height regulating deviceArc voltage height and Electric adjustable high25Gas pressure Max. 0.1 Mpa26Oxygen pressure Max. 0.7 Mpa27Other parts One set plasma nozzle sent for free Gantry CNC Plasma Flame Cutting Machine Metal Cutter
Gantry CNC Plasma Flame Cutting Machine Metal Cutter
Application
They are widely used in ship, car, boiler pressure vessel, steel structure, plane, engineering machinery and other fields.
They use flame cutting to cut carbon steel, use plasma to cut stainless steel, aluminum, copper and other metal plates. They are especially fit for irregular drawing batch cutting.
Gantry CNC Plasma Flame Cutting Machine Metal Cutter

Portable cnc flame/plasma cutting machine advantage1.Gantry CNC cutting machine more stable, it can acquire more than torch, even to achieve
long straight cutting.2.Large thickness steel cutting capacity, lower cost cutting.3.System function, high stability, strong anti-interference, applies various demestic and
hypertherm power,flame cutter4.Easy to transport, cost saving, more economy
Company Information
JINAN FIRMCNC EQUIPMENT CO.,LTD the professional cnc router and laser cutting machine manufacturer, which is located in Jinan city ,China.
We started to sell cnc machine in China since 2009 ,and then start our business abroad since 2013 , Our machine sells well in global area, like the North America, Europe, Middle East , etc.
Our machine includes : Woodworking cnc router , Stone engraving machine , Metal mould making machine , 4 axis cnc router , 5 axis cnc router , EPS processing machine , Co2 laser cutting and engraving machine , Fiber laser cutting machine , Laser marking machine , Plasma cutting machine
Gantry CNC Plasma Flame Cutting Machine Metal Cutter

Our Services
A. Our machine is guaranteed for one year.
B. If you have any problems about machine, we have a strong technical team who provide
technical support by
phone, email or MSN around the clock (The pictures or videos can be took for testing the problem).
C. Under the warranty if the parts of our machine are broken without human mistake,
we will change new one for you. You can totally trust our machine quality.
D. We can send our engineers to your country to give you training and also you come to our factory
for training.

Packing
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information
Gantry CNC Plasma Flame Cutting Machine Metal Cutter

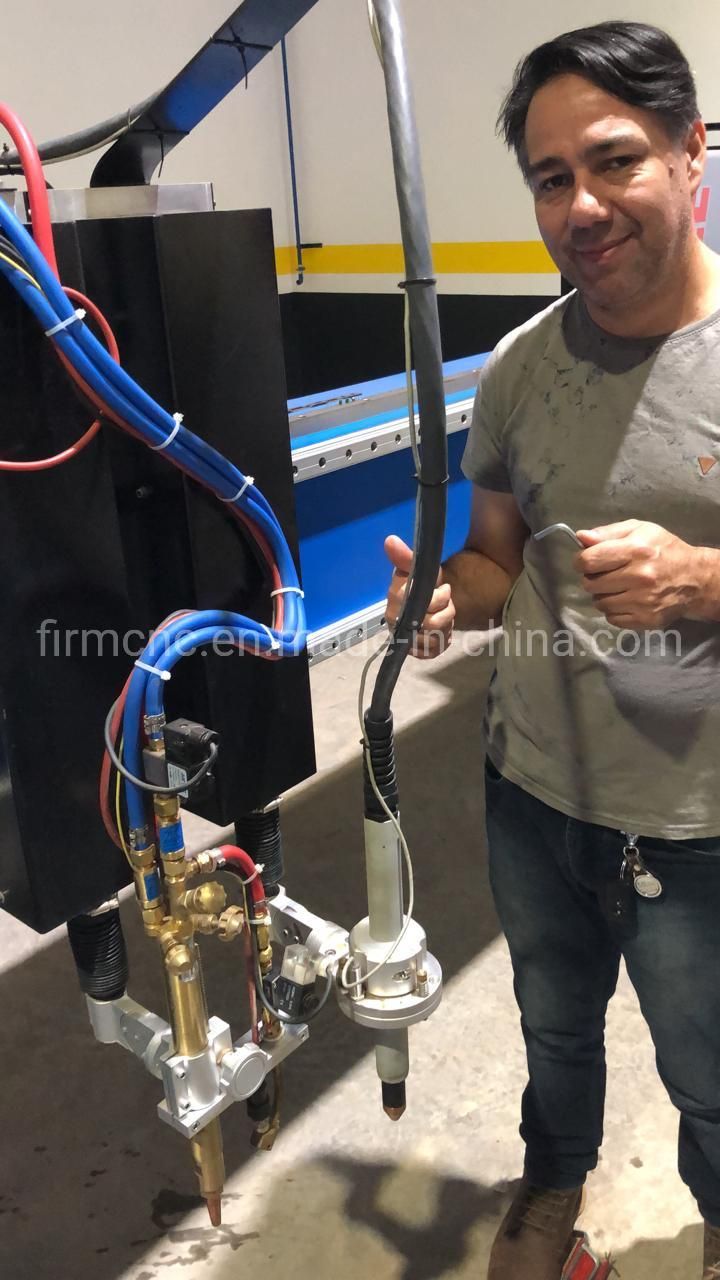

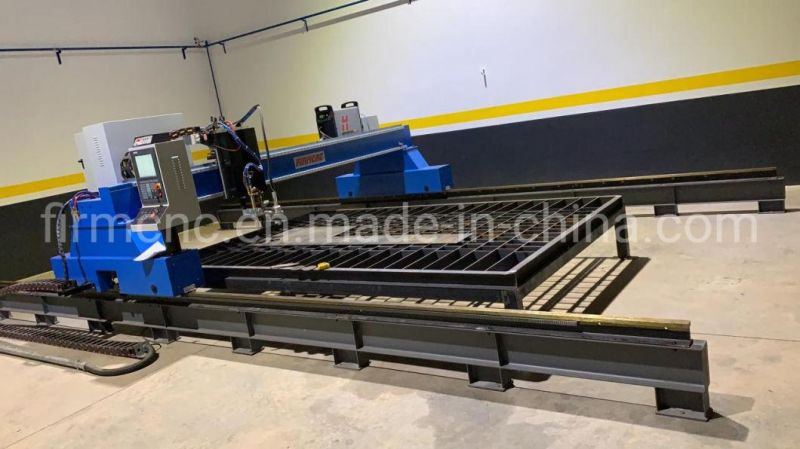

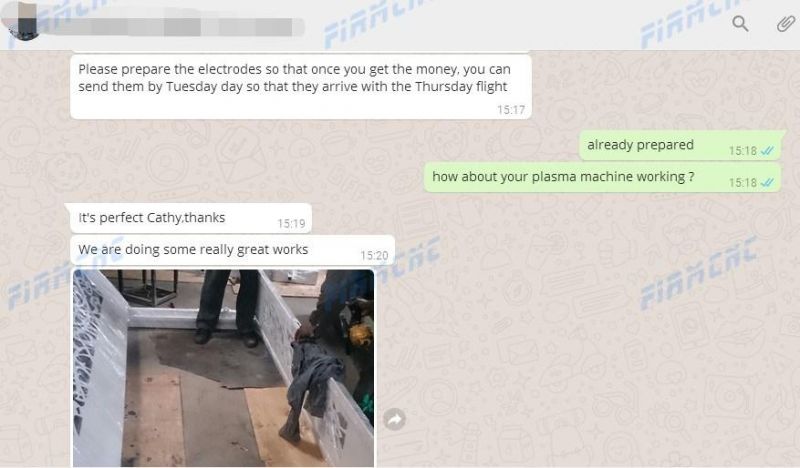

Customer feedback
Gantry CNC Plasma Flame Cutting Machine Metal Cutter
Gantry CNC Plasma Flame Cutting Machine Metal Cutter
Gantry CNC Plasma Flame Cutting Machine Metal Cutter
FAQ
Customers often ask
1.Can you recommend a plasma machine to me ?
Yes, In order to give you a suitable plasma machine,pls tell me the max working area, materials for processing and the thickness
for materials processing engraving or cutting. Then perfect suitable plasma machine will be recommended
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?

If you have any interest pls feel free to contact me, the most suitable machine and best price will be provided asap
