• Model NO.：FM6060
• Warranty：24 Months
• Customized：Customized
• Condition：New
• Controller：DSP or Tk100 or Syntec Controller
• Motor：Servo Motor
• Spindle Power：3.0kw Water Cooling Spindle
• Transmission Way：Rack Gear
• Working Area：600* 600* 200mm
• Software：Artcam , Mastercam
• Guide Rail：Taiwan Hiwin Square Guide Rail
• Table：Movable T-Slot Table
• Inverter：Fuling , Delta Inverter
• Working Speed：8-15m ,Min
• Transport Package：Plywood
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：100 Sets,Month

Description FM

X,Y,Z Working Area

600x600x200mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Table Surface

T-slot Table

Frame

cast by iron

X, Y,Z Structure

Hiwin Rail Linear Guide and ball screw

Max. Power Consumption

(Without Spindle)  1.0Kw

Max. Rapid Travel Rate

16000mm/min

Max. Working Speed

10000mm/min

Spindle Power

3.0KW water cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

leadshine hybrid servo motor

Working Voltage

AC220V 50/60Hz

Command Language

G Code

Operating System

DSP System (Options: Ncstudio/Mach3 PC Software)

Computer Interface

USB

Flash Memory

128M(U Disk)

X,Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

Inverter

Delta/Fuling

Electrical components

Schneider

Limit switch

OMRON

Driver

Leadshine

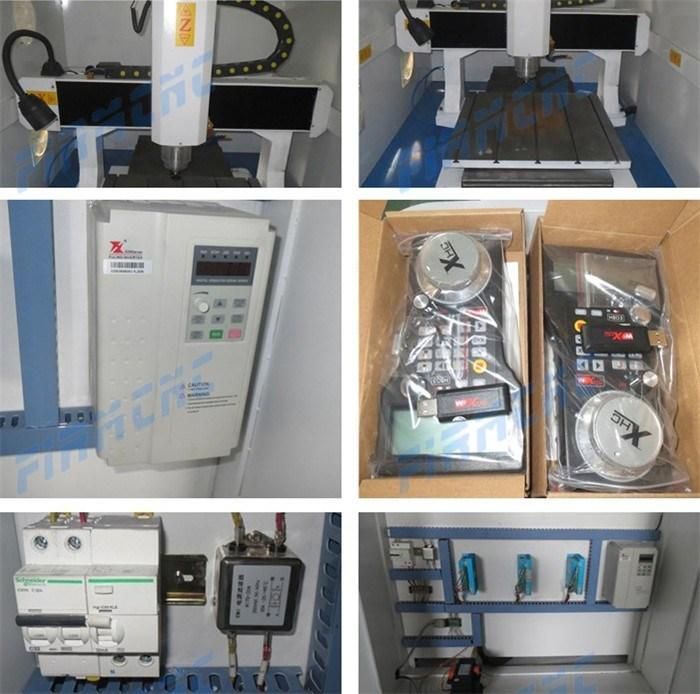

Main Parts pictures:

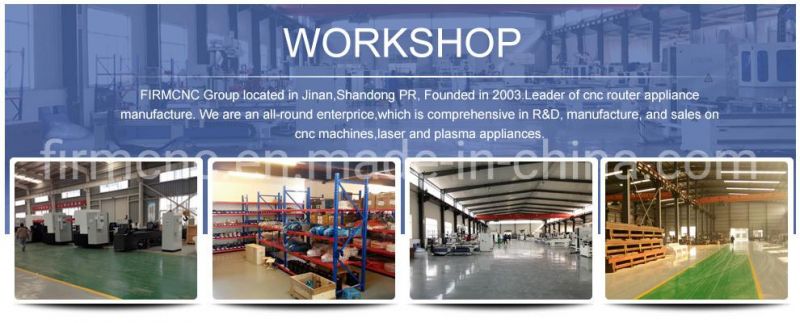

Our company:
The machines we are manufacturing and supplying:
cnc router, big watts fiber laser machine,
wood cnc machine, wood lathe,laser engraving
machine, fiber laser marking machine,
plasma cutting machine, oscilating machine,
stone carving machine
And besides good quality machines above, CO2 laser source, CO2 glass laser tube, water chiller, Air pump, fan, lens and mirror, laser cutting head etc.
Thanks to your correspondence reply, we can give you best quotation accordingly,
Thanks in advance
Wood router, cnc router, edge banding machine, woodlathe, woodturning lathe, cnc machine, fresatrici wood cnc, cnc router machine, wood cnc router, wood lathes for sale, laser cutting machine, carpentry machines, jinan equipment leather processing, cnc otherpowertools, oscillating tangential knife, drechselbank, cnc engraving machine, cnc router 1325, fiber laser cutting machine, metal mold engraving machine, shandong machinery, wood tools, woodworking tools, plasma cutting machine, punching


Our Servies
1.Two years quality warranty, the machine with main parts(excluding the consumables)
shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.We will provide the consumable parts at an agency price when you need replacement.
4.24 hours on line service each day, free technical support.
5.Our staff can be sent to your company to install or adjust if necessary.
Certificates:

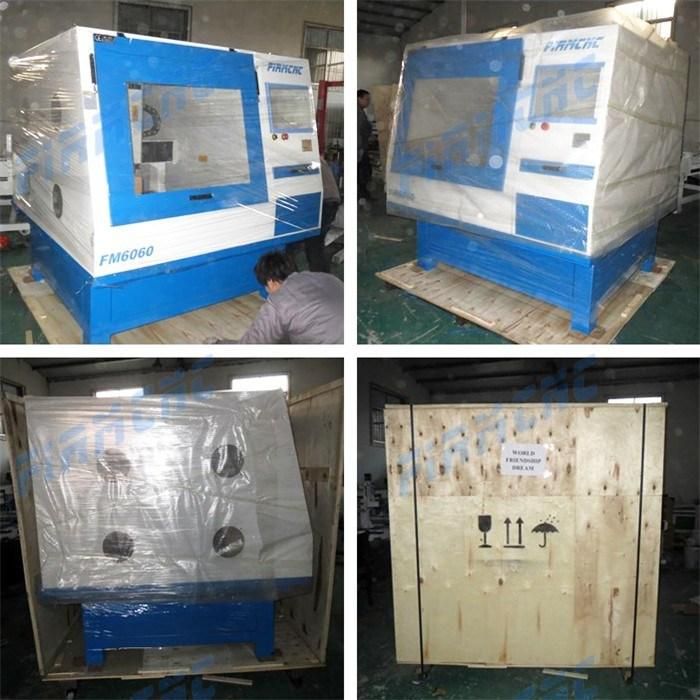

Paking&shipment:
Save space as much as possible for container loading.
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube

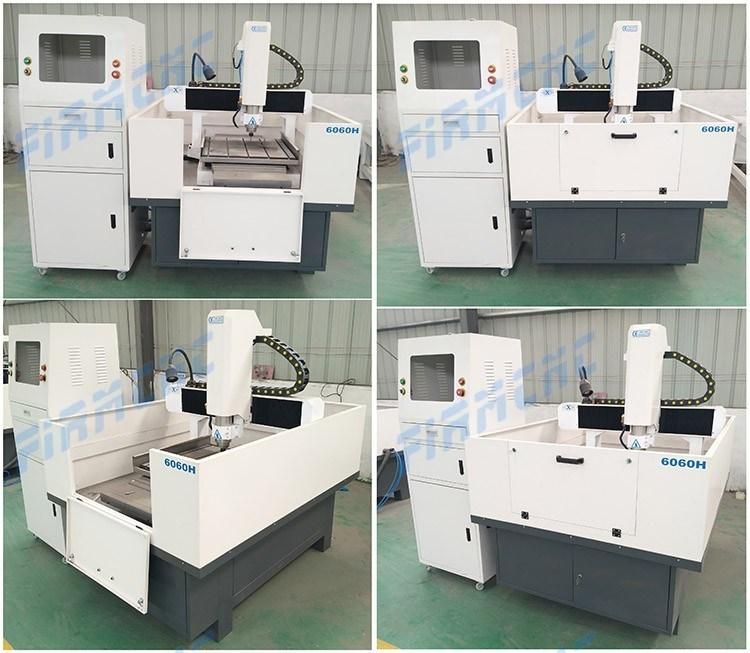

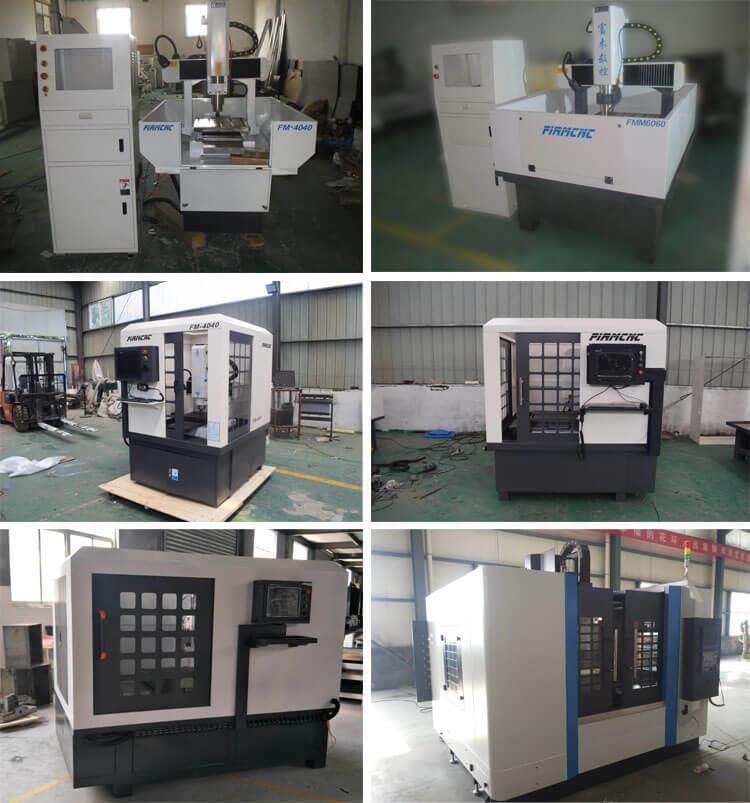

Other type mould cnc milling machines for your reference

FAQ
1.Can we visit your factory?
We do welcome our new and regular friends come here to have a visit. Besides,
Wecan pick you up at the airport or the train station
2.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.
3.How about your after-sales service?
We offer you 24 hours service phone,skype or MSN.
4.How about your guarantee period?
One year and during the time,if you have  any questions ,we will solve it for free.
5.How to maintenance the CNC Router?
a. First cut the power when maintain the machine. When check work must open the power,need the professional electrician to do this check work.
b. Repair and replacement the parts, please first confirm the specifications of the technical.
c. Regular clean the cooling system.
d. Should always monitor the voltage and electricity grid of the CNC Router.
e. Prevent the dust into the machine.
6. What's your payment term?
30% advance payment and the balance payment should be paid before delivery but after inspection.
