Excellent Copper Wire Drawing Machine with Siemens Motor
HOOHA Co., LIMITED- Type:LW Pulley Type Metal Drawing Machine
- Usage:Wire, Rope Wire, Prestressed Steel Wire
- Metal Material:Copper
- Outlet Diameter:0.1-1.2mm
- Max.Inlet Wire Dia.:8mm
- Block Dia.:500mm
Base Info
- Model NO.:24DHT-VG150
- Max. Number of Block:21
- Certification:REACH, RoHS, ISO
- Condition:New
- Motor:Germany-Siemens
- Bearing:Japan-NSK
- Inverter:Siemens
- Electric Element:Siemens and Omron
- Control Box:International Standard
- Transport Package:Plastic Package
- Specification:CE ISO SGS
- Trademark:HOOHA
- Origin:Dongguan, China
- HS Code:8479400000
- Production Capacity:3 Sets,Month
Description
Wire drawing machine with annealingModel 24DHT-VG150 control system digital readout button power control dual inverter wire inlet diameter 0.5-1.2mm wire finished diameter 0.1-0.32mm max wire speed 2000m/min max dies NO. 24 mechanical elongation 13%+8.7% construction of the machine body steel plate welded and annealed,vertical four shafts drawing capstan ceramic coated capstan diameter 242mm fix speed capstan diameter 206mm spool bobbin size 300*215*270mm transmission type import advanced flat belt drive bobbin loading unloading type expansion shaft or single shafts cone main motor 11kw spooler motor 4kw tension adjustment weight type tension pulley fix system automatic control of take up by PID max loading capacity 50kg lubrication capacity 50L/min lubrication type spraying brake magnetic brake lubrication type for bearing without oil annealing control 4 poles DC current output annealing capacity 21 KVA annealing voltage 0-57V annealing current 300A total power 15kw+21KVA power source 380V,50/60HZ Steam consumption 6-9kg/h 0.2-0.3MPa coiling water consumption 4-8m³/h 0.2-0.25MPa air consumption 15-25m³/h 0.4-0.6Mpa dimensions 4.7*2.5*2.3M weight 3000kg

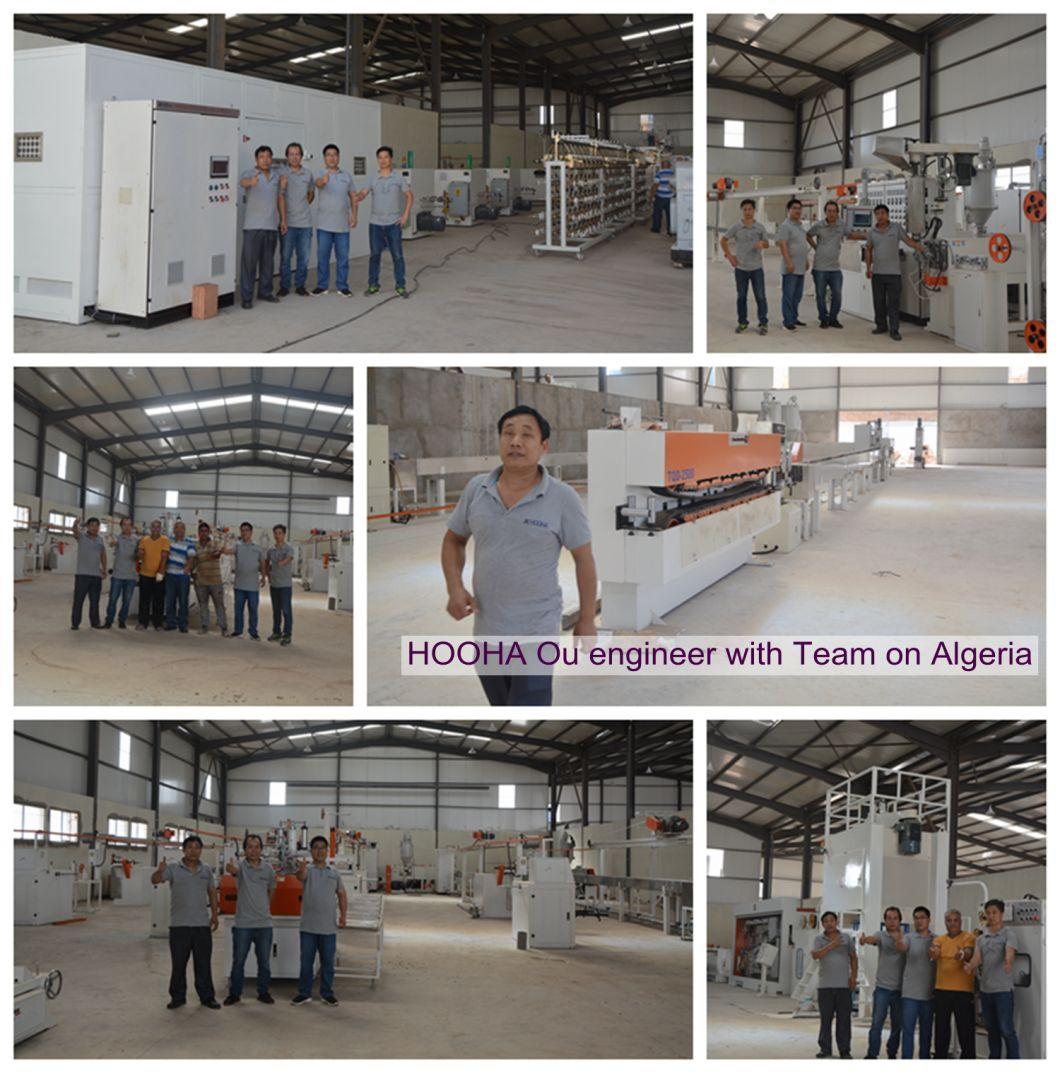

cable machine Team of HOOHA serviceName education Position Mainly responsible for project Specializing in project Industry working history ( year ) zanyang Xie college General Engineer The total project design and planning power cable machine 15 xioahua Hu college Vis general engineer The total project design and planning net cable,data cable machine 10 Chnaghong Cheng college Engineer Drawings and after-sales service Teflon,Optical fiber cable machine 25 xiuwu Chen college General Engineer The total project design and planning copper drawing machine 15 lixin Yuan college Engineer The project design and planning coppwer wire making technical 16 zhenghai Qiu college cable engineer After service cable making and cable factory management servie 15 jinxin Liu college Marketing engineer After service electrical engineer 7 xingguo Tang High school Electrical engineer After service electrical engineer 10 changqiang Li High school Maintain engineer After service machina maintain and install service 10 haipin Li University Engineering director Marketing and sales project consulting 8 sen Yang University Engineering translator Marketing and sales project consulting 5
FAQInstallation
(3 choices )a. HOOHA's Chinese installation team. c. DIY Guide: HOOHA supports online guidance. How to Start Contact us and leave your contact email and phone number.
