• Model NO.：1100T
• Usage：Lights, Cars and Motorcycle Accessories
• Configuration：High Configuration, High Quality
• Material：Die Casting Machine Carbon Steel
• Features：High Efficiency, Energy Saving, High Yield
• Transport Package：Customized
• Specification：16*4.8*4.8
• Trademark：longhua Die Casting Machine
• Origin：China(Mainland)
• HS Code：8454301000
• Production Capacity：1set,Sets Per 3-Month

Basic Info.

Model NO. 1100T Usage Lights, Cars and Motorcycle Accessories Configuration High Configuration, High Quality Material Die Casting Machine Carbon Steel Features High Efficiency, Energy Saving, High Yield Transport Package Customized  Specification 16*4.8*4.8 Trademark longhua Die Casting Machine Origin China(Mainland) HS Code 8454301000 Production Capacity 1set/Sets Per 3-Month

Product Description

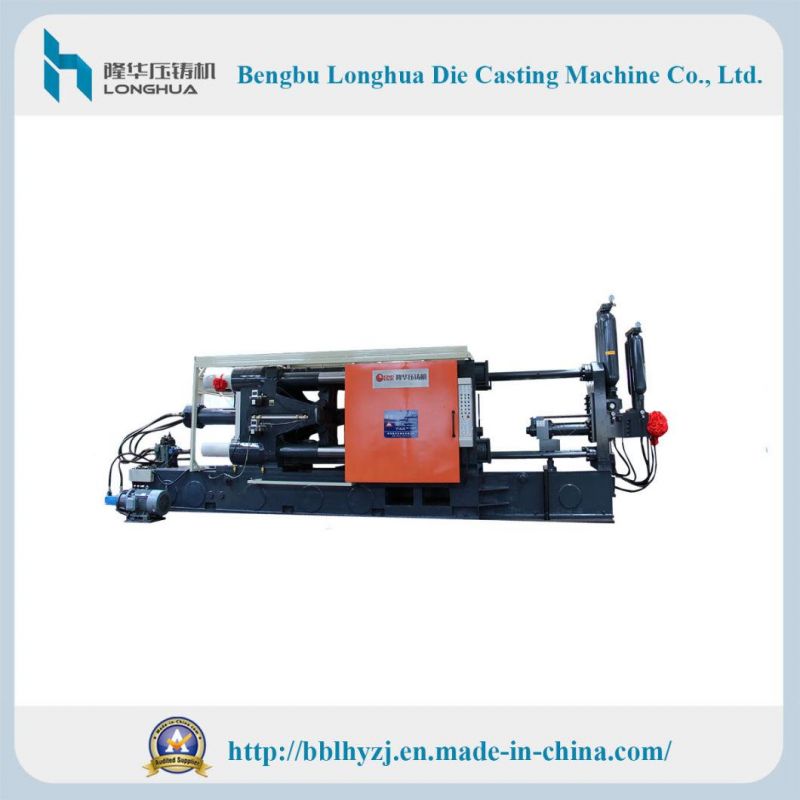

1100T Highly Efficient New Arrival Injection Moulding MachineLong Hua die-casting machines are applicable to manufacture of automobile and motorcycle parts (engine cylinder block, cylinder head, crankcase, hinged door covers, oil pan, gearbox housing, gearbox end cap, dashboard, etc.), electric escalator handrail/steps, industrial/road/railway/air/agricultural machinery, streetlights shells,potlight shells, building material parts, furniture, aluminum arts, copper arts, magnesium alloy products, non-ferrous metal processed products and other die casting products.

 LH series of standard parameter table (1100T)

Items	Unit	Specification
Hydraulic Working Pressure	MPa	16
Clamping Force	KN	11000
Space Between Tie Bars	mm	1050*1050
Tie Bar Diameter	mm	¢200
Die Opening Stroke	mm	880
Injection Force(intensify)	KN	882
Plunger Launch Distance	mm	300
Injection Position	mm	0 -300
Plunger Diameter	mm	¢100----¢120
Injection Stroke	mm	800
Casting Pressure (intensify)	MPa	138.6-78
Casting Fiange Protrusion	mm	20
Casting Fiange Diameter	mm	240
Max Casting Area Under 40Mpa	CM2	2500
lnjection Weight(Al)	Kg	18
Die Height(Min--Max)	mm	400~1150
Ejector Force	KN	500
Ejector Stroke	mm	200
Motor Capacity	Kw	30*2
Machine Dimensions  (L*W*H)	m	10.6*3.5*3.8
Referential Machine Weight For Uplifting	T	65
Oil Tank Capacity	L	2800

We reserve the right to make any technical improvement without further notice

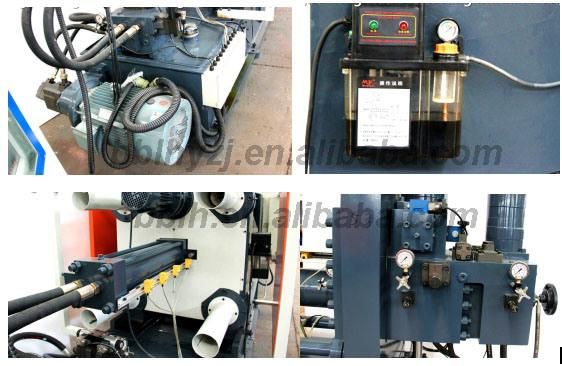

Product details Primary performance and features of Longhua Die Casting machines1.  Double proportional control (electric regulation of pressure and flow, with a multi-level pressure and speed control as well as low pressure die close protection functions).
2.  Dual circuit design (air injection and pressure building are separately designed without mutual interference and fault occurrence).
3.  Four-stage (multi-stage) injection system:
     A.Maximum speed> 8M/s (6M / s for those more than 2000T), which can effectively control the filling time and casting formation, in addition to unique braking and uniform acceleration injection function that can effectively prevent flash and allow more flexible injection process.
     B.Minimum speed 0.1-0.7M/s, which can be precisely controlled to prevent air invasion from causing air trap.
     C.Pressure building time ≤15 M/s, which allows to change pressure building speed according to process requirements, strengthening the casting density without causing product distortion.
      D.Dry cycle time is reduced by more than 15%; Oil pump flow increases by more than 20%; Cooler capacity is enhanced by more than 100%; Proportion of conforming finished products rise by 100%; productivity is improved by 20% as compared to the past.
4.  The internationally-favorable PLC man-machine interface control system, casting product data storage and monitoring capabilities, timely alarm in case of abnormality, and elimination of large quantities of defective products.
5.  Unique static and dynamic performance with dual core-pulling devices ensures one-time formation of precise, complicated products.
6.  The injection system uses European draw-bar structure with a variety of choices for center and eccentric injection positions that provide easy adjustment, high precision, and applicability to various complex molds.
7.  Large-scale die-casting machine above 1600T uses hydraulic pumping means which allows safe and fast replacement of large molds.
8.  Independent quick clamping system and unique hydraulic driven gear-type mold height adjusting mechanism are resistant to impact, providing longer service life and fast production, with an output on a shift increased by over 15%.
9.  Liquid nitrogen super low temperature installation method ensures precision and prolongs service life of toggle parts.
10.  High quality, high rigidity and wear resistant casting platen adopts finite element analysis design that brings even stress distribution, little distortion and precise mold clamping.
11.  Electric central lubrication system provides scheduled, quantitative lubrication and improves service life.
12.  Electrical and hydraulic components are well-known brands made in Europe, Japan and China Taiwan.
13.  Die-casting unit island design provides various interfaces and software packages for a variety of advanced intelligent peripheral devices.
14,  Hydraulic system consists of:The most advanced uniform accelerated multistage injection system in ten world Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
