• Model NO.：Buckle machine
• Transport Package：Plywood Case Packing
• Specification：3.2*2.15*3.0m
• Trademark：jiatong
• Origin：Taizhou
• HS Code：8477101090

Basic Info.

Model NO. Buckle machine Transport Package Plywood Case Packing Specification 3.2*2.15*3.0m Trademark jiatong Origin Taizhou HS Code 8477101090

Product Description

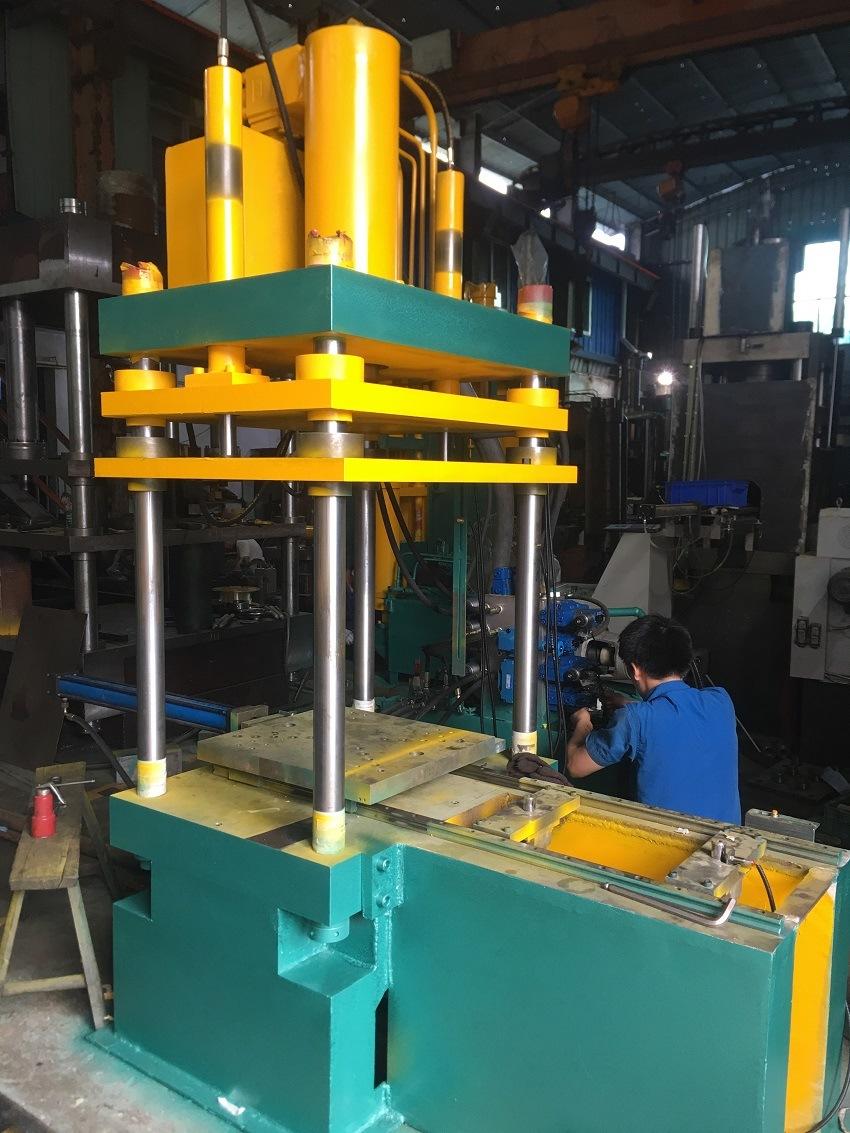

1. Type: XSKP-63T,XSKP-125T,XSKP-/200T
2. Specific requirements:

 The function of XSKP series stator buckle can meet the production process requirements of different stator and different slots.
The equipment does not pollute the environment and endanger human health.
The operators shall conduct free training on the use of the equipment and provide party a with relevant technical information on the use, repair and maintenance of the equipment

model	XSKP-63T	XSKP-100T	XSKP-200T
Upper cylinder closing force (KN)	630	1000	2000
Die closing cylinder stroke (mm)	450	600	700
Table effective area (mm)	600*600	900*900	1300*1300
Height of buckle (mm)	400	600	1000
Feeding stroke (mm)	700	1100	1400
Expanding tire force (Kn)	63	80	100
Inflating tire travel (mm)	50	50	50
Big bar (mm)	Φ70	Φ100	Φ130
Ejection cylinder force (Kn)	80	100	/
Ejection cylinder stroke  (mm)	500	600	/
Buckle range (outside diameter mm)	210-350	300-590	590-900
Oil pump type	T6C-46	T6C-63.8	T6C-88.8
Maximum open distance (mm)	600	1000	1400
Motor power (Kw)	7.5--6P	15-6P	18.5-6P
Working pressure (Mpa)	20	20	20



1 electrical		Japan's mitsubishi
1.1 PLC programmable controller and touch screen		Schneider  Sino-german joint venture,
1.2 button, indicator light		Schneider  Sino-german joint venture,
1.3   and ac contactor, low-voltage electrical appliances
2 the hydraulic system
2.1 control valve,		Taiwan oil research
2.2 oil pump		Nanjing jincheng
3.1 host,	1
3.2 electric control cabinet	1
3.3 hydraulic station	1

FAQ:
Q1: Are you a trading company or a manufacture?
A1: We own a factory ourselves, and we can assure the good quality of the machine for you.

Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year
 warranty of the spare parts, free of charge.

Q3: Why choose our company?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.

Q4: Where is your factory? How can visit you?
A4: Our factory is near to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.

Q5:When can I get my machine after I paid?
A5:We will deliver the machines on time as the date we agreed both side.
