Automaticlly Electrical 380V Steel Rod Wire Cold Upsetting Machine
Henan Yugong Machinery Co., Ltd.- Type：Forging Operation
- Forging Forming Method：Mold Forging
- Power Source：Hydraulic Pressure
- Feature：Automation
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：YG-150
- Customized：Non-Customized
- Advantage：Work Flexible
- Condition：New
- Model：Yg-150
- Available Range：12mm-40mm
- Strong Power of Flux：6.3lmin
- Rating Pressure：<60MPa
- The Total Power of Machine：4.0kw
- The Size of Exterior：1225*570*1100mm
- The Move Space of Piston：100mm
- Transport Package：Wooden Case Export Package
- Specification：1225*570*1100mm
- Trademark：Yugong
- Origin：China, Henan
- HS Code：8479819000
- Production Capacity：5000,Month
Description
WORKING PRINCIPLE:
1. First, use GD-150 to forge the end of rebar;
2. Second, use GZL-45 to process thread on the forged end of rebar;
3. Third, use parallel thread coupler to abutting joint two threaded ends of rebar.
ADVANTAGES:1. Adopts upset forging parallel thread connection technology;2. Wide working range: Adaptable for 12mm-40mm same diameter, different diameter, bending, new and old, advance covered up rebar of GB 1499, BS 4449, ASTM A615 or ASTM A706 standard.3. High strength: Stronger than the reinforcement bar and guarantees bar break under tensile stress(tensile strength of connection point =1.1 times of connected bar's specified tensile strength). It can satisfy the requirements stipulated in the Chinese standard JGJ107-2003, JG171-2005.4. High efficiency: Upset forging and threading one joint only needs no more than one minute, and handy operation and quick link.

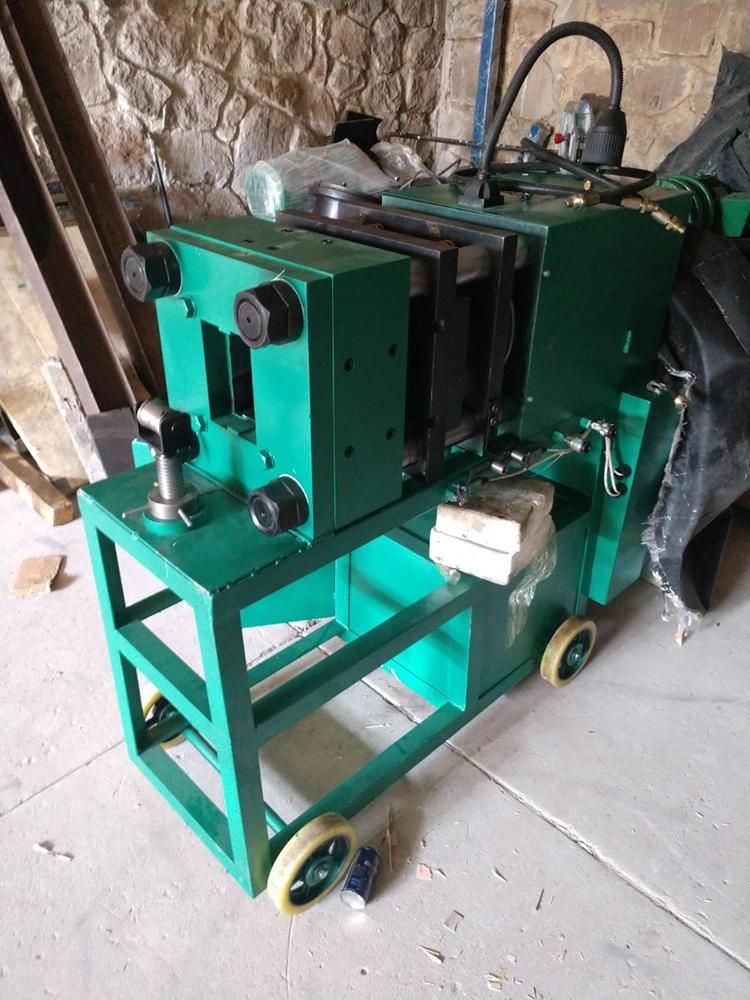

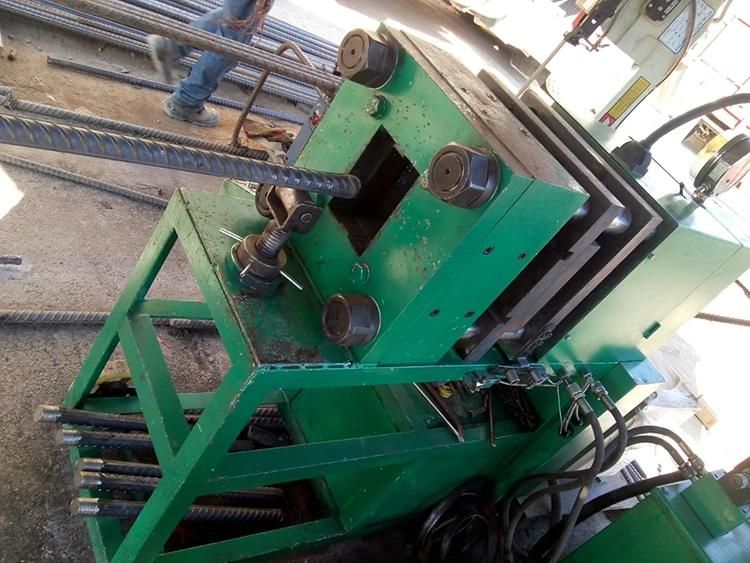

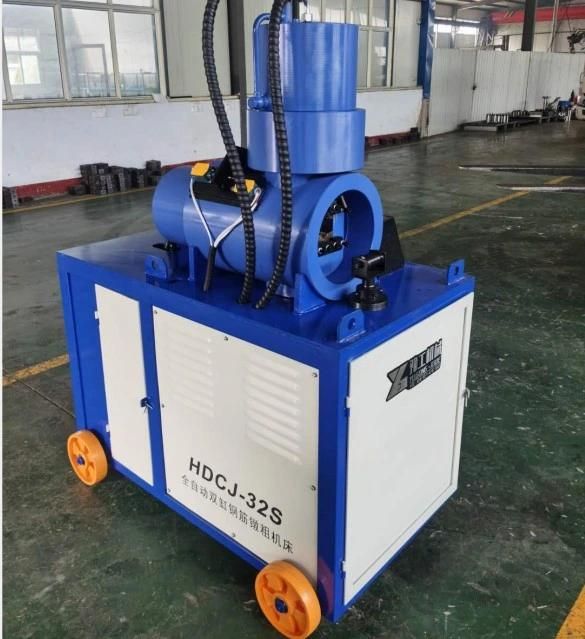

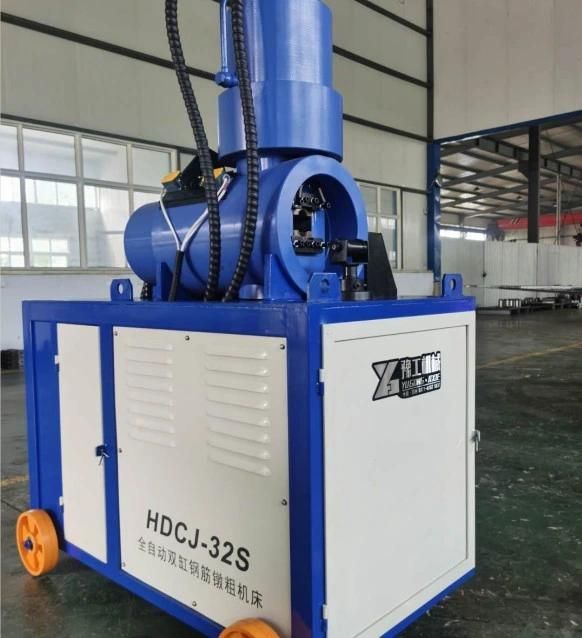

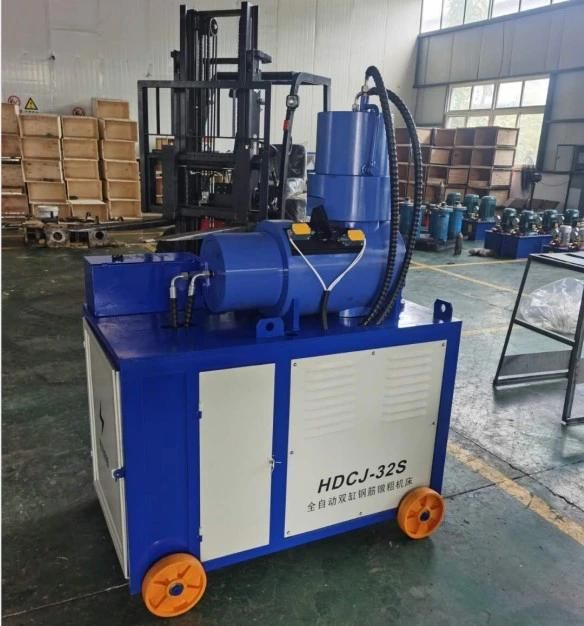

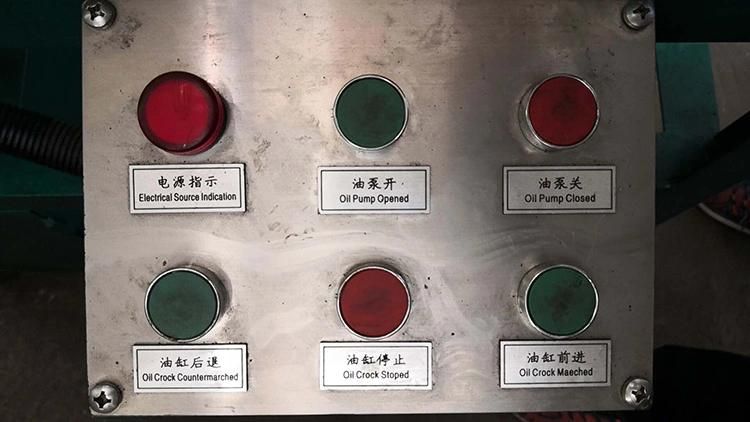

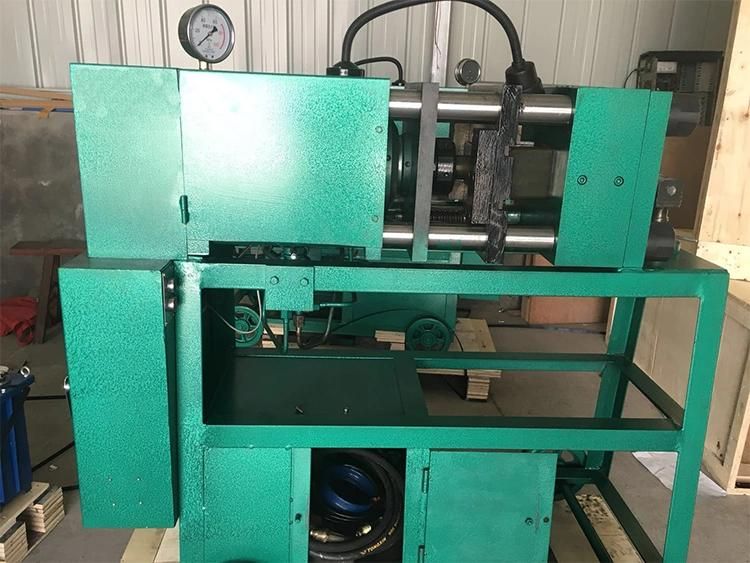

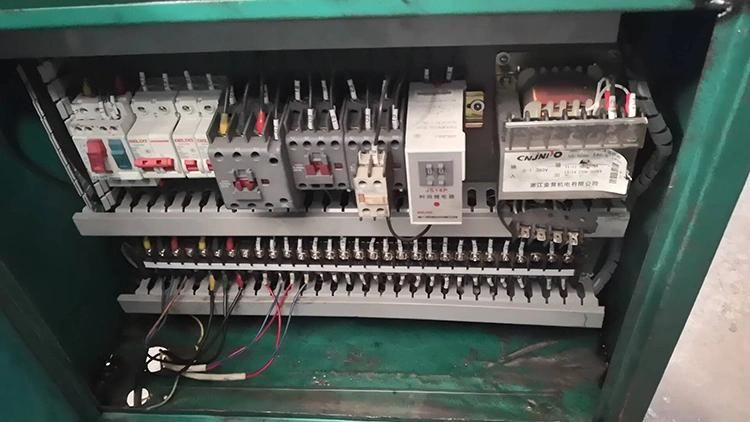

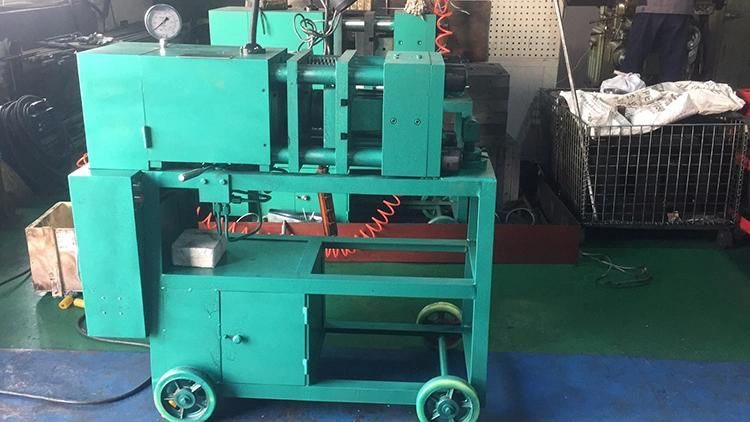

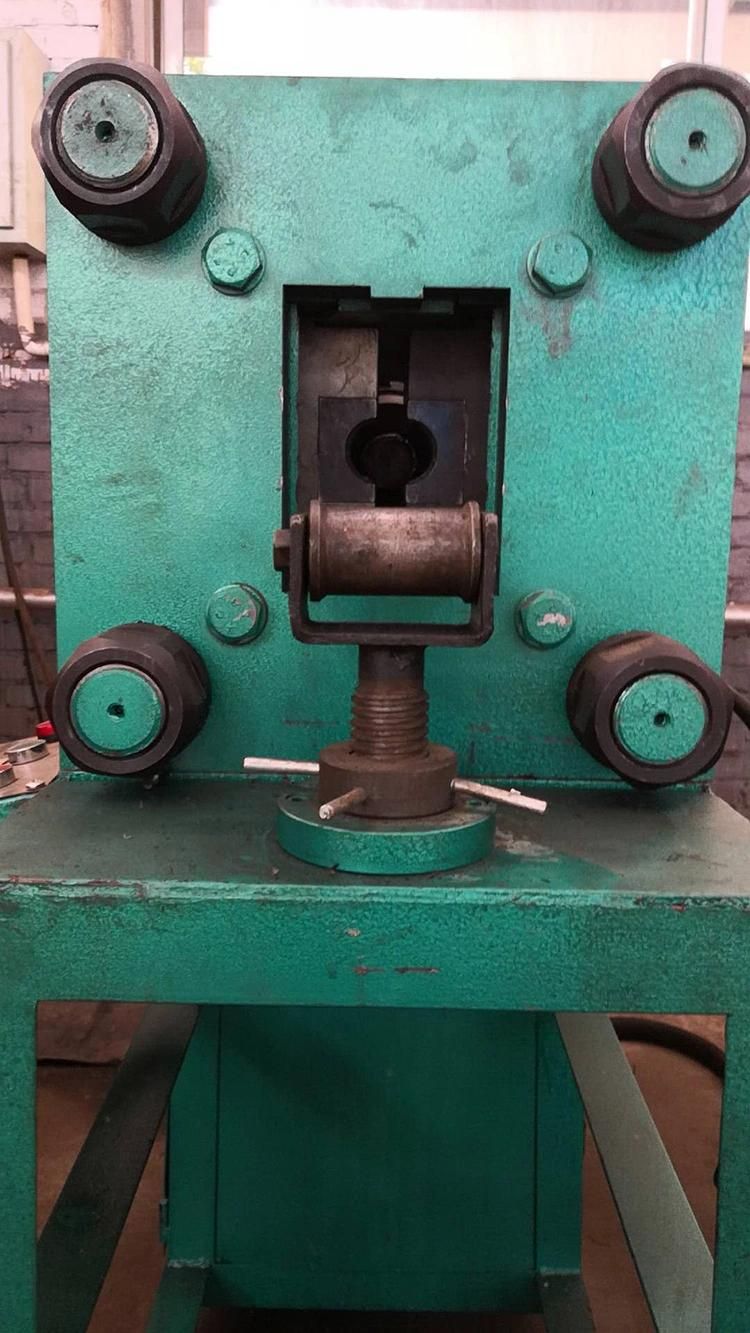

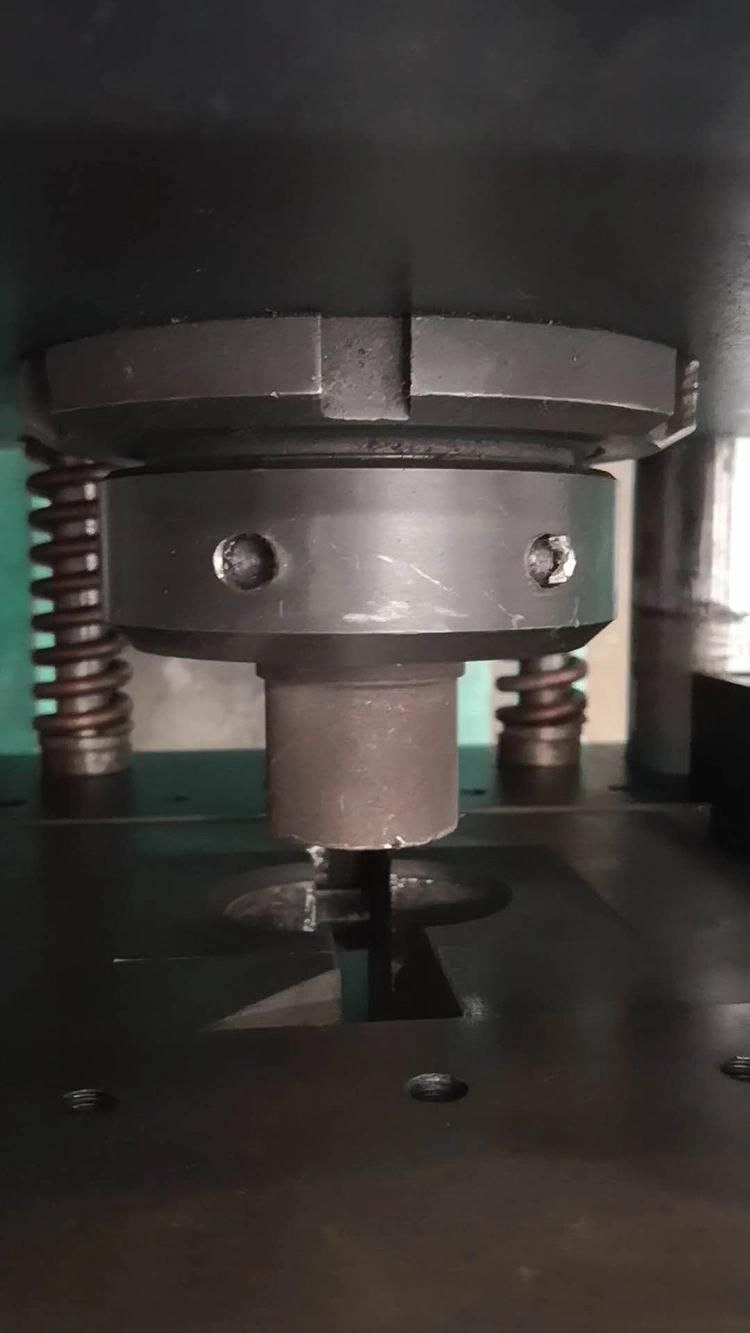

PRODUCT DISPLAY:
