• Model NO.：Comflex
• Material：Stainless Steel
• Hose Application：Elastic Element
• Delivery Date：30 Days
• Voltage：380 V,415V
• Power：6-8kw
• Machine Color：Can Be Customized
• Labor Required：1 Person
• Payment Method：30% as Deposit by Tt
• Transport Package：Standard Seaworthy Packing
• Specification：ID6-200
• Trademark：Comflex
• Origin：Wuxi
• HS Code：8462391000
• Production Capacity：300sets,Years

Basic Info.

Model NO. Comflex Material Stainless Steel Hose Application Elastic Element Delivery Date 30 Days Voltage 380 V/415V Power 6-8kw Machine Color Can Be Customized Labor Required 1 Person Payment Method 30% as Deposit by Tt Transport Package Standard Seaworthy Packing Specification ID6-200 Trademark Comflex Origin Wuxi HS Code 8462391000 Production Capacity 300sets/Years

Product Description

Fully Automatic Measuring Instrument/Force Sensor Bellows Forming Machine~




1. Main Parameter

Inner diameter	6-25mm	25-35mm
Thickness	Max. 0.15mm*2plies Max. 0.25mm*1ply	Max. 0.2mm*2plies            Max. 0.3mm*1ply
Tube length before forming	≤165mm	≤360mm
Forming speed	1800pcs/8h	3000pcs/8h
Power	6-8kw	6-8kw

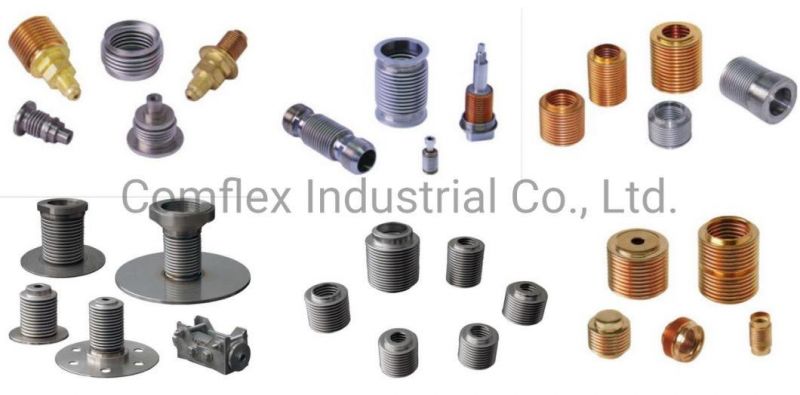

Bellows produced by our muti-pitch bellow forming machineAs a metal bellows for sensitive components, damping components, compensation components, sealing components, valve components and pipeline connectors, it is widely used in automatic control and measuring instruments, vacuum technology, machinery industry, power industry, transportation and atomic energy industry, etc. field. Metal bellows is a kind of pipe with a regular wave-like appearance. It is mainly composed of a bellows part and a matching connection part at both ends. It is mainly used for non-concentric axial transmission that requires a small bending radius, or irregular turns and expansion. , Or to absorb the thermal deformation of the pipeline, or to connect the pipeline to the pipeline or to connect the pipeline to the equipment where it is not convenient to install with a fixed elbow.

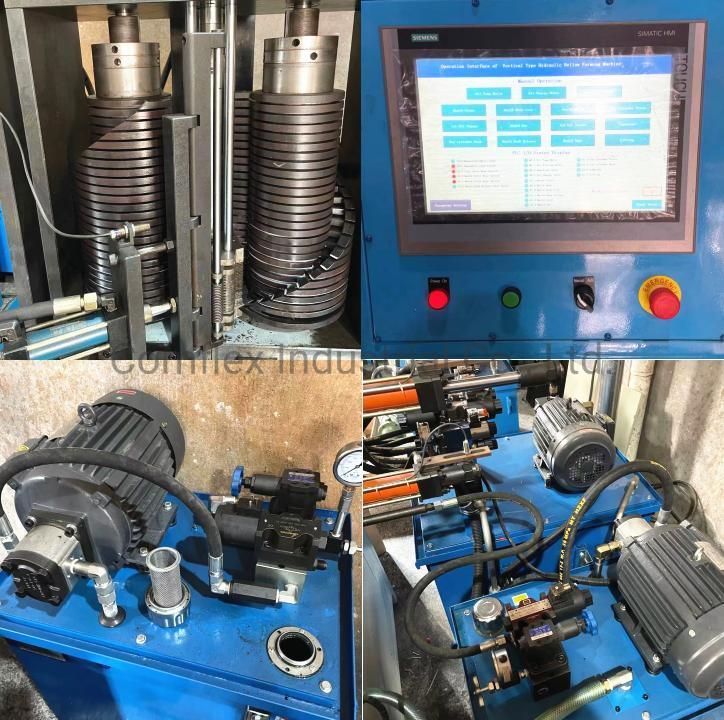

Machine details:


Youtube link for machine running   https://youtu.be/9tYzajay1q4
                                                            https://youtu.be/A5DMCbiOo7Q

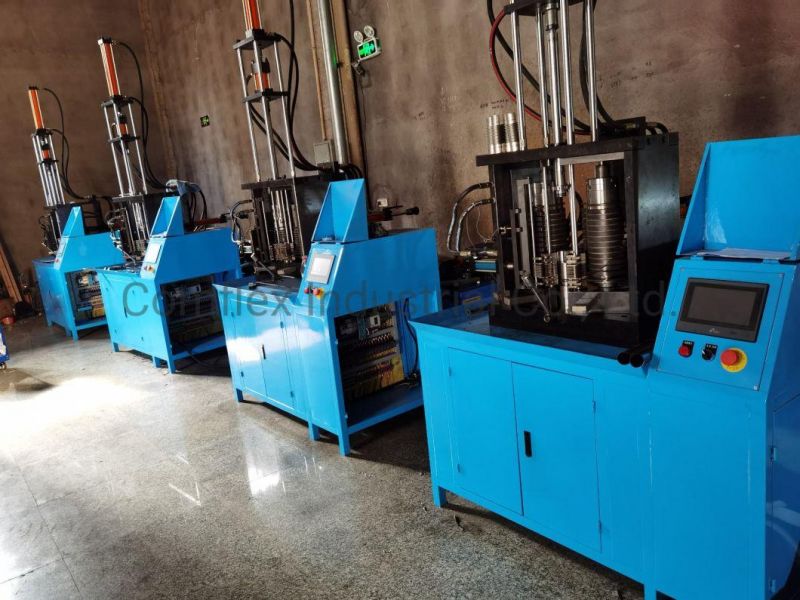

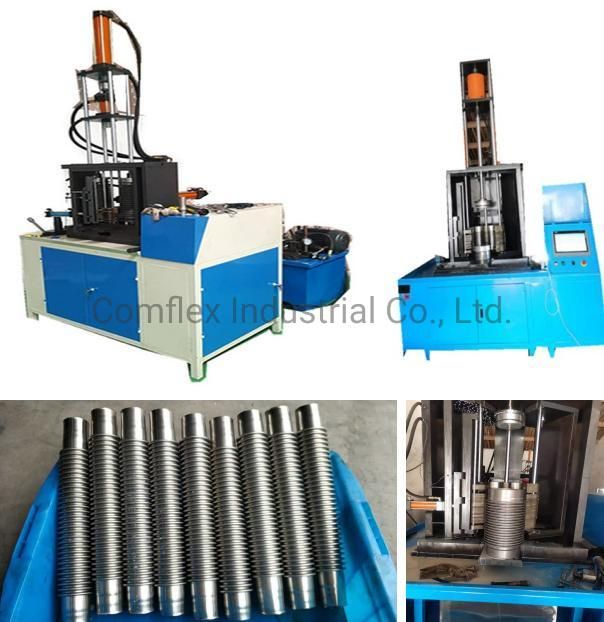

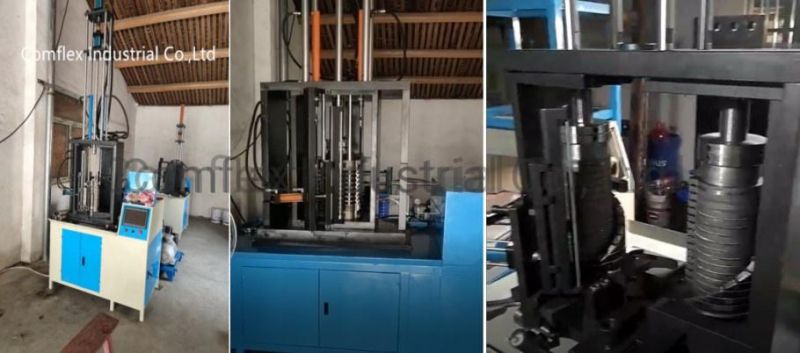

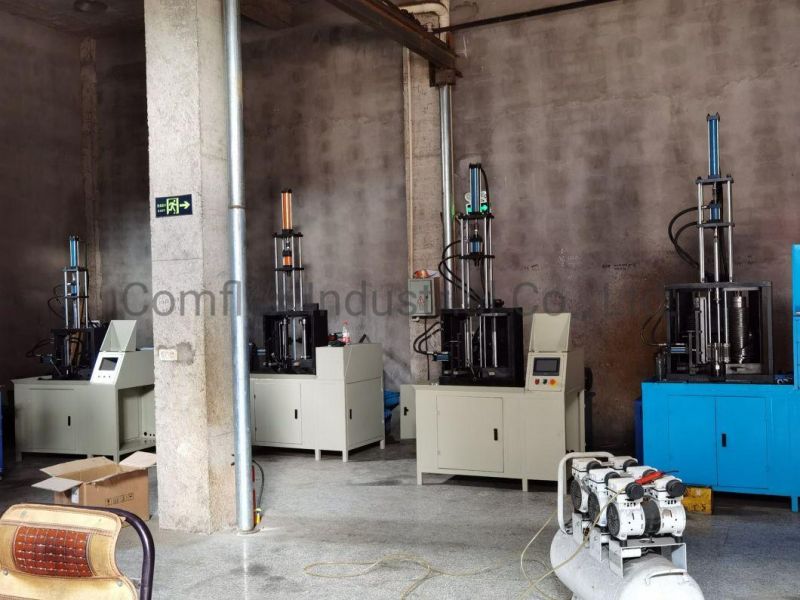

Machine Picture

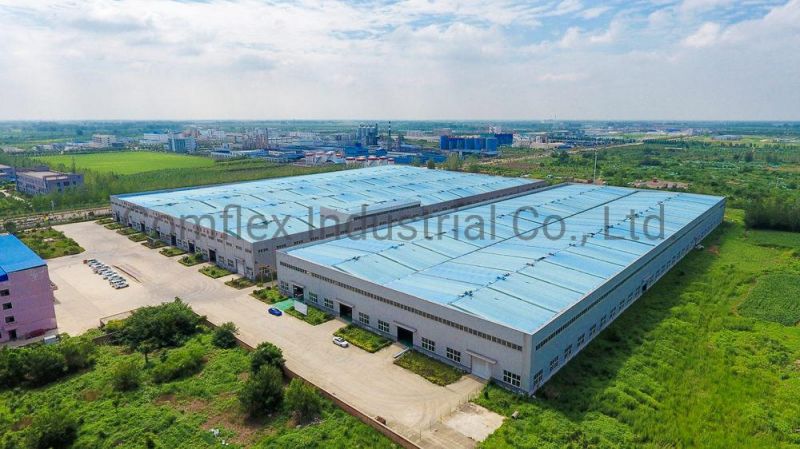

Company Overview

Comflex Industrial Co.,Ltd supply all kinds of machines related to metal hoses, bellows, and fabric expansion joints with more than 30 years. Meanwhile, we can also design and manufacture special equipment according your special requirement. Our machines have been exported to many countries, such as Ukraine,Russia, Viet Nam, India, Canada, Australia, Italy, France, UK, Turkey, etc.. We assure you long-term mutual beneficial cooperation relationship!



Application for Exhaust hose making machine

Exhaust hose making machine are widely used to manufacturing exhaust pipe or flex connectors for the truck. Compared with interlock ASS hose, the 3-s hose has the following features:

• Low leakage
• Better sealing performance
• Flexible
• Exhaust connector, Exhaust pipe for the truck.
  Industrial flexible metal hose making.
• SS & sss type, round & polygonal type

No	Size	Produce speed/hr	Strip size(width*thickness)
1	7mm	200	4mm*0.22mm
2	9mm	200	6mm*0.2mm
3	11,14mm	200	7.1mm*0.2mm
4	16,18,21mm	115	8.6mm*0.2mm
5	26,29,30mm	100	9.5mm*0.23mm
6	32,35mm	100	12.7mm*0.25mm
7	37,42mm	100	15mm*0.3mm
8	45,51,55mm	100	17mm*0.35mm
9	60,63,70,76,80mm	80	21.2mm*0.45mm
10	89,95,102mm	70	25mm*0.55mm

Machine Packing & Delivery





Customer Accept Machine Training




Certification






FAQ
Q:Why choose us as your supplier?

A:We are most professional in metal bellow, flexible conduit making machine,interlocked metal hoses making machine with more than 30 years' experience.


Q:What sizes you machine can make?

A: Hydroforming bellow making machine (DN6-200mm)
B: Interlock Hose:ID3-ID450 on different machines



We need to know the following information to quote you correct machinery:

1:What is size of metal bellow/hose you need to make?
2:Material of bellow/hose
3.Application of bellow/hose
