416 Model for Combined Sheet Precise Load Fastener Insertion Machine

RSM Machinery Co.,Ltd.
  • After-sales Service：Online Support
  • Automatic Grade：Automatic
  • Power Supply：Hydraulic Pressure
  • Warranty：1 Year
  • Certification：CE
  • Color：Red,Grey, Blue,White

Base Info

  • Model NO.：416 model
  • Force：44kn
  • Throat Depth：406mm
  • Throat Height：340mm
  • Main Power：1.5kw
  • Number of Insert Per Hour(Manually)：1200
  • Tank Capacity：38L
  • Weight：350kg
  • Dwell Time：No
  • Transport Package：Export Wooden Box
  • Specification：1.28*1.1*2.1m
  • Trademark：RSM
  • Origin：Shanghai, China
  • HS Code：8463900090
  • Production Capacity：25sets-30sets,Month

Description

Overview Product DescriptionProduct Parameters

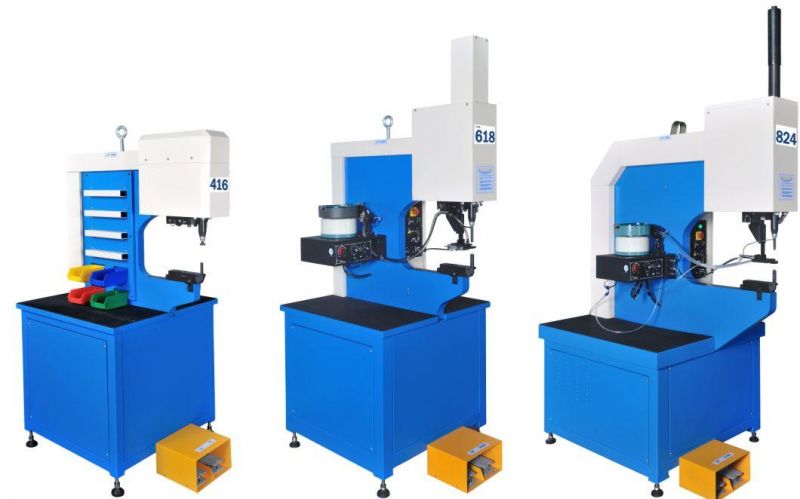

416 Model for Combined Sheet Precise Load Fastener Insertion Machine

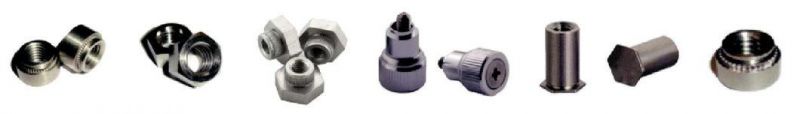

 416PLUS618PLUS824PLUSForce44KN54KN72KNInsertion capacityM8 nut/M6 standoff/M4 studM10 nut/M8 standoff/M6 studM12 nut/M10 standoff/M8 studThroat Depth406mm450mm610mmThtoat Height340mm381mm421mmStroke Length AdjustableYesYesYesNumbers of Inserts Per Hour(Manually)120012001200Ram Force Repeat Accurancy±1%±1%±1%Satety DeviceYesYesYesManual Turret Insertion System(Optional)YesYesYesAutomatic Feeding System(Optional)NoYesYesClinching Joint System(Optional)YesYesYesDwell timeNoStandardStandardPositive stopNoOptionalStandardBatch Counter(Optional)NoYesYesMain power1.5kw2.2kw3.75KWTank Capacity38L38L76LPower Supply380V/3Phase/50HZ380V/3Phase/50HZ380V/3Phase/50HZDimension(W*D*H)mm740*840*1650800*810*21001025*960*2500Net Weight(Kg)335610950Company ProfileCertificationsFAQ

Why Choose Us

RSM special design and precision machining of oil cylinder to ensure long-term stability even in poor working environment

Hydraulic system adopt Taiwan Winner valve group ensure high reliability work 24 hours a day,  according to the high
pressure value stable repeat work requires the freedom to choose the  dwell time ensure insertion 100% qualified
Can be equipped with automatic feeding system, clinching joint system

Monthly Deals Sheet Metal 618 Plus Fastener Insertion Machine with Auto Tooling System

Pressure During The Whole Trip - Pressure on the any point of processing, security system can use, and
the system does not need to make any adjustment, it does not increase the time of device initialization and tool
change setting.

Energy Saving And Environment Protection - Hydraulic drive can reduce Energy consumption  by about
40% relatively pneumatic and hydraulic drive, greatly reducing the Energy costs of equipments, the machine only
press instantly applied in the full-load, standby power consumption is only 15%.

Saftey System

*This picture demonstrates the anti-pressure hand function of the machine refers to the special security mode of processing,
only for reference, prohibited imitation.
