• Model NO.：GMMA-80A
• Power Source：Electric
• Certification：CE, ISO
• Bevel Angel：0-60 Degree
• Plate Thickness：6-80mm
• Milling Head：Dia 80mm
• Single Bevel Width：0-20mm
• Bevel Width：0-70mm
• Plate Material：Carbon Steel, Stainless Steel, Alloy Steel etc
• Cutting Mode：Cold Cutting by Milling Inserts
• Transport Package：Wooden Case
• Specification：800 * 800
• Trademark：TAOLE
• Origin：Shanghai, China
• HS Code：846090
• Production Capacity：600 Sets Per Year

Basic Info.

Model NO. GMMA-80A Power Source Electric Certification CE, ISO Bevel Angel 0-60 Degree Plate Thickness 6-80mm Milling Head Dia 80mm Single Bevel Width 0-20mm Bevel Width 0-70mm Plate Material Carbon Steel, Stainless Steel, Alloy Steel etc Cutting Mode Cold Cutting by Milling Inserts Transport Package Wooden Case Specification 800 * 800 Trademark TAOLE Origin Shanghai, China HS Code 846090 Production Capacity 600 Sets Per Year

Product Description

GMMA-80A Plate Beveling Machine for Carbon Steel and Stainless Steel

Plate edge milling machine mainly to do bevel cutting or clad removal / clad stripping on steel plates material like mild steel, stainless steel, aluminum steel,alloy titanium,hardox,duplex etc.  GMMA-80A Beveling Machine for plate thickness from 6 to 80 mm, bevel angel from 0 to 60 degree adjustable. GMMA-80A beveling machine widly used for carbon steel plate beveling and stainless steel plate beveling.

Specifications for GMMA-80A Plate Beveling Machine for Carbon Steel and Stainless Steel

Models	GMMA-80A	GMMA-80R
Power Suppy	AC 380V 50HZ	AC 380V 50HZ
Total Power	4920W	4920W
Spindle Speed	500~1050r/min	500-1050mm/min
Feed Speed	0~1500mm/min	0~1500mm/min
Clamp Thickness	6~80mm	6~80mm
Clamp Width	>80mm	>80mm
Clamp Length	>300mm	>300mm
Bevel Angel	0~60 degree	0~±60 degree
Singel Bevel width	0-20mm	0-20mm
Bevel Width	0-70mm	0-70mm
Cutter Diameter	Dia 80mm	Dia 80mm
Inserts QTY	6 pcs	6 pcs
Worktable Height	700-760mm	700-760mm
Suggest Table Height	730mm	730mm
Worktable Size	800*800mm	1200*800mm
Clamping Way	Auto Clamping	Auto Clamping
Wheel Size	4 Inch STD	4 Inch Heavy duty
Machine Height Adjust	Hydraulic	Handwheel
Machine N.Weight	245 kgs	310 kgs
Machine G Weight	280 kgs	380 kgs
Wooden Case Size	800*690*1140mm	1100*630*1340mm

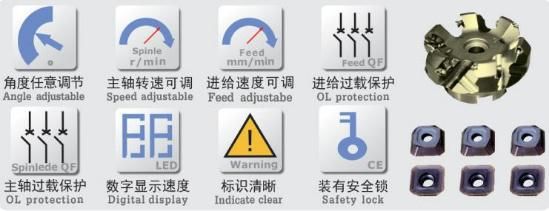

Futures for GMMA-80A Plate Beveling Machine for Carbon Steel and Stainless Steel

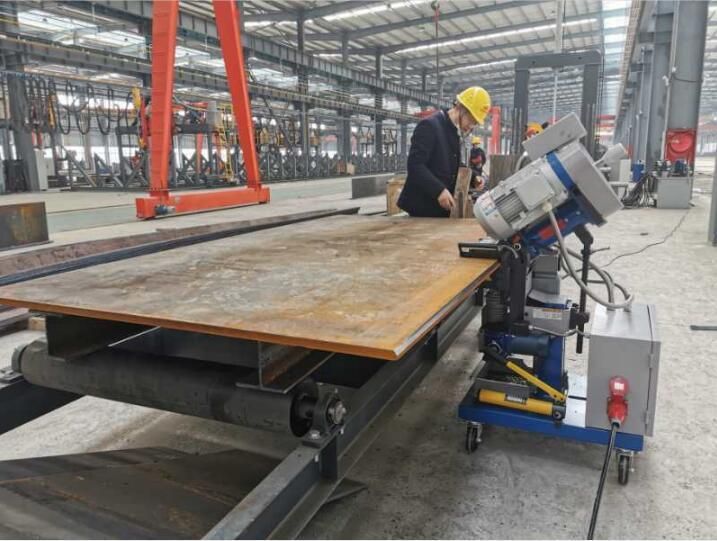

1) Automatic walking type beveling machine will walk along with plate edge for bevel cutting
2) Beveling machines with universal wheels for easy moving and storage (Heavy duty wheels for heavy duty plates)

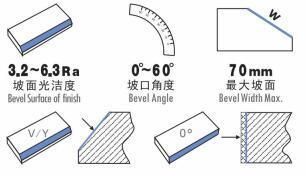

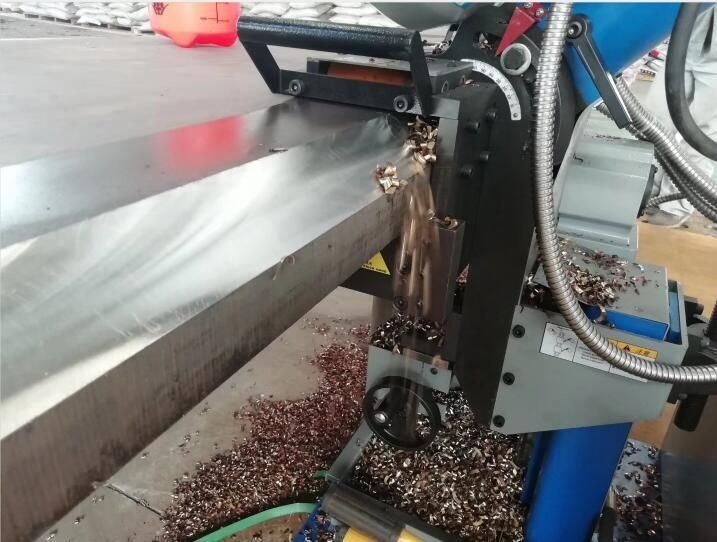

3) Cold cutting to aovid any oxide layer by using milling head and inserts for higher performance on surface Ra 3.2-6.3 . It can do        welding directly after bevel cutting. Milling inserts are market standard.
4) Wide working range for plate clamping thickness and bevel angels adjustable.
5) Unique design with reducer setting behand more safe.
6) Available for multi bevel joint type and easy operation.
7) High efficiency beveling speed reach 0.4~1.2 meters per min.
8) Automatic Clamping system and hand wheel setting for slight adjustment.
9)  Machine head turnable for both top bevel and bottom bevel
Application for GMMA-80A Plate Beveling Machine for Carbon Steel and Stainless Steel

1. GMMA-80R specially for heavy duty plates 6-80mm thick
2. Applicatd industry like steel construction, shipbuilding,pressure vessel,welding manufacturing
3. Machine turnable for Top bevel and bottom bevel


RFQ

Q1: Are you factory?

A1: Yes. We are the direct manufacture for plate beveling machine with brand of "TAOLE" and export with company name of "SHANGHAI TAOLE MACHINE CO.,LTD"

Q2: How long do you need for shipment?

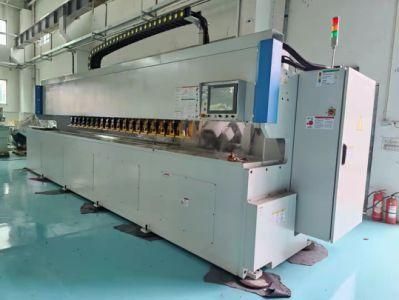

A2; Standard models of beveling machine are stock avaiblable which could be test and pack ready in 3-5 days.  Customized solutions normally need 30-45 days fresh made. CNC edge milling machine request 3-4 months.



Inquiry Guide for plate beveling machine

Before exact price offer. Can you pls advise below points to choose suitable models for metal sheet beveling?

1. Are you user or reseller for this beveling machine?
2. What is your plate material? ( Like Carbon steel, stainless steel or alloy steel etc)
3. What is your plate sizes? (Maximum and Minimum will be OK)
4. Do you request high precisions on the bevel surface?
5. What kind of bevel joint do you need to process?  Mostly like V/Y, K/X, U/J,L type, 0 degree clad removal.
6. How about bevel sizes ? (Better if could share the drrawing and sizes)

Pls feel free to contact us if any interested models or questions. Thank you.
