• Model NO.：PEQD-100
• Certification：CE
• Warranty：12 Months
• Customized：Customized
• Condition：New
• Marking Area：150 X 100mm
• Marking Type：Flat Marking
• Marking Content：Date Number Logo Picture
• Marking Depth：0.01-1mm
• Transport Package：Plywood Case
• Specification：ISO9000 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：84572000
• Production Capacity：500 units, month

Basic Info.

Model NO. PEQD-100 Certification CE Warranty 12 Months Customized Customized Condition New Marking Area 150 X 100mm Marking Type Flat Marking Marking Content Date Number Logo Picture Marking Depth 0.01-1mm Transport Package Plywood Case Specification ISO9000 & CE Trademark Perfect Laser Origin China HS Code 84572000 Production Capacity 500 units/ month

Product Description

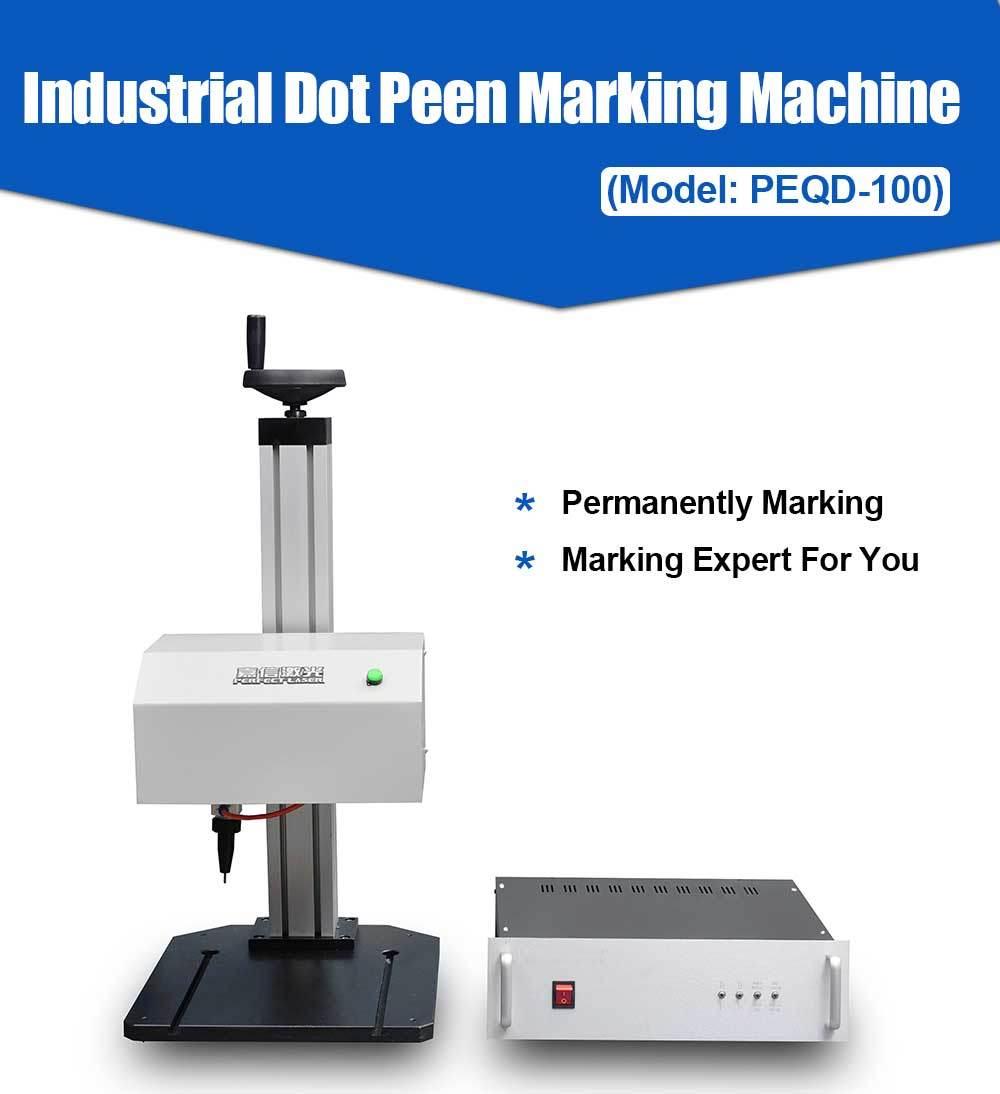

Flat Metal Nameplate DOT Pin Marking Machines
Model: PEQD-100
Contact: EmilyNameplate DOT peen marking machine (also called pin marking machine) is pneumatic marking machine that work by the vibration caused by the compressed air and the machine. It can mark signs, characters and pictures on various kinds of hard materials such as metal and plastic. It featured with distinct and beautiful effect, editable contents, adjustable sign size, depth, and high speed, etc. Nameplate marking machine is mainly consist of control system and the execution system. It is widely used in the field of mechanicall working and Automobile Industry. It is also the ideal choice of plane workpiece and the plate material marking.


Applicable materials and Industry:

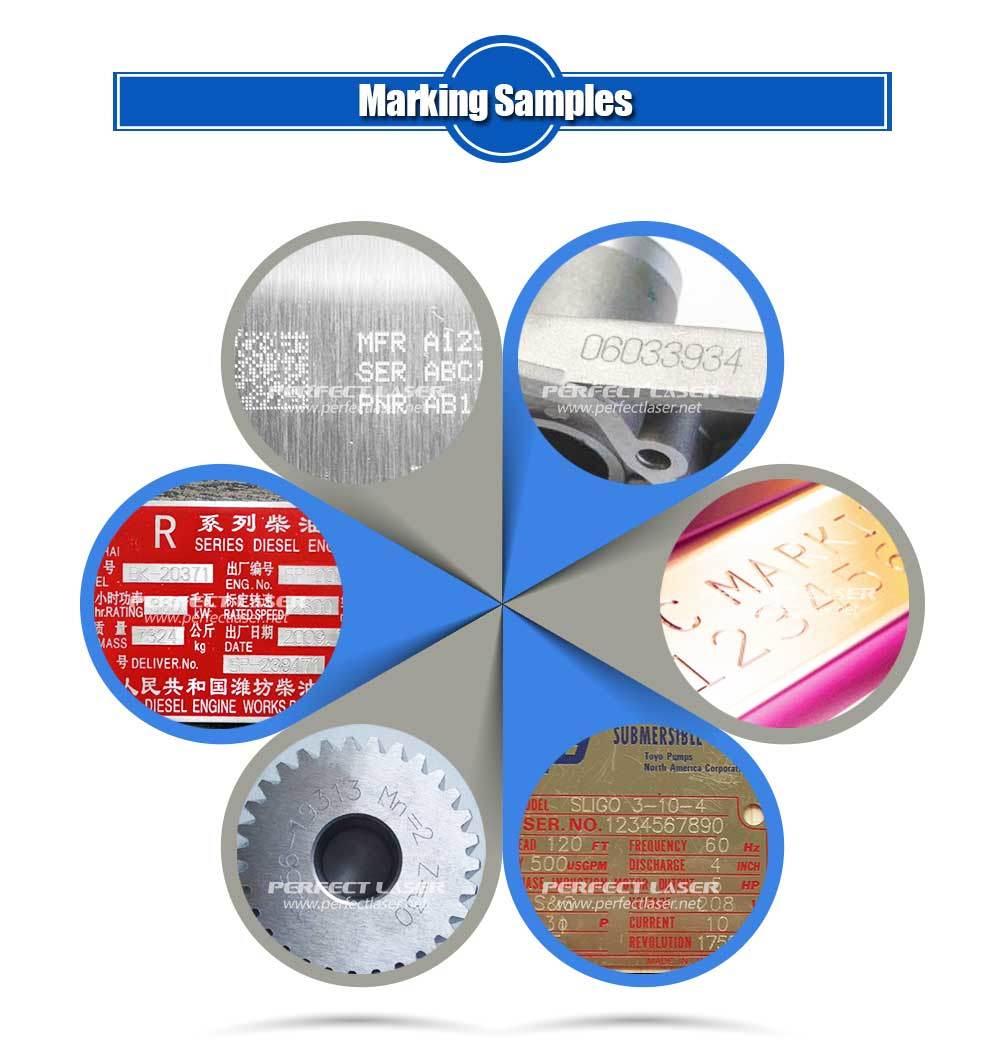

PEFECT DOT peen marking machine is applicable for the fields of automobile, motorcycle, mechanism, aeronautical and space, electric apparatus and suitable for all kinds of metal and hard plastic marking on steel, such as stainless steel marking, mild steel plate marking, iron marking, aluminum marking, copper marking, brass marking, anodized and coated materials marking, hard plastic material marking, etc.

Standard Marking Scope:	150mm× 100mm / 200mm× 100mm
Optional Marking Scope:	300mm× 200mm / 400mm× 300mm
Marking Depth:	0.01~2mm
Marking Speed:	≤ 50mm/s (for characters height of 3mm / 3-4 numbers /second)
Lifting Range:	0-300 mm
Marking Accuracy:	0.01 mm
Pin Hardness:	HRC 73
Power Supply:	220V± 10%, 50HZ
Air Pressure:	0.2-0.6 Mpa
Machine Power:	≤ 400 W
Working Environment:	-5~40 centigrade
Weight:	60kgs
Measurement:	1.2 m 2

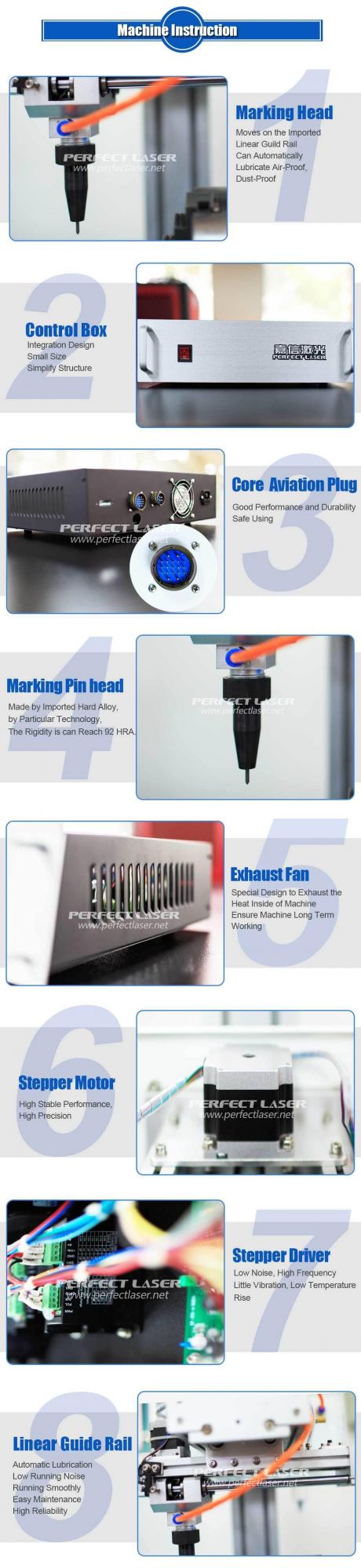

Machine details:





Perfect Laser Co., Ltd. (China)Contact: Emily / Sales DepartmentAdd: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200).
