Wire Drawing Machine From 6.5 to 2mm
Anping Shenghua Wire Mesh Products Factory- After-sales Service：All Life Technical Support
- Warranty：2 Years
- Diameter of The Spool：550mm
- Number of Pulling Pots：Four
- Drawing Range：6.5--2mm
- Speed of The Spool：27-168rpm
Base Info
- Model NO.：SH-15
- Output：10t,12hour
- Rotation Pattern：Gear Rotation
- Overall Dimensions (L*W*H)：6050*1685*2100mm
- Transport Package：No Packing
- Specification：ISO9001: 2000
- Trademark：shenghua
- Origin：China
- HS Code：45
- Production Capacity：2 Sets Per Month
Description

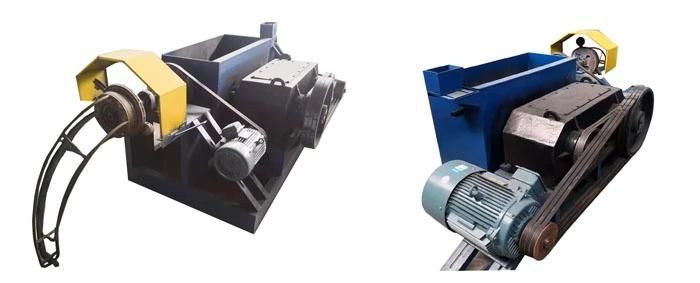

Wire drawing machine(Water tank type)
Main parameter as following:
| Dia. Of the speed lock wheel | F315mm |
| Quantity of dies | 9 |
| Dia. Of a feeding wire | 1.7mm |
| Dia. The output wires | 1.12× 1.12mm the minimum: 0.35× 0.35mm |
| Cumulative reduction | 85% |
| Mean reduction ratio | 20% |
| Drawing speed | 300-800m/min |
| Associated motor (frequency control) | YCT-160-4-11kw |
| External diemnsion(L*W*H) | 1500× 1000× 1000mm |
| Weight | 1500kg |
Packaging & ShippingPacking: waterproof materials or wooden case(if within spare parts),also as customized.
Shipping: Within 30 days after we receive the advance payment
Our Services
Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,
after this year can offer with the lowest cost.
For the machine we offer video and operation manufal , if need, we can offer engineer oversea install and training, all the charge and fee also the salary of engineer will pay for by the buyer, techinical support all machine life free.
