• Model NO.：Bunching Machine
• Specification：Customized
• Trademark：Reliable
• Origin：China

Basic Info.

Model NO. Bunching Machine Specification Customized Trademark Reliable Origin China

Product Description

Bunching machine

1.Description:
Full-automatic dual-twisting stranding machine, it is mainly used for stranding multi-stranded copper wires, tinned wires, enameled wires, copper-clad aluminum wires,
1000 type,1250 type can also be suitable for core wires bunching or small size core wires cabling
PLC+HMI system is adopted to control, and parameters such as preset lay pitch , lay direction and take-up tension are preset. The operation is simple and convenient

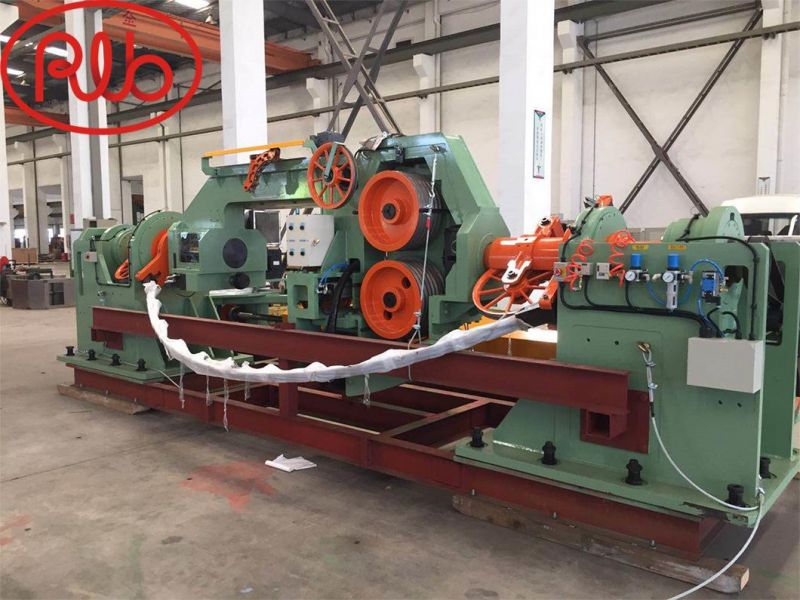

2.Equipment Pictures:










1. Technical Parameters:



Model	Max. Wire Dimension(Mm): (mm):	Brass Wire Diameter(mm): (mm):	(mm²)	(mm)	Stranded Range (mm): (mm):	Max. Rotate Speed (rpm)
315E	φ300×180	∅0.04 - 0.1	0.25	-	1.15 -11.24	3000
500A-C	φ500×320	∅0.08 - 0.32	2	-	5.34 - 40.02	3000
500E	φ500×320	∅0.06 - 0.26	1.5	-	2.86 - 44	3000
630C	φ630×475	∅0.23 - 0.64	1.5-6	-	26.19 - 75	1570
630P	φ630×475	∅0.15-0.64	1.5-5	-	15.54-73.89	2200
800	φ800×600	∅0.25 -0.8	2.5-16	-	34.56-181.76	1200
1000	φ1000×750	∅0.4- 1.5	4-20	≤∅12	34.55 - 181.76	800
1250	φ1250×950	∅1.2-3.2	70	≤∅22	40-500	650

4.Layout:


5.Application Demonstration:
 Different pay-off devices are selected according to the type of bundling machine and pay-off coil;
