• Coating：Powder Coating
• Substrate：Steel
• Certification：CE, ISO
• Condition：New
• Name：Powder Coating Booth for Small Workpiece
• Size：W2500mm*H1500mm*D1000mm
• Powder Recovery System：Filter Cartridge for The Booth
• Filters Qty：5sets
• Solenoid Valves：5pieces
• Exhaust Fan：1set
• Fan Power：3kw
• Lights：1set
• Control Box：English,Chinese Panel, Other Languages for Option
• Drawings：Available
• User Manual：Available
• Installation Drawings：Available
• Voltage：380V,3f&220V,1f@50Hz, Others for Option
• Shipment：Assembled for Easy Transport.
• Control：Automatic
• Transport Package：Standard Package for Sea Transport
• Specification：8cbm for LCL
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100sets Per Month
• Package size per unit product：300.00cm * 150.00cm * 200.00cm
• Gross weight per unit product：1000.000kg

Basic Info.

Coating Powder Coating Substrate Steel Certification CE, ISO Condition New Name Powder Coating Booth for Small Workpiece Size W2500mm*H1500mm*D1000mm Powder Recovery System Filter Cartridge for The Booth Filters Qty 5sets Solenoid Valves 5pieces Exhaust Fan 1set Fan Power 3kw Lights 1set Control Box English/Chinese Panel, Other Languages for Option Drawings Available User Manual Available Installation Drawings Available Voltage 380V/3f&220V/1f@50Hz, Others for Option Shipment Assembled for Easy Transport. Control Automatic Transport Package Standard Package for Sea Transport Specification 8cbm for LCL Trademark Hongyuan Origin Shandong, China Production Capacity 100sets Per Month

Packaging & Delivery

Package size per unit product 300.00cm * 150.00cm * 200.00cm Gross weight per unit product 1000.000kg

Product Description

Introduction of the powder coating spray technology
Powder coating is a type of coating that is applied as a free-flowing, dry powder. The main difference between a conventional liquid paint and a powder coating is that the powder coating does not require a solvent to keep the binder and filler parts in a liquid suspension form. The coating is typically applied electrostatically and is then cured under heat to allow it to flow and form a "skin". The powder may be a thermoplastic or a thermoset polymer. It is usually used to create a hard finish that is tougher than conventional paint. Powder coating is mainly used for coating of metals, such as household appliances, aluminum extrusions, drum hardware and automobile and bicycle parts.

Specification of the Electrostatic powder coating application spray cabin HY-PBM2500

Model	HY-PBM2500
Booth Type	Closed
Operator dimensions	2500width*500depth*1500mmHeight
Overall dimensions	2500width*1500depth*2400mmHeight
Cabin Material	galvanized steel, powder coated on the surface.
Weight	720kg
Power supply	Electric
Nominal power	3kw
Voltage	220/380V
Frequency	50-60Hz
Filters	Polyester
Filters count	5(325*600/325*900)
Filters hang type	easy for change
Filter cleaning system	Pneumatic
Type	Manual
Warranty	12 months

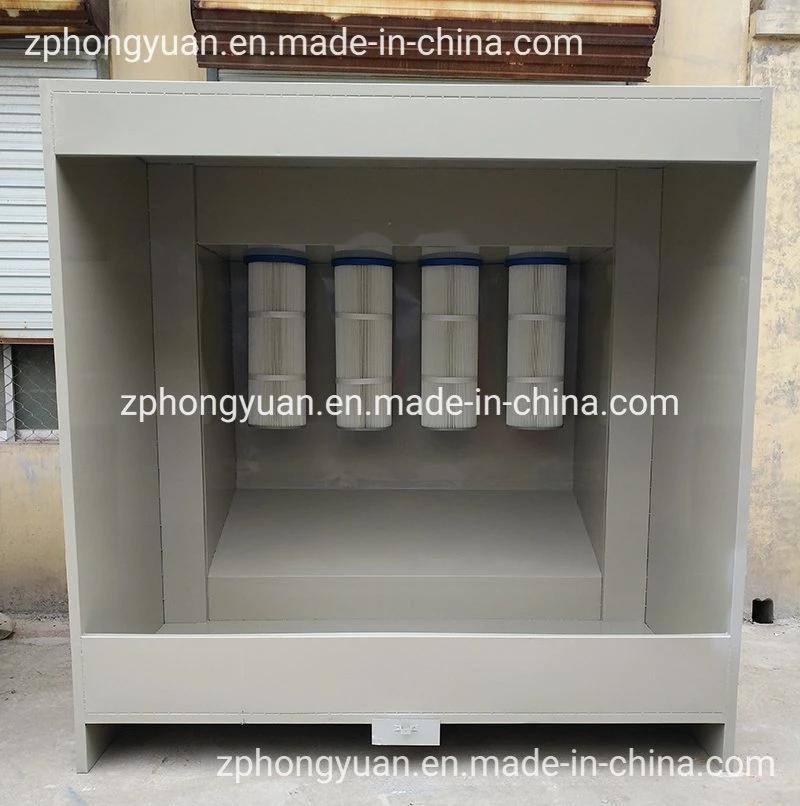

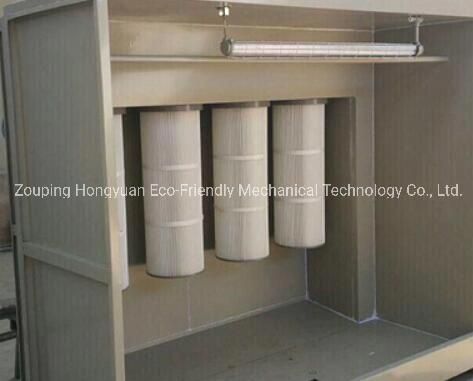

Details show of the Electrostatic powder coating application spray cabin HY-PBM2500

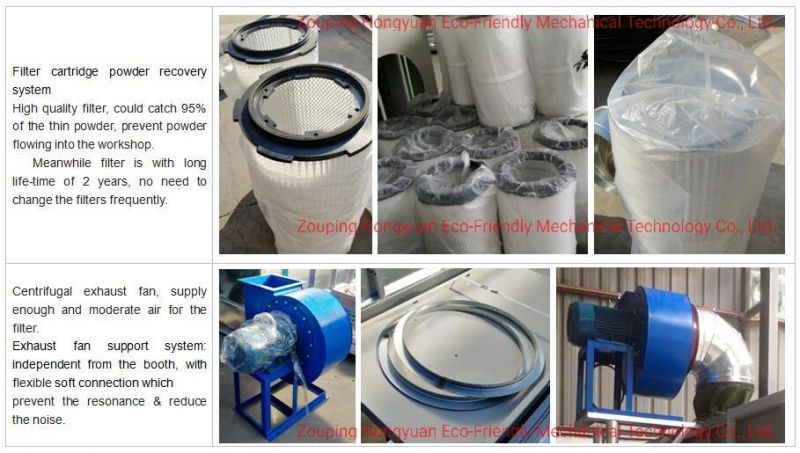

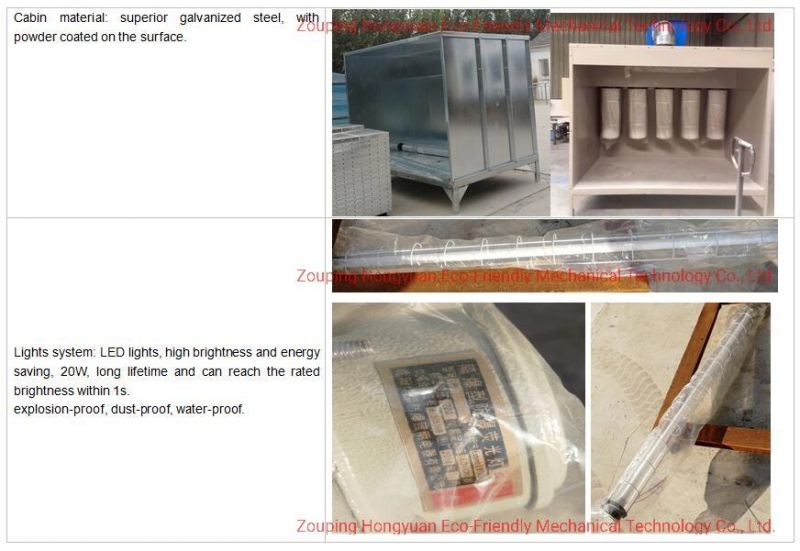

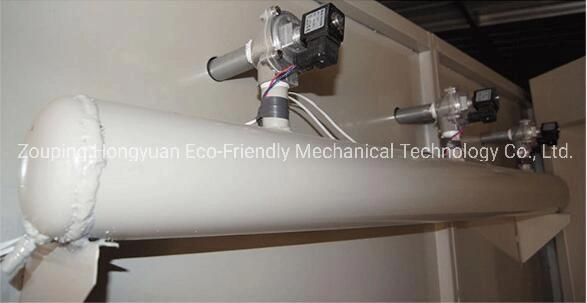

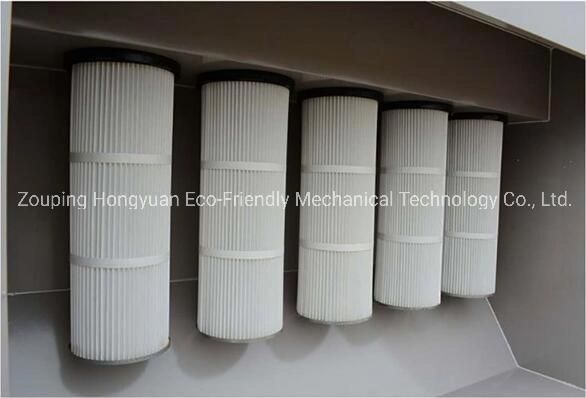

Parts show of the Electrostatic powder coating application spray cabin HY-PBM2500

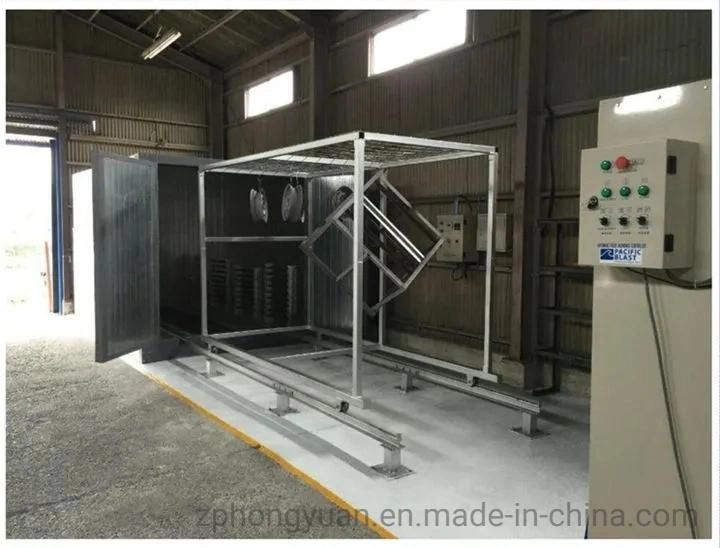

Production area and equipment for Electrostatic powder coating application spray cabin HY-PBM2500
Package Show of Electrostatic powder coating application spray cabin HY-PBM2500


Certificate of our product and company


Our Team is serving you at any time
Send us inquiry about Electrostatic powder coating application spray cabin HY-PBM2500
