• Model NO.：COLO-04548
• Condition：New
• Name：Lab Testing Powder Coating Package
• Application：Any Metal Surface
• Voltage：220V,110V
• Frequency：50-60Hz
• Max Voltage：100kv
• Packaging：Wooden Case,Carton
• Delivery：1-3 Working Days
• Payment：100% in Advance
• Item：Powder Coating System for Sale
• Transport Package：Carton
• Specification：W*H*D
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：800sets,Year

Basic Info.

Model NO. COLO-04548 Condition New Name Lab Testing Powder Coating Package Application Any Metal Surface Voltage 220V/110V Frequency 50-60Hz Max Voltage 100kv Packaging Wooden Case/Carton Delivery 1-3 Working Days Payment 100% in Advance Item Powder Coating System for Sale Transport Package Carton Specification W*H*D Trademark COLO Origin China HS Code 8424899990 Production Capacity 800sets/Year

Product Description

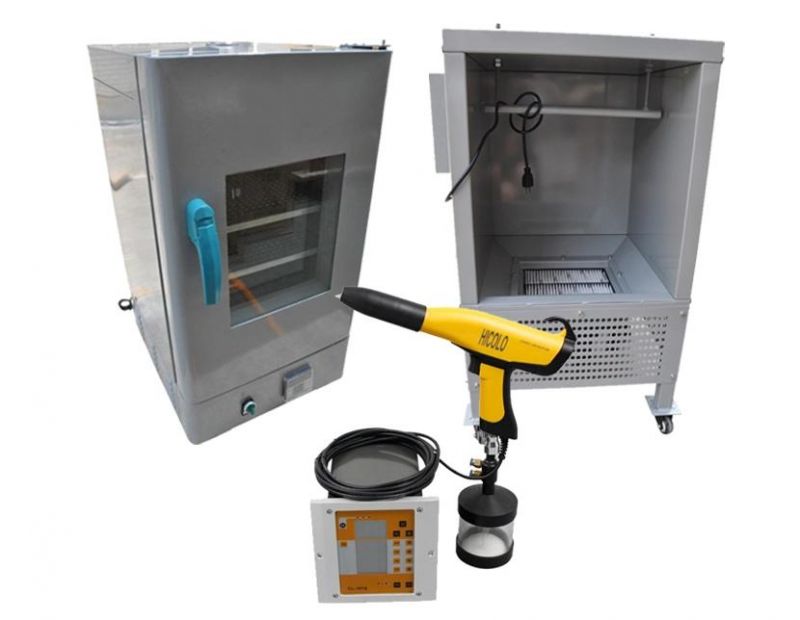

Lab Testing Powder Coating System

This lab testing powder coating system is a package including powder spray gun, powder coating booth and curing oven, ideal for small scale powder coating job, specially lab powder coating, powder sample testing, or small parts' powder coating.

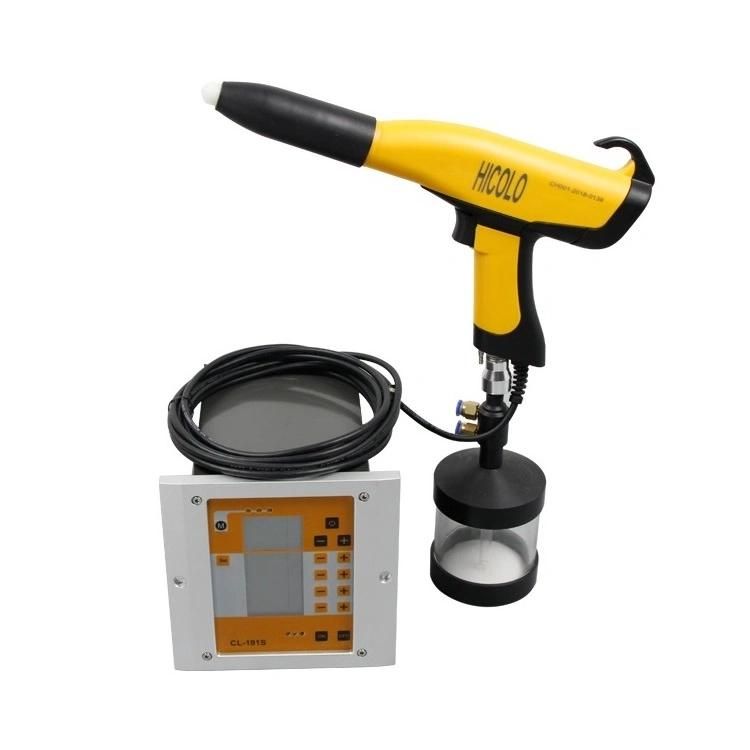

COLO-191S Powder Coating Gun

With digital valve control technology, offers precise powder feed and atomizing adjusting. The consistent and gentle powder output leads to uniform finish, gives optimal powder transfer efficiency and high quality coated surfaces.

This powder coating machine has 3 pre-set coating modes for flat parts, corners and re-coat jobs, it also allows to create and store 20 personalized programs. A powerful model suitable both beginners or experienced specialists.


Specifications of COLO-191S Powder Coating Gun


Voltage	AC 220V / 110V
Frequency	50-60Hz
Power	50W
Output Voltage	DC24V
Max Voltage	0-100 KV adjustable
Max Powder Injection	600 g/min
Max input air pressure	10 kg/cm
Optimum input-air pressure	6 kg/cm
Minimum input-air pressure	4 kg/cm
Maximum water vapor content or compressed	1.4 g/Nm3
Maximum oil vapor content of compressed air	0.1 ppm
Maximum compressed -air consumption	13.2 m3/h
Temperature Range in Use	-10 ºC-50 ºC
Gun Weight	500g
Maximum Output Current	180μA
Polarity	negative

Lab Testing Powder Coating Spray Booth

This lab powder coating booth with the design that filter and powerful fan is installed in the bottom of booth, saving-space structure make this booth more economical. Booth body is made of powder coated steel board, sturdy and durable, which has a long lifespan.



Specifications of Lab Testing Powder Coating Spray Booth


Model	COLO-S-04548-T
Operating Dimensions	Width400*Depth480*Heght500 mm
Overall Dimensions	Width535*Depth560*Heght950 mm
Power Supply	Electric
Nominal Power	50W
Voltage	220V/380V
Frequency	50-60Hz
Filters Count	1
Filters Hang Type	easy for change
Filter Cleaning System	Pneumatic

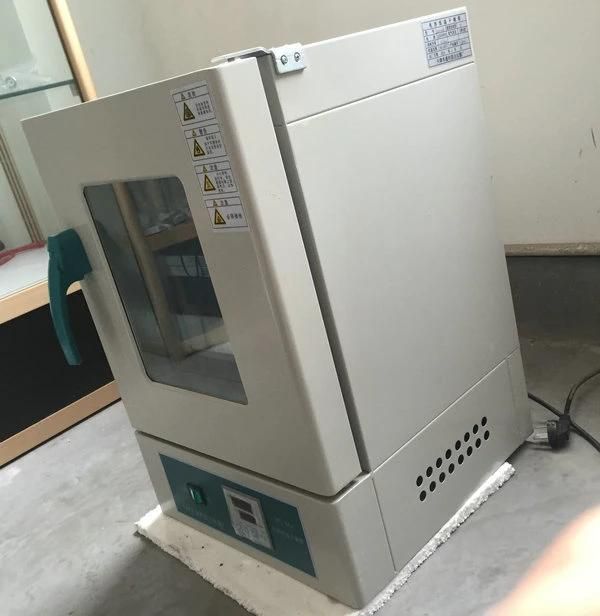

Lab Testing Powder Coating Oven

This oven is a mini type powder coating oven for small batch and testing purposes. Compact structure occupies a little space features very practical. Designed with a high-precision controller to set accurate temperature and time, and a panel that displays current value, gives a superior curing effect. This oven has a built-in automatically interrupt system, if oven is over-heated, it will automatic cut off power immediately to ensure users' safety.




Specifications of Lab Testing Powder Coating Oven


Model	COLO-4355-T
Operating Dimension	Width450*Height500*Depth350mm
Overall Dimension	Width500*Height710*Depth500mm
Power Supply	Electric, 3kw
Voltage	110V / 220V
Frequency	50-60 Hz
Warm-up Time	10-15min (180°C)
Temperature Stability	<± 1°C
Temperature Max.	250°C
