Electric Powder Coating Oven Price
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：12 Moths
- Warranty：12 Months
- Type：Powder Coating Oven
- Coating：Powder Coating
- Substrate：Steel
- Certification：CE, ISO, RoHS
Base Info
- Model NO.：COLO-1864
- Condition：New
- Item：Electric Powder Coating Oven for Sale
- Work Size：1500X1500X1500mm
- Power Supply：Electric
- Warm-up Time：15-30 Minutes
- Temperature：180-250′c
- Name：Electric Powder Coating Oven for Sale
- Voltage：220,380V,400V 3phase as Your Industrial Standards
- Delivery：10 Working Days
- Product：Electric Powder Coating Oven for Sale
- Transport Package：Wooden Cases
- Specification：CE
- Trademark：COLO
- Origin：China
- HS Code：8424899990
- Production Capacity：50sest,Month
Description

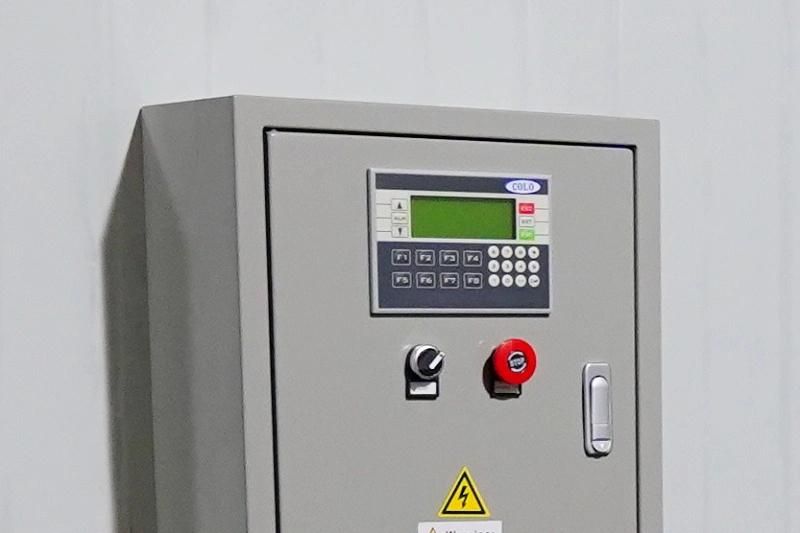

A simple PLC controllor provides high precision heating process, it offers all the features you need.
The display allows you to set the desired temperature and heating time accurately, and turn on / off the fan. Once the curing time arrive, the oven will stop heating automatically.
The control panel also includes a variety of safety devices, including alarm light and emergency stop buttons, etc.

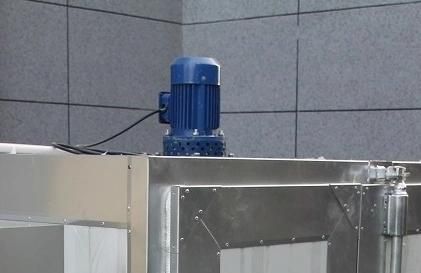

Bottom of this electric powder coating oven is installed with electric heating tubes with great thermal conductivity to created hot air and rapidly raise temperature to the required curing, then circulation fan cycles the hot air and ensures parts to be heated evenly.
Insulation material is 100mm thick rockwool board, density 120kgs/cbm, with heat-resistent galvanized innerwall and durable color steel outwall. It is an optimal design for minimum temperature dropping.

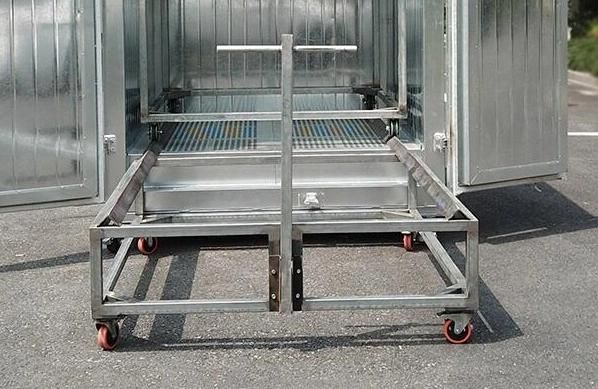

Supply with trolley and frames for easy carrying and loading even heavy elements. The transporting system will not pollute the inner chamber and ensure the purity of parts.
Specifications of Electric Powder Coating Oven
| Model | COLO-1864 |
| Worksize dimensions | 1600width x 1800 height x 1400 depth |
| Overall dimensions | 1900 width x 2200 height x 1700 depth |
| Power supply | Electric/ 12kw |
| Voltage/Frequency | 380V/220v(50-60hz) |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max. | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.75kw |
| Circulation/ Air flow | Vertical ,Variable through holes on the walls |
| Transportation | Trolley |
| Warranty | 12 months |
Applications of Powder Coating Curing Oven
Why choose us ?
1.More than 10 years manufacturing experience in electrostatic powder coating equipment
2.Provide one-stop service: reseach & development, design, production, worldwide marketing, engineer oversea installation, after-sale service.
3.Customed as you want.
4.Competitive price: we are factory. Design, production ,installation all by ourself-saving cost.
5.One year of warranty period and life long technical support.
6.Market share in Global: about 90%, is a leading factory in this filed.
